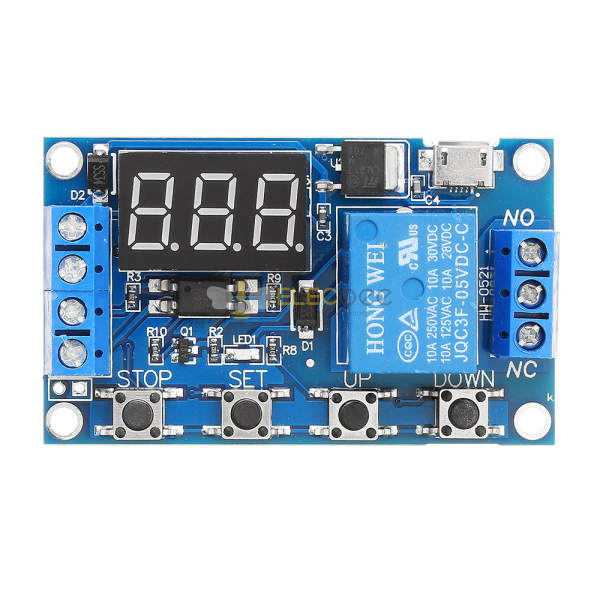

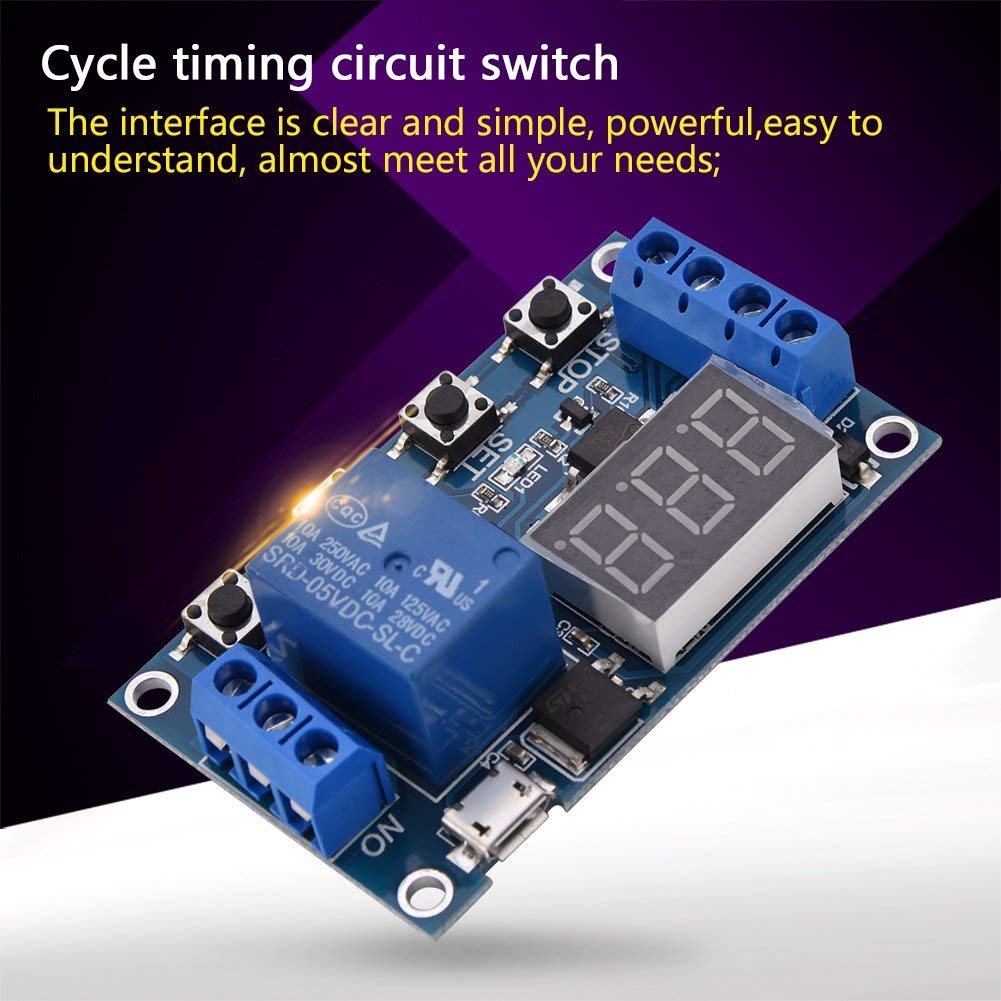

Elecbee 1-Channel Timer Relay Module 6-30V Digital Delay Switch with Micro USB 5V Optocoupler Isolation Loop Cycle Timing 0.1s-999min 10A AC/DC

Name: Elecbee 1-Channel Timer Relay Module 6-30V Digital Delay Switch with Micro USB 5V Optocoupler Isolation Loop Cycle Timing 0.1s-999min 10A AC/DC
Brand: Elecbee
SKU: EB0047237
Price: 1.79 USD
Availability: InStock

SKU: EB0047237

Favorites

Key Features

Universal Power Versatility: Supports a wide 6V-30V DC input or a convenient 5.0V Micro USB power supply for flexible integration in various projects.

Industrial-Grade Isolation: Equipped with high-performance optocoupler isolation to enhance anti-interference capabilities and protect your control circuits.

Precision Timing Control: Offers a continuously adjustable delay range from 0.1 seconds to 999 minutes with independent OP, CL, and LOP parameters.

Emergency Stop Safety: Features a dedicated "STOP" button for instant relay disconnection and reverse polarity protection to prevent board damage.

Non-Volatile Memory: Automatically saves all user-defined parameters during power loss, ensuring seamless operation without manual reconfiguration.

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

Show Similar Products >

Description

Streamline your automation workflows with the Elecbee Multifunction Timer Relay Module. Designed to solve the complexity of intermittent power control, this module eliminates the need for complex PLC programming in simple loop timing or delay-off applications. Whether you are managing industrial equipment cycles, home automation lighting, or battery discharge testing, this digital timer switch provides a reliable, plug-and-play solution with a clear interface that any developer can master instantly.

This industrial-grade circuit board is engineered for high-cycle reliability and precision. The technical specifications include:

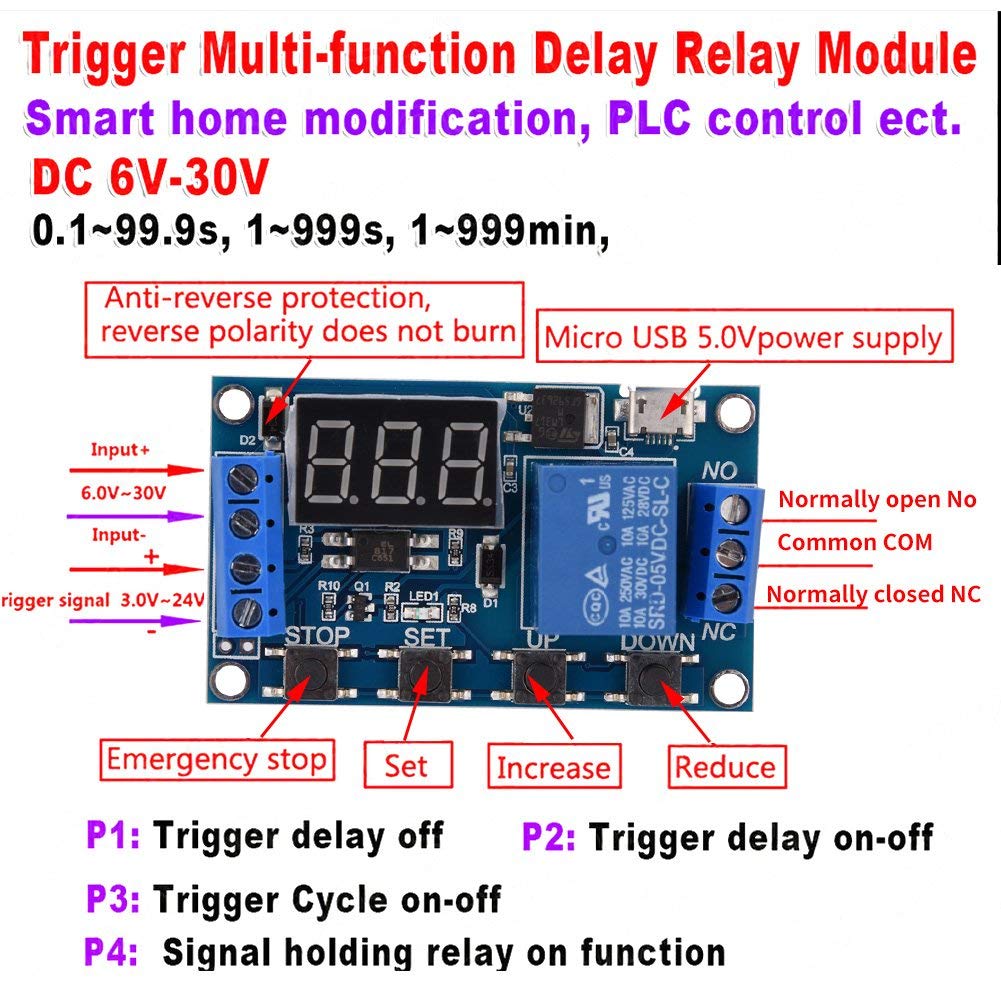

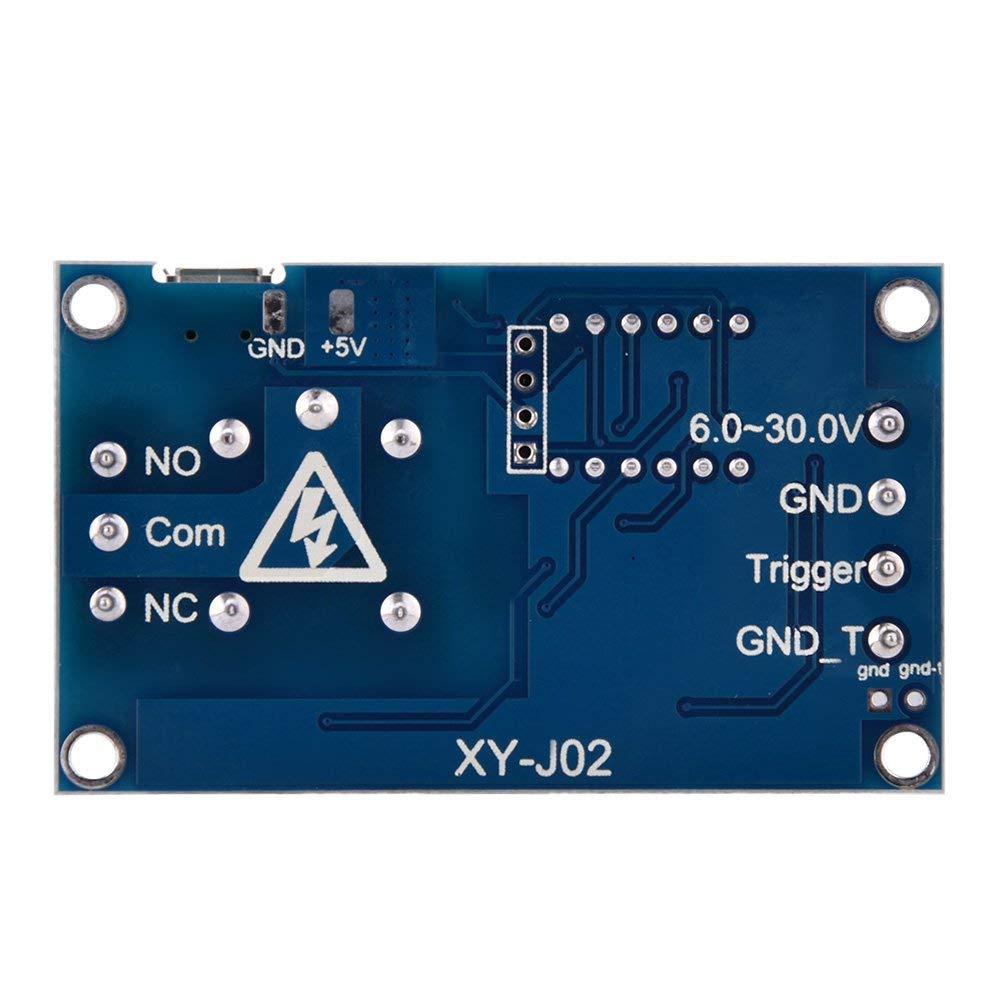

Trigger Source: High-level trigger (3.0V–24V) with isolated signal ground for noise reduction.

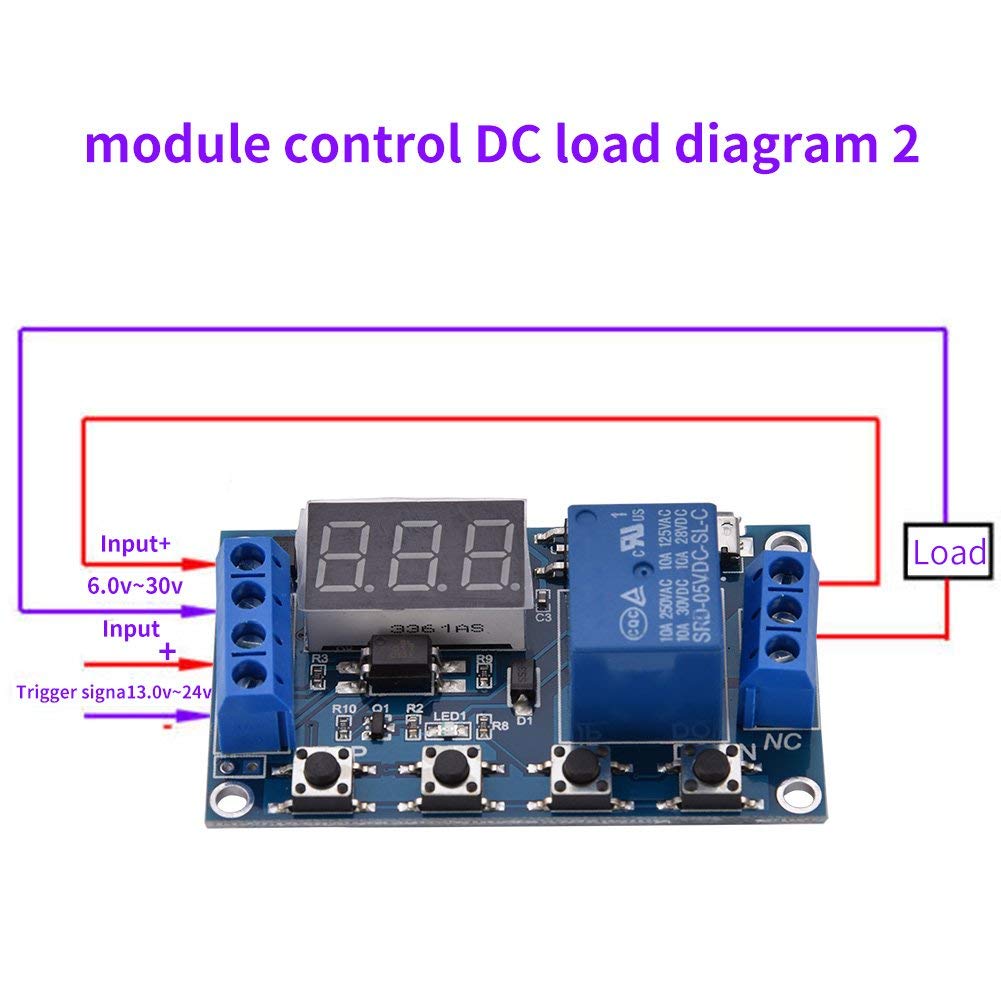

Output Capacity: Controls DC 30V/5A or AC 220V/5A devices.
Operating Modes: Supports P1 (Trigger Delay), P2 (Delayed Start), P3 (Cycle/Loop), and P4 (Signal Hold).
Power Efficiency: Features an automatic sleep mode that turns off the display after 5 minutes of inactivity to conserve energy.

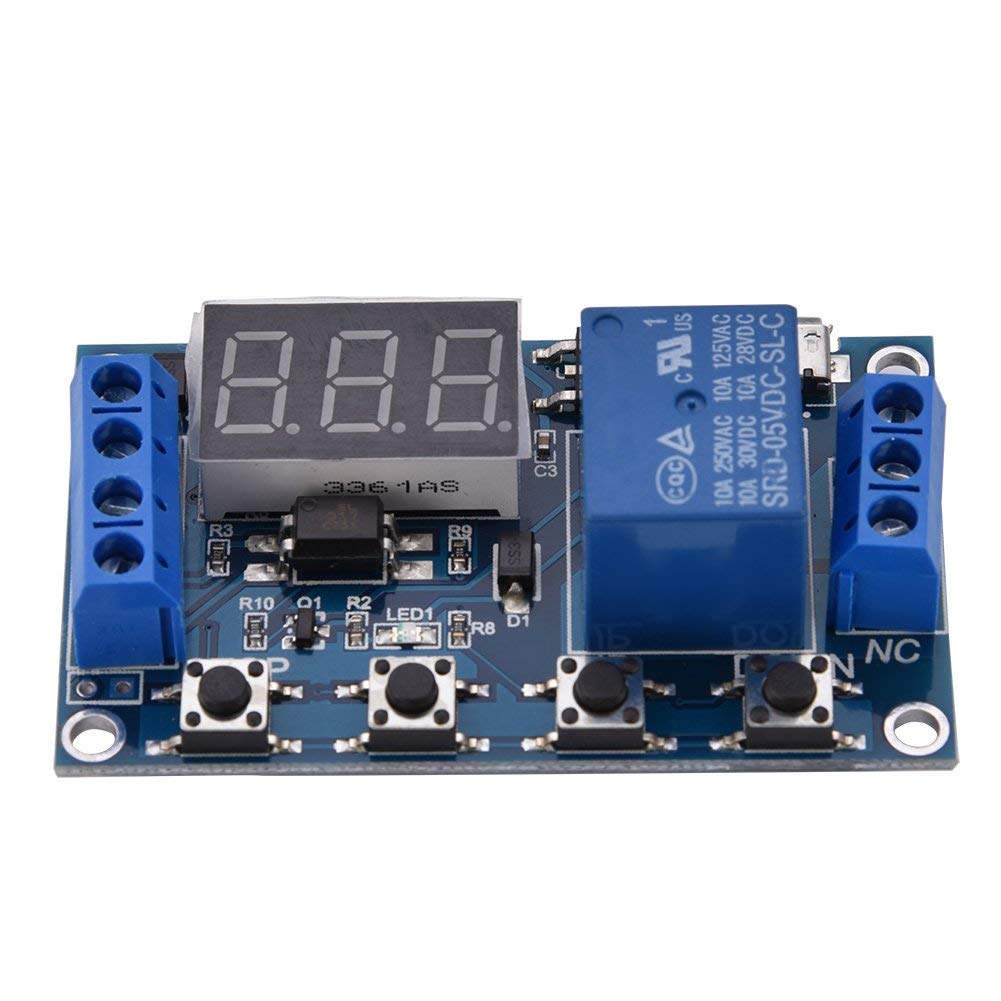

The module features a high-visibility 3-digit LED display and a robust passive contact output, acting as a functional "dry contact" switch for your wiring. Its wide operating temperature range of -40°C to 85°C and vibration-resistant screw terminals make it the professional choice for field deployments. For long-distance accuracy, the 120-ohm matching resistor can be enabled via the R0 shorting pads, ensuring your RS485 communication remains clean and synchronized.

Specifications:

Material: Electrical components

Color: See pictures

Size: 6.3x3.8x1.5cm

Operating voltage: 6-30V

Time interval:0.1 s (minimum) ~ 999 min (maximum) continuously adjustable

Operation Mode:

P1: After triggered signal, power relay on time OP, then turn off; within the OP period following operation.

1) P1.1: Signal being triggered again is not effective

2) P1.2: Signal being triggered again, start time again

3) P1.3: Signal being triggered again, reset; disconnect relay, stop timing

P2: Giving the trigger signal, the time after shutdown relay CL power relay OP time; then timing, turn off the relay

P3.1: Give the trigger signal after the power relay on time OP, CL shutdown time relay; then operating cycle above cycle gaive signal again, shutdown relay stop timing; cycle times (LOP) can be set

P3.2: After connecting. no need to trigger signal, power relay on time OP, CL shutdown time relay; then the operating cycle above timea cycle (LOP) can be set

Q4: Keeping the function of the signal; if there is no trigger signal, the time will be canceled, relay stay connected; when the signal disappears, timing OP turn off the relay; over time, if no signal again, the time is cleared

how to choose the time interval:

parameter Introduction: OP power over time, turn off time CL, LOP cycle times (1-999 times, "---" is unlimited cycle)

1. In the selection of parameter set interface mode, and press the STOP button to select the time.

(1)xxx. if the decimal point is in some place, the time interval is s-1 999 s

(2)xx. x is decimal place is ten, the time interval is 0.1 s 99.9 s-

(3)x. x. x is the decimal point are all on, the time interval is 1 min-999 min

1 x Cycle Timing Circuit Switch Relay
