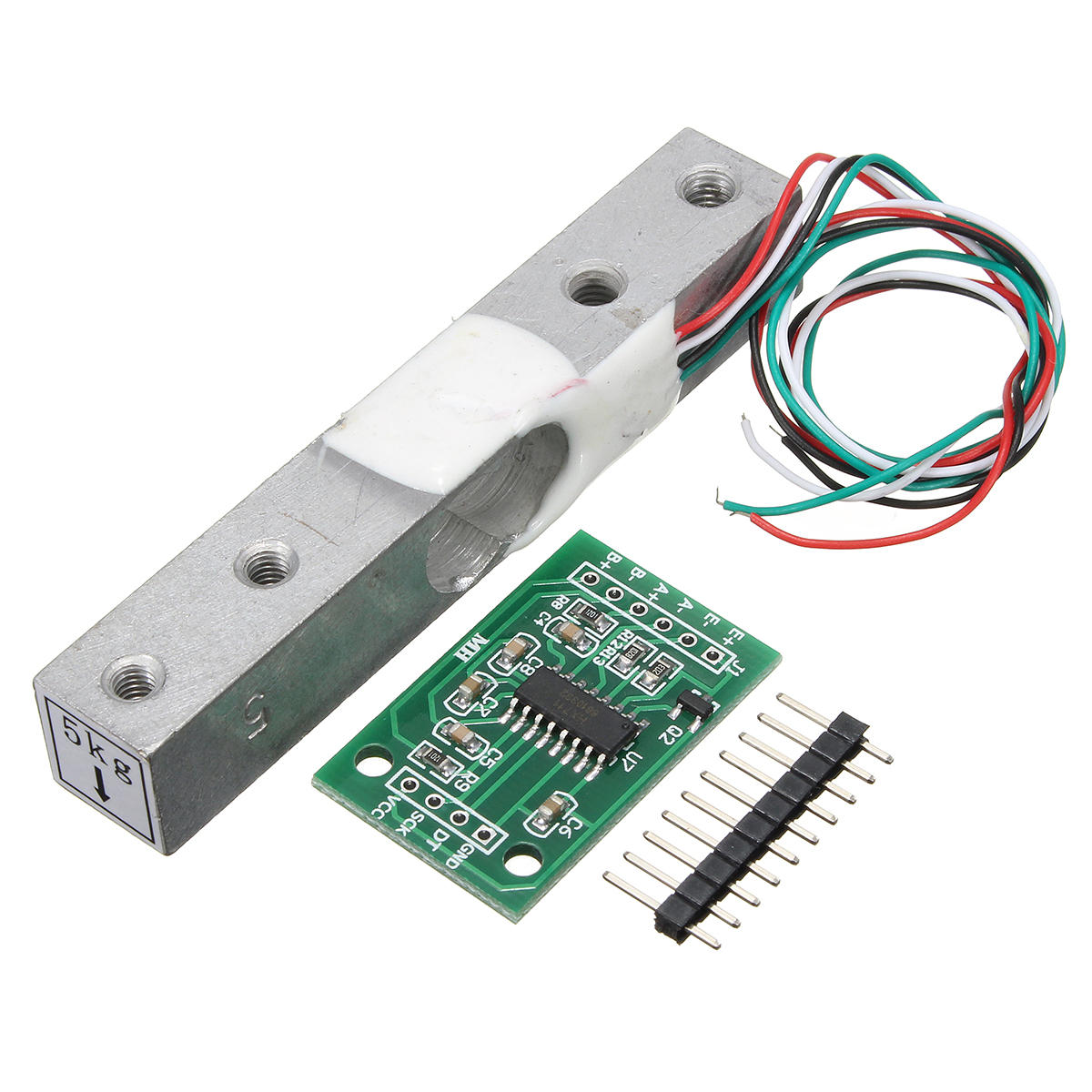

Elecbee 5Kg load cell weight sensor with HX711 24 bit ADC amplifier module supports high-precision weight measurement and force sensing for electronic weighing systems, industrial automation, embedded development, and smart sensor applications. The module converts low-level analog load cell signals into stable digital output for accurate measurement and monitoring systems.

Technical Specifications

• Brand: Elecbee
• Product Type: Load Cell Weight Sensor with HX711 ADC Module
• Load Capacity: 5Kg
• Signal Processing Chip: HX711 24 Bit ADC
• Sensitivity: 1.0±0.1mV/V
• Comprehensive Error: 0.05% F.S
• Non-Linearity: 0.05% F.S
• Repeatability: 0.05% F.S
• Hysteresis: 0.05% F.S
• Creep: 0.05% F.S/3min
• Input Resistance: 1000±50Ω
• Output Resistance: 1000±50Ω
• Recommended Excitation Voltage: 3V to 12V
• Working Temperature Range: -10°C to +50°C
• Overload Capacity: 150% F.S
• Insulation Resistance: ≥2000MΩ (100VDC)

Sensor Signal Output

The load cell outputs analog voltage signals proportional to applied force or weight. When powered with DC5V excitation voltage, the full-scale output signal range is 0-5mV. Increasing applied load produces corresponding voltage changes for accurate digital weight measurement.

Wiring Information

• Red Wire: Excitation Voltage Positive
• Black Wire: Excitation Voltage Negative
• Green Wire: Signal Output Positive
• White Wire: Signal Output Negative

Application Scenarios

This HX711 load cell module is suitable for electronic scales, weight measurement systems, industrial automation equipment, Arduino projects, Raspberry Pi applications, embedded sensing systems, force detection devices, smart weighing platforms, IoT monitoring equipment, and DIY electronics development.

Reliable Measurement Performance

The module combines precision load cell sensing technology with HX711 24 bit analog-to-digital conversion to support stable low-noise signal acquisition and accurate digital weight measurement for industrial and embedded electronic systems.

Compatibility Information

Compatible with Arduino, Raspberry Pi, ESP32, STM32, embedded development boards, industrial control systems, electronic weighing devices, smart sensing equipment, and automation monitoring applications.
