Elecbee 50M-6000Mhz SBB5089 20dB Gain RF Amplifier Board

SKU: 1725057

Favorites

Key Features

Features:

High Performance & Wideband Flat Gain – Delivers consistent 1.1 dB gain up to 4GHz, ideal for cellular, PCS, GSM, UMTS, and wireless data applications.
Exceptional Linearity & Power – Boasts P1dB of 20.4 dBm at 1950MHz, ensuring strong signal integrity for PA driver and RF amplification.
5V Direct Supply – No Dropping Resistor Needed – Simplifies design with a single 5V supply, reducing external components compared to typical Darlington amplifiers.
Robust ESD Protection – Class 1C (1000V ESD rating) ensures durability in demanding environments.
Thermally Optimized Design – Advanced thermal management and low thermal resistance enhance reliability under continuous operation.
Compact & Easy to Integrate – Internally matched to 50Ω, minimizing external parts for space-constrained applications like satellite terminals and instrumentation.
Stable Bias Over Temperature & Process Variations – Active bias network maintains consistent performance across varying conditions.

Specifications

Show Similar Products >

Attribute

Value

Model

SBB5089

Show Similar Products >

Description

Specification:

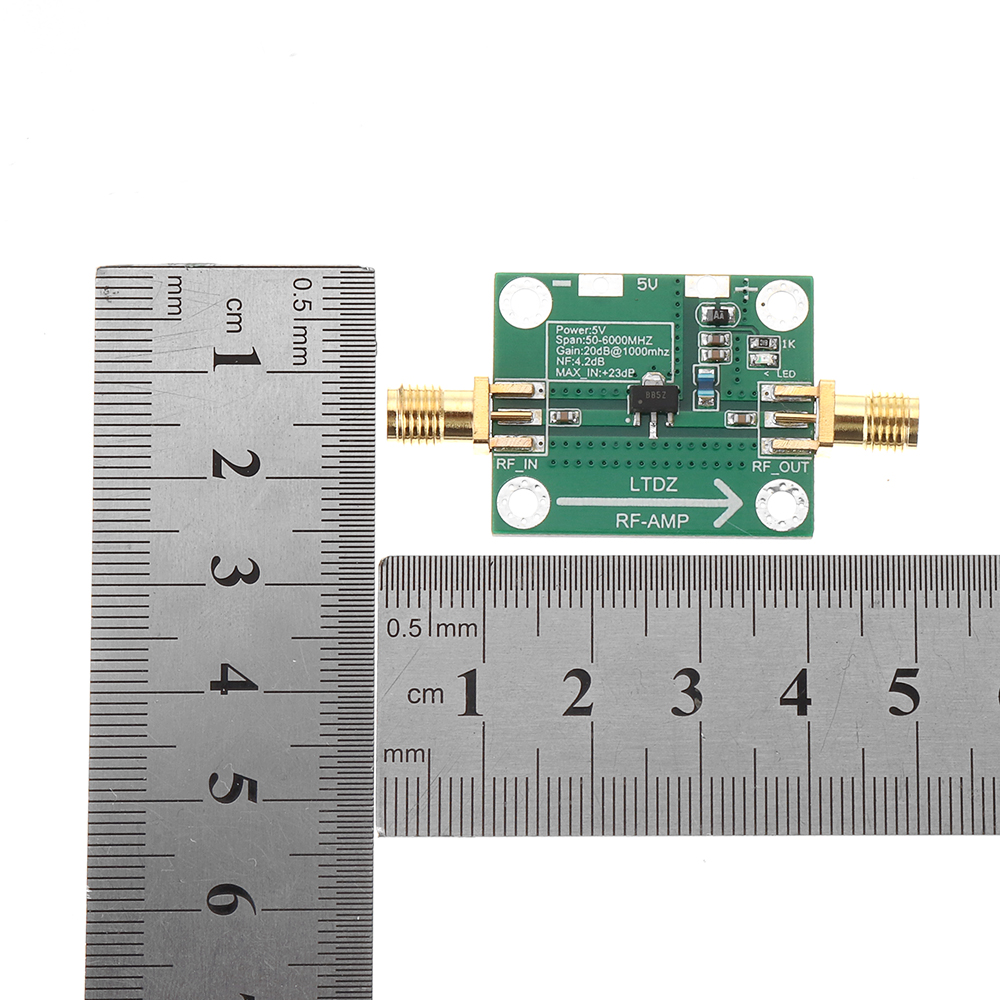

1. Size: 49mm*25mm*6.5mm

2. Weight: 6g

3. Working voltage 5v

4. Frequency range: 50Mhz-600Mhz

5. Typical gain: 20dB@1000Mhz

6. NF: 4.2dB

7. P1dB: +20.4dB

8. IP3: 38dBm

9. Maximum input power: +23dB

10. Input impedance: 50 ohms

11. Module related applications: weak RF signal amplifier, RF power amplifier pre-amplifier
