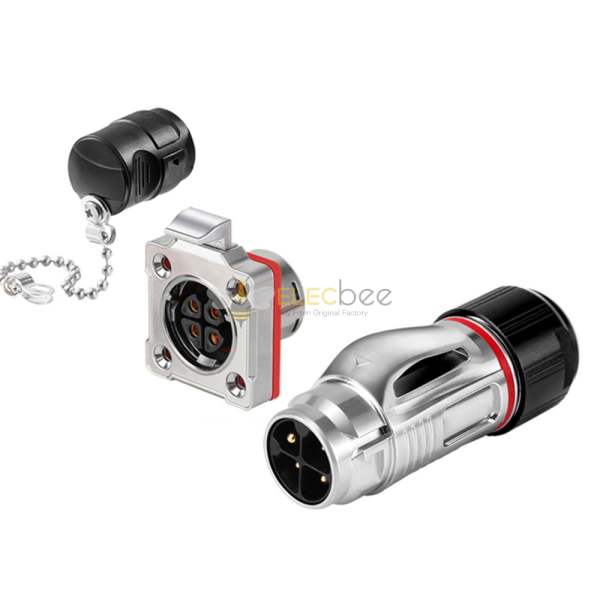

Elecbee 4 Pin Ip65 Waterproof Solder Copper Pin Connector Plug And Socket BD20
SKU: EB-045-0003
Favorites
Key Features
- The BD20 4-pin plug-and-receptacle connector set combines a circular industrial format with a bayonet coupling for repeatable connection and disconnection.
- Rated for 20A at 300VAC, it uses solder cup termination for 14–12 AWG conductors and is configured for plug and panel-mount receptacle arrangement.
- The zinc alloy shell, engineering-plastic insulation, and copper alloy contacts with a gold-plated finish provide a durable electrical interface, while the bayonet fastening system helps maintain a secure connection.
- With an IP68 ingress-protection rating and an operating temperature range of -40°C to +85°C, this waterproof circular connector is suitable for industrial equipment, outdoor electronics, and detachable power or signal connections.
Show More
In-Stock
Qty.
1
Unit Price
$ 15.94$ 18.75
Ext. Price
$ 15.94$ 18.75
$ 15.94$ 18.75
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Termination
Solder Cup
Contact Type
Male，Female Pin
Number of Positions
4 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Ingress Protection
IP68
Rated Current
20A
Rated Voltage
300VAC
Connector Series
BD20
Color
Silver
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
14AWG~12AWG
