Elecbee 4 Channel Wireless RF Remote Control Transmitter Receiver Module
SKU: EB0042436
Favorites
Datasheet
Specifications
Attribute
Value
Search
Wireless Capability
Wi-Fi
Wi‑Fi Standard
802.11B/G/N
Model
LIST2
Description
- Remote Control: YES
Precise details>>
Precise details:
Instructions: Click here to open
Specification:

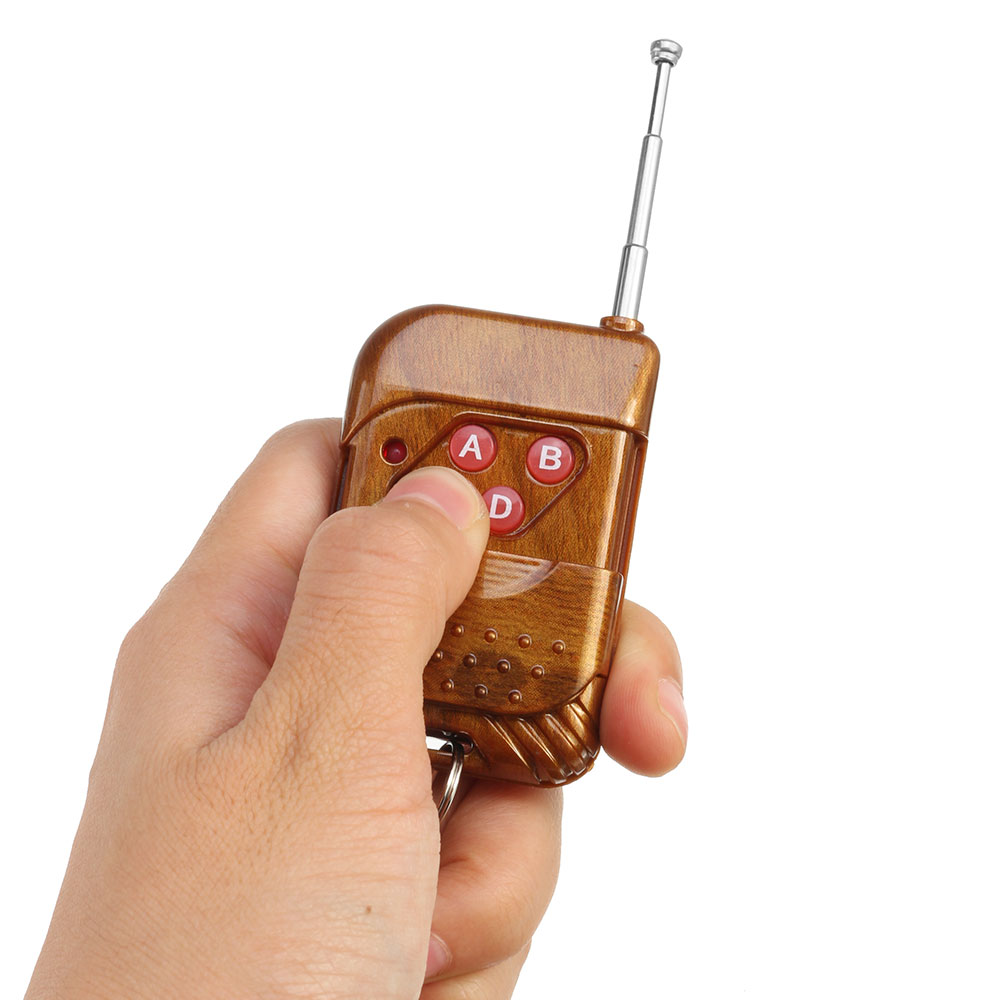

Remote control:
Operating voltage: DC 12V(27A / 12V battery x 1)
Operating current: 10mA at 12V
Radiated power: 10mW at 12V
Transmission distance: 50m - 100m (open field, the receiver sensitivity of -100dbm)
Transmitting frequency: 315MHZ
Modulation mode: ASK (Amplitude Modulation)
Encoder types: fixed code

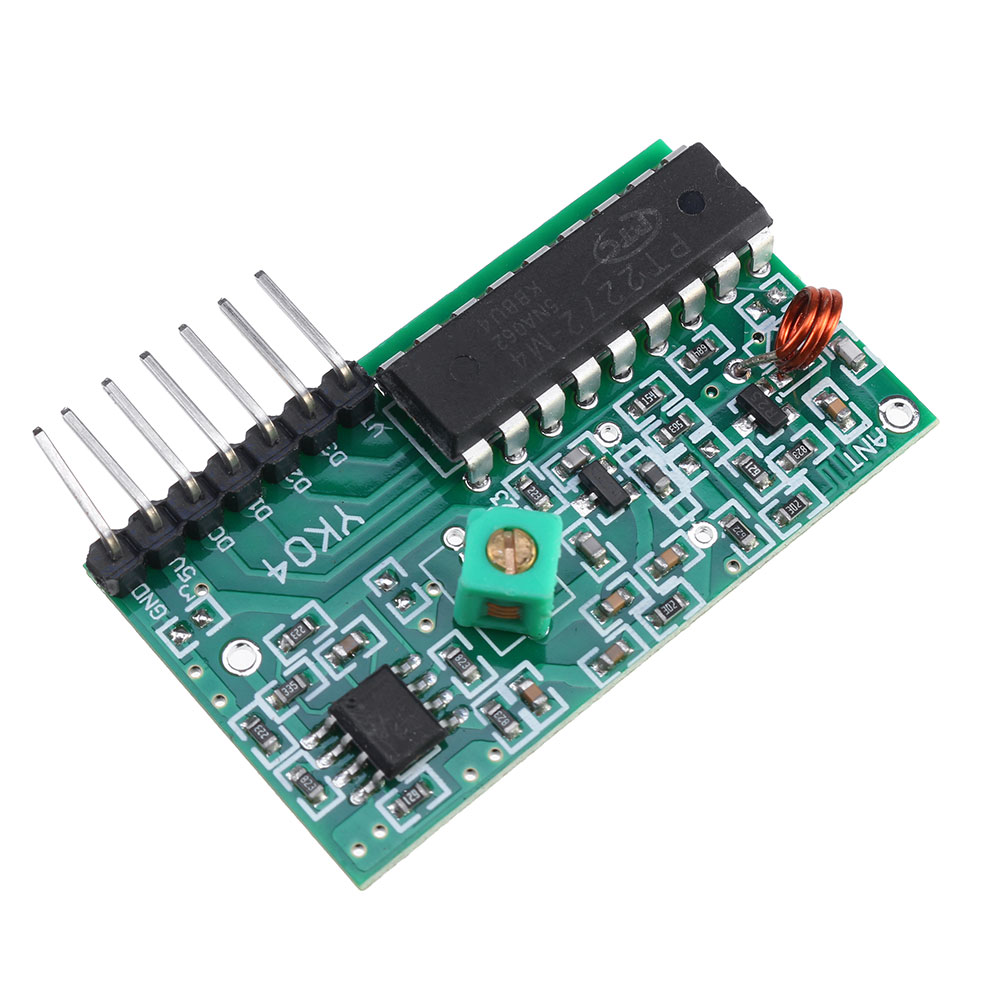

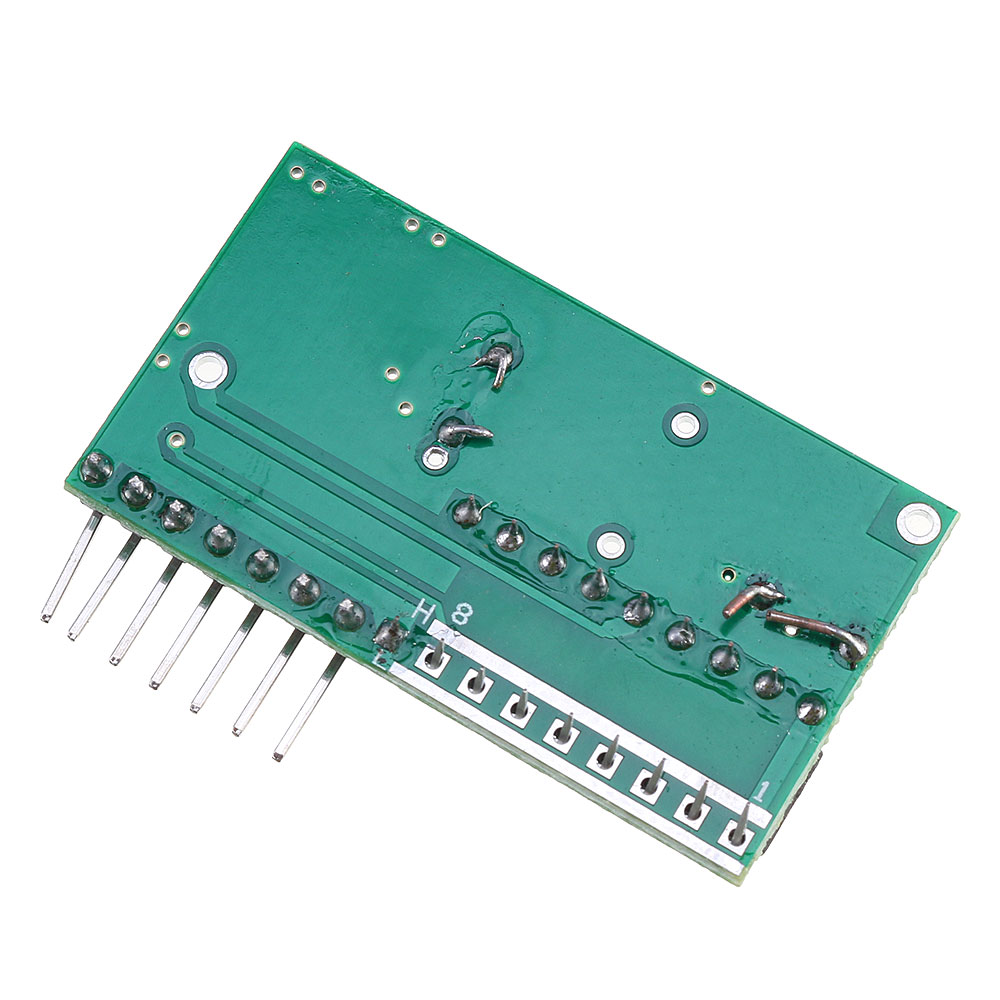

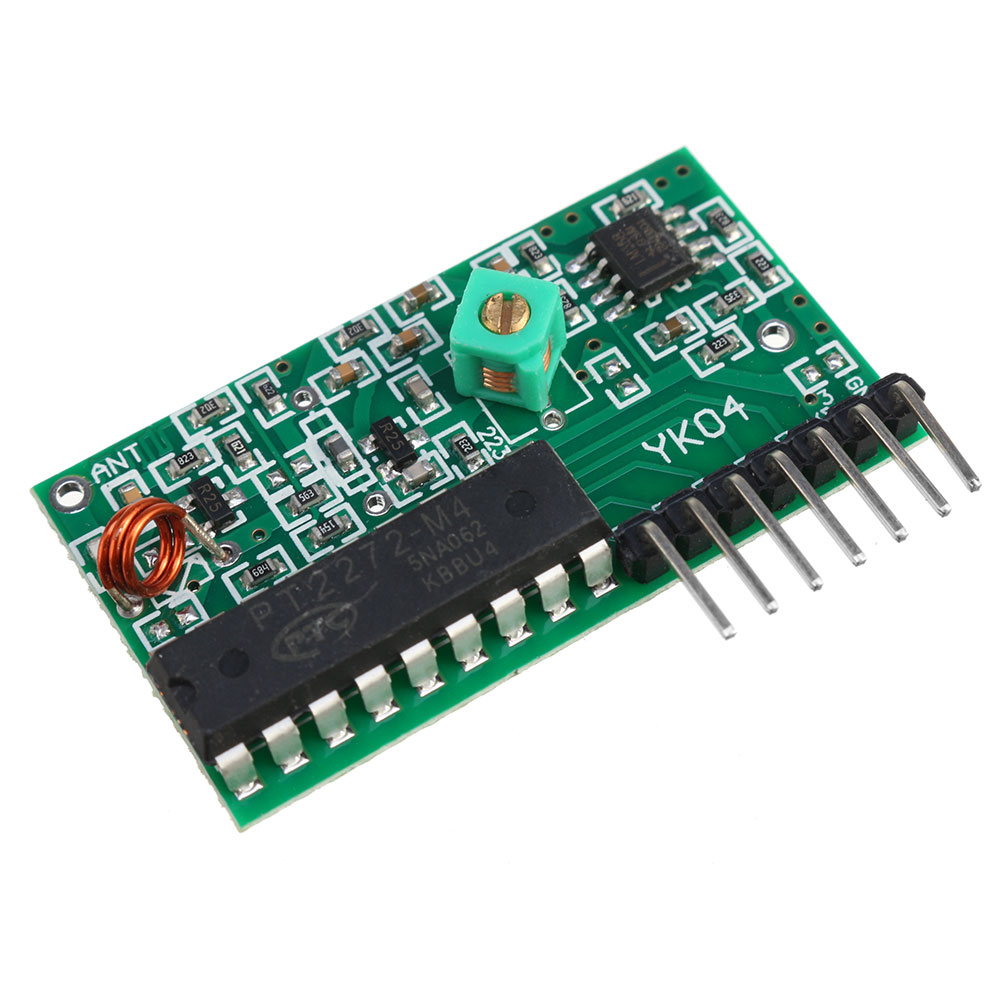

Decoding receiver board:
Operating voltage: DC 5V
Receiver sensitivity is -98dB
Leg 7 bits: VT, D3, D2, D1, D0, +5V and GND

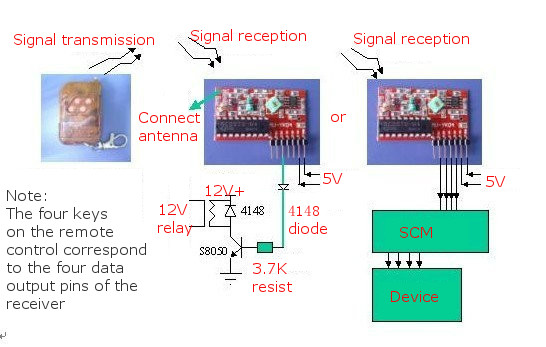

VT is a valid signal high output pin upon receiving a valid signal, the pin output high, may also drive the relay

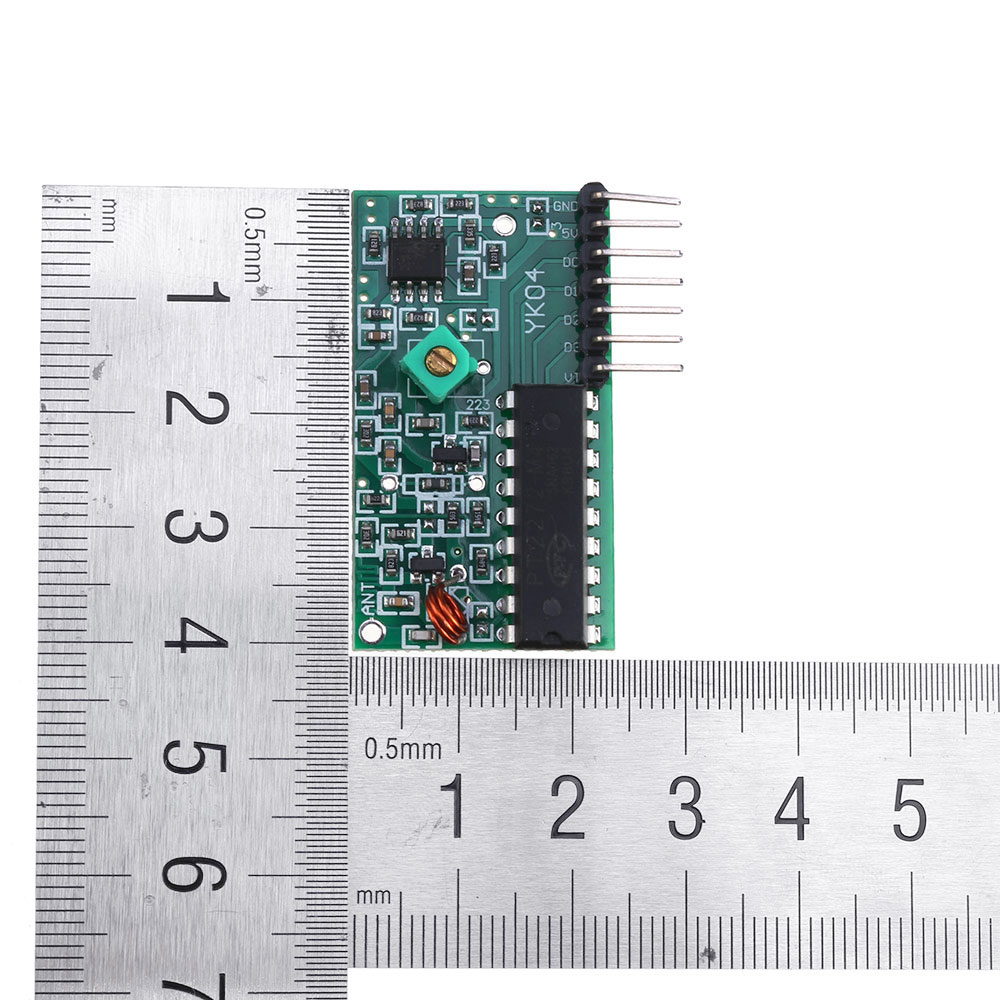

Size: 6.6 x 22 x 41mm
Note:

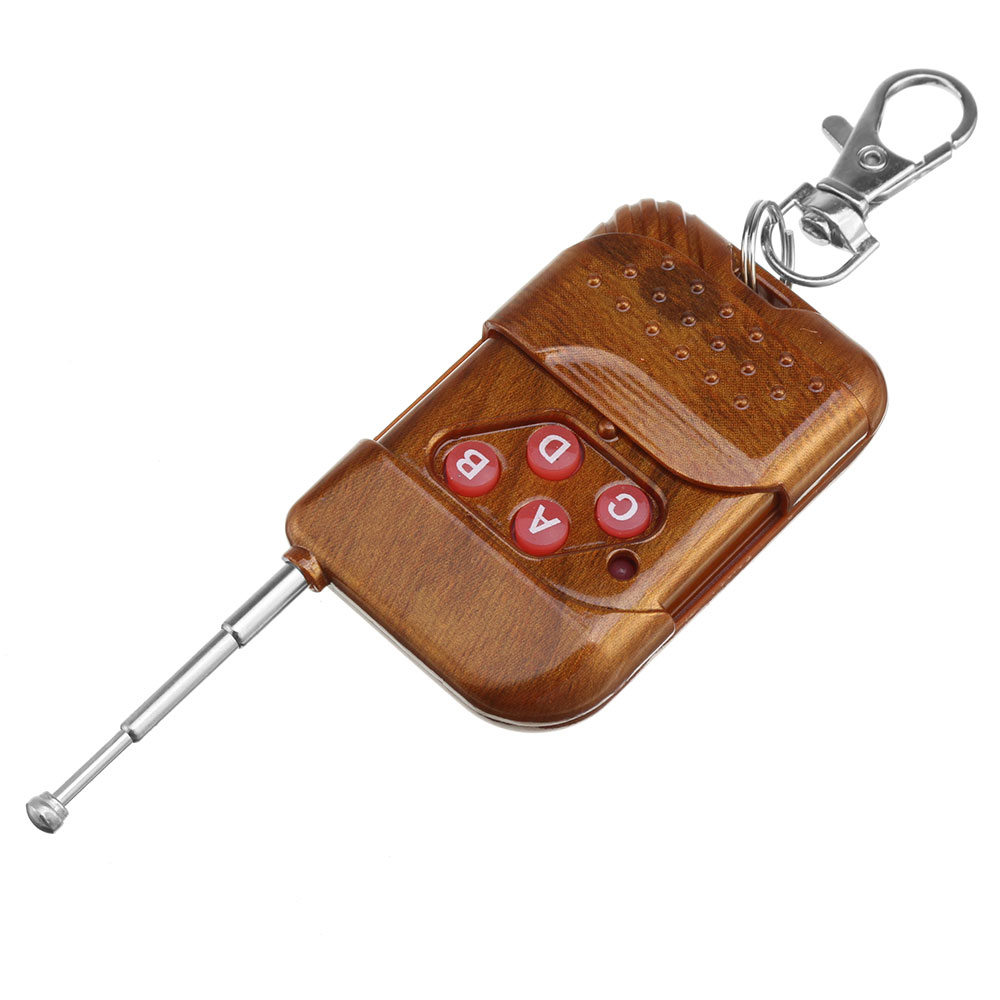

There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3.
Press the buttons transmit signals, the corresponding data bit is output high.

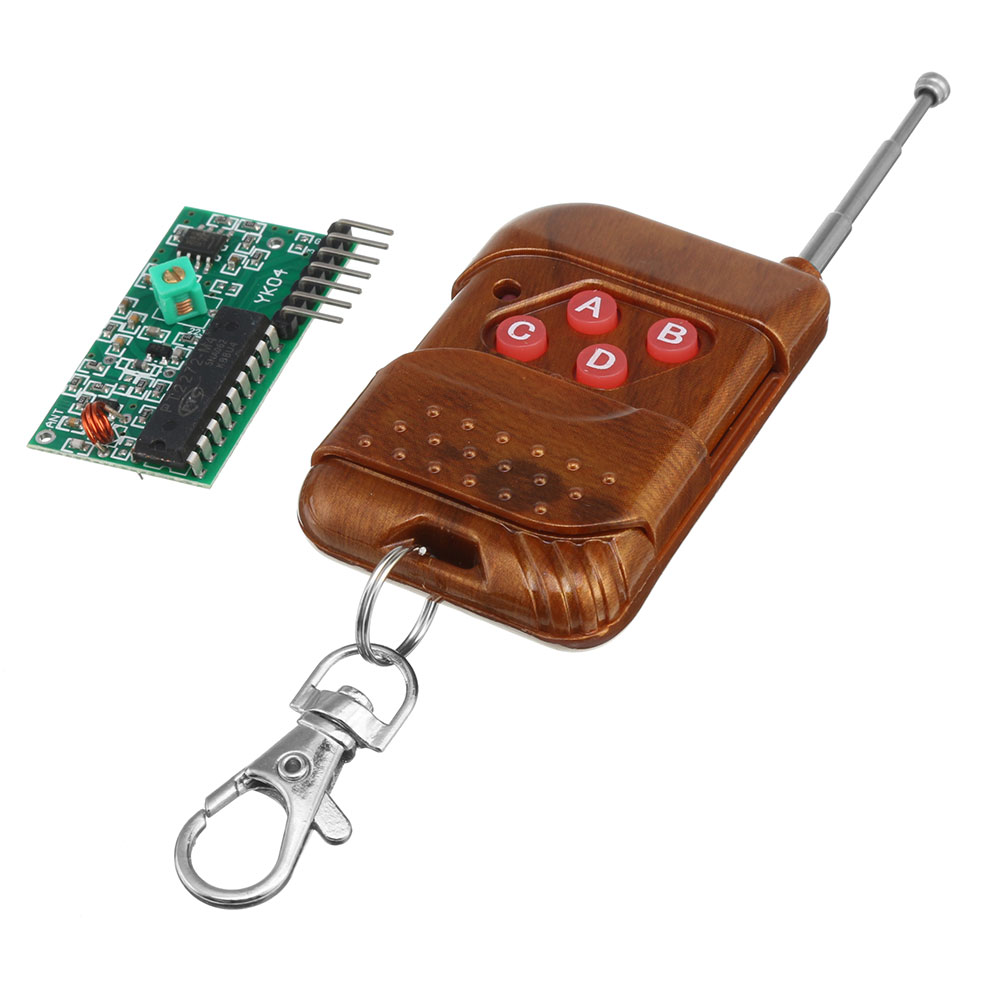

1 x Remote control
1 x Decoding receiver board
Instructions: Click here to open
Specification:
Remote control:
Operating voltage: DC 12V(27A / 12V battery x 1)
Operating current: 10mA at 12V
Radiated power: 10mW at 12V
Transmission distance: 50m - 100m (open field, the receiver sensitivity of -100dbm)
Transmitting frequency: 315MHZ
Modulation mode: ASK (Amplitude Modulation)
Encoder types: fixed code
Decoding receiver board:
Operating voltage: DC 5V
Receiver sensitivity is -98dB
Leg 7 bits: VT, D3, D2, D1, D0, +5V and GND
VT is a valid signal high output pin upon receiving a valid signal, the pin output high, may also drive the relay
Size: 6.6 x 22 x 41mm
Note:
There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3.
Press the buttons transmit signals, the corresponding data bit is output high.
1 x Remote control
1 x Decoding receiver board
