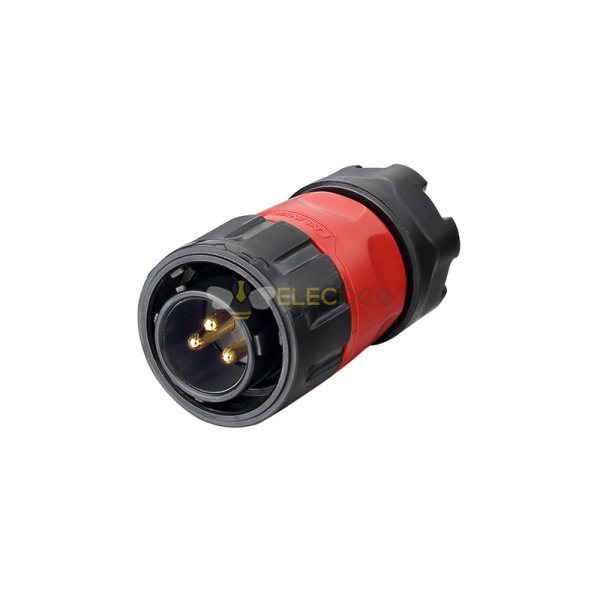

Elecbee 3 Pin Male Plug Aviation Connector Solder Type Waterproof IP67 20A 500V
SKU: EB47162-C
Favorites
Key Features
Package list: 1 male plug.
Adopt a bayonet-type fast locking connection, which is convenient, fast, safe, and stable. The precise structure positioning system ensures the safety and stability of the connection performance. The wiring welding temperature requirement is 380℃±40℃, operation time is: each point does not exceed 3 seconds.
Wide Application Power Circular Connector: Aviation connector is ideal for any equipment for watertight, indoor/outdoor applications, such as outdoor electric tools or appliances, medical device, audio/video, robot, RV solar, communications, marine or automatic equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines equipment, packing machines, etc.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder Cup
Contact Type
Male Pin
Number of Positions
3 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-20℃~+85℃
Ingress Protection
IP68
Rated Current
20A
Rated Voltage
500VAC
Connector Series
YM20
Color
Black, Red
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Engineering Plastics
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
14AWG~12AWG
Description
| Material | Plastic | Plastic | Plastic | Plastic | Plastic | Plastic |
| Rated Voltage | AC 500V | AC 500V | AC 500V | AC 500V | AC 500V | AC 400V |
| Rated Current | 20 A | 20 A | 20 A | 25 A | 25 A | 10 A |
| Cable Specification | 2.5mm²-4.0mm² /14-12AWG | 2.5mm²-4.0mm² /14-12AWG | 2.5mm²-4.0mm² /14-12AWG | 2.5mm²-4.0mm² /14-12AWG | 2.5mm²-4.0mm² /14-12AWG | 1.0 --1.5mm² /18-16 AWG |
| Available Wire Diameter | Φ9-12mm | Φ9-12mm | Φ9-12mm | Φ10-14mm | Φ10-14mm | Φ10.0mm～Φ13.0mm |
| Waterproof Level | IP67(when connected) | IP67(when connected) | IP67(when connected) | IP67(when connected) | IP67(when connected) | IP67(when connected) |
| Connection Type | Solder | Solder | Solder | Solder | Solder | Solder |
