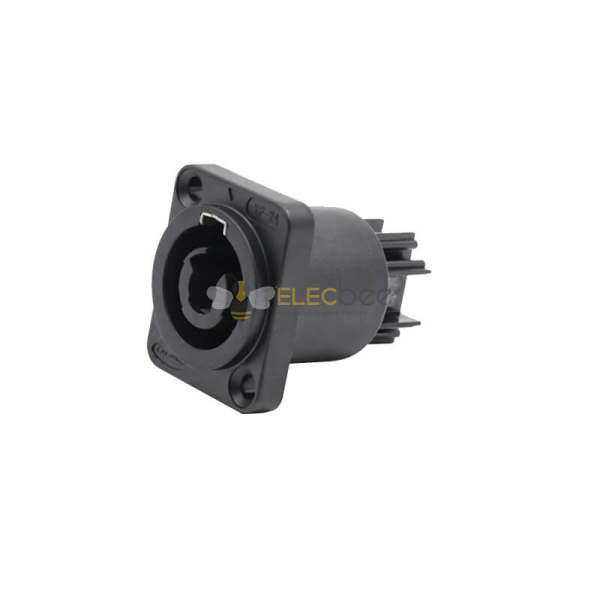

Elecbee 3 Pin Aviation 250V 30A Female Socket Terminal Installation 3.3Mm U L Power Cables
SKU: EB-046-0030
Favorites
Key Features
YF-24 connectors
Locking 3-pin device connector with contacts for neutral, straight, pre-installed safety ground.
Large current capacity 20A/250VAC.
Use different colors (blue input) for input and output (grey output) control to avoid the possibility of matching each other.
Quick and easy locking system.
Use American imported beryllium copper for silver plating double quality assurance, increase current stability and effective temperature rise control.
Waterproof products meet IP68/IP67 protection level in assembled state.
Rated current: 20A rms.
Unique inner core copper pin anti-export design.
Also it is widely used in audio, video and power devices.
Show More
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Flange
Termination
Screw Terminal
Contact Type
Female Pin
Number of Positions
3 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+80℃
Ingress Protection
IP44
Rated Current
20A
Rated Voltage
500VAC
Connector Series
YF
Color
Black
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Engineering Plastics
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
9mm~11mm
Description
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
