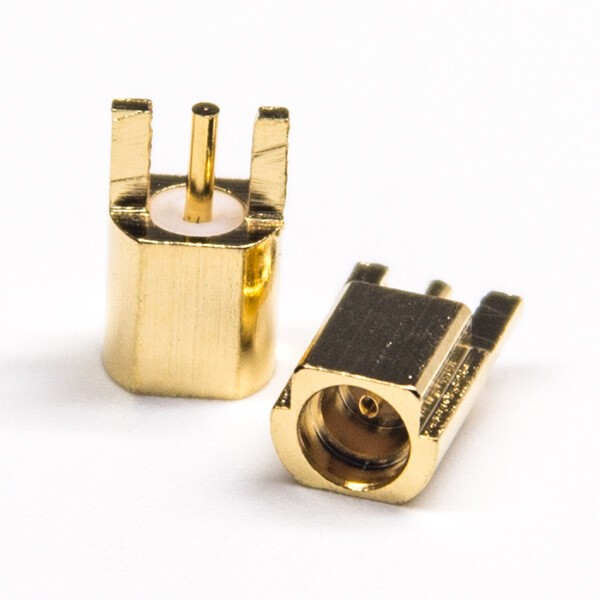

Elecbee 20pcs Female MMCX Connector Offset Type 180 Degree for PCB Mount

SKU: 20XEB-004-0065

Favorites

Key Features

Features:

MCX Connector, Female/Jack, Straight/180°,Edge Mount,PCB Mount,75Ohm,Gold Plating
30% smaller than SMB with same contact and insulator size, make MCX connector lighter and work in smaller space;
Snap-on Interface ideal for quick Installation and discount;
High cost-effective with excellent boardband performance and low reflections.
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of MCXxa0Connectors:

Consumer Electronic: GPS, HDTV, Wireless Internet TV and Audio, smart phone antenna port,xa0
Aerospace and Defense: GPS and Hand-held Device
Technology: Telemetry
Telecommunications: GPS tracking, positioning and navigation devices, Telecommunications networks, Wireless Base Station, Wireless-LAN
Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
Industrial: Machine to machine communications

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

20%

4 stars

5 stars

60%

M****i

Perfect for tight PCB spaces—these offset MMCX connectors fit exactly where straight ones wouldn’t. Gold plating looks high quality and the 50-ohm impedance matches my RF design perfectly.

N****n

Good value pack of 20. The snap-on coupling works smoothly and they’ve held up through multiple mating cycles. Slight variance in alignment, but nothing critical.

M****A

Exactly as described—offset 180° design saved board space on my drone project. PTFE insulation and gold-plated brass feel durable. Performs well up to 6 GHz.

A****i

Workable quality for the price. They function fine at 2.4 GHz, but one connector had a slightly loose fit. Still within spec, though, and the 30-day return gives peace of mind.

R****t

Great for compact RF modules. Love that they’re 30% smaller than SMB yet maintain solid signal integrity. Low VSWR confirmed in testing. Will buy again.
