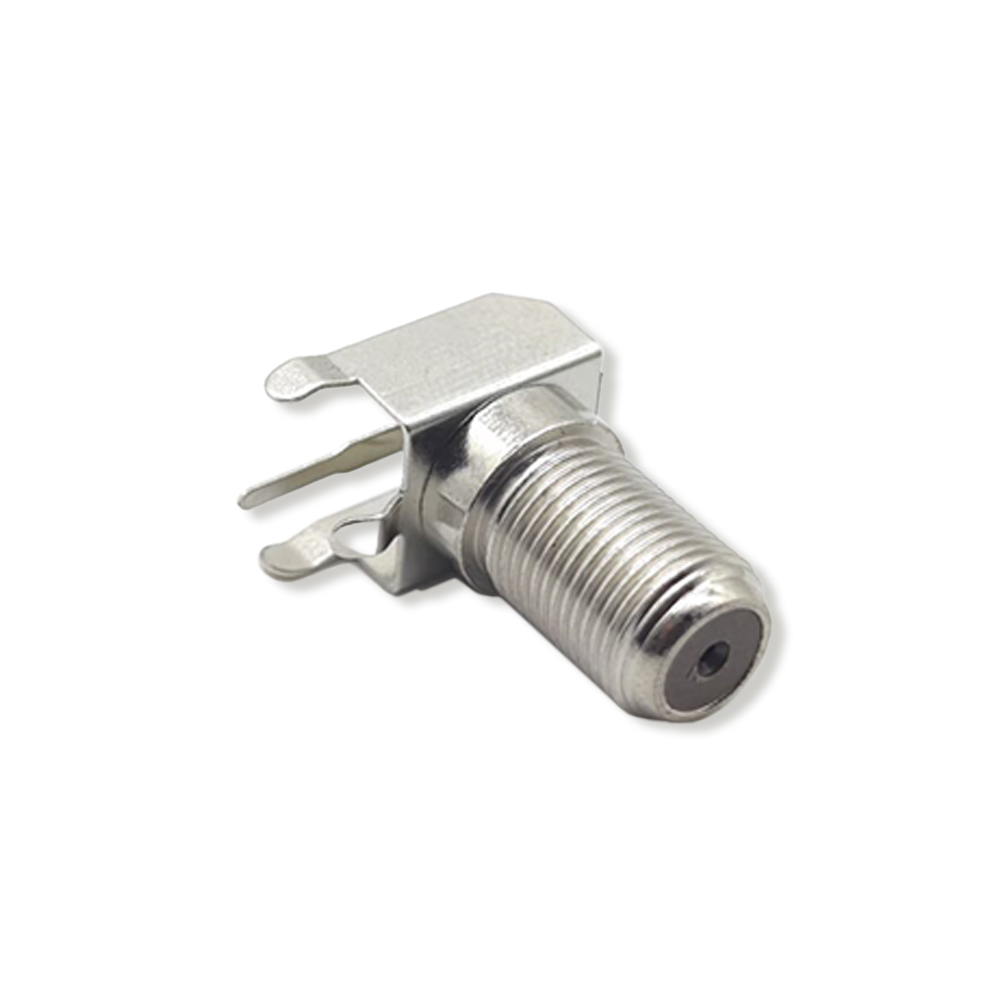

Elecbee 20pcs F Type Connector PCB Mount Female Bulkhead Angled with Stand
SKU: 20XEB-003-0007
Favorites
Key Features
- Pcb Mount, Jack/female, Angled/90°, 75Ω, Bulkhead;
- Great security and tamper protection performance with screw on structure;
- Simple structure and component to produce F connectors in very competitive price;
- Less than 30 seconds required for wiring make it really easy to install;
- Can be visually inspect even after connection;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of Fxa0Connectors:
- Consumer Electronic: Statellite Boxes, set top boxes
- Telecommunications: CATV, CATV Networks
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Bulkhead
Contact Type
Female Pin
Shell Finish
Nickel Plated
Impendance
75 Ohms
Frequency Max
3 GHz
Connector Series
F Type
Color
Silver
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Brass
Contact Material
Brass
Contact Finish
Gold Plated
