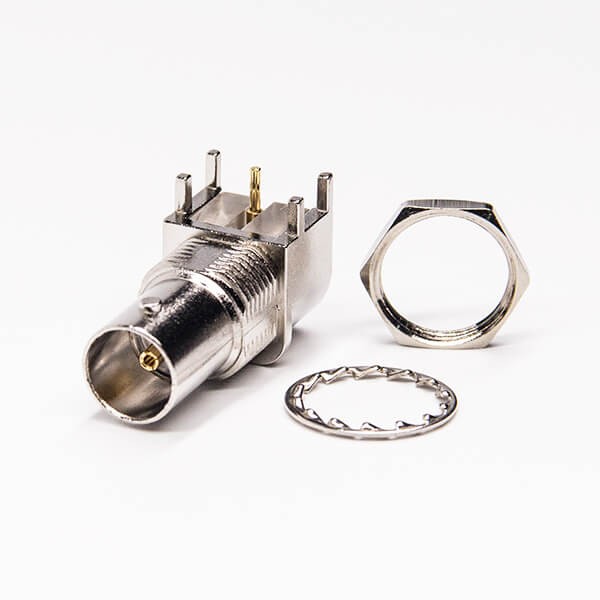

Elecbee 20pcs BNC Female PCB Mount Through Hole Connector 90 Degree
SKU: 20XEB-001-0136
Favorites
Key Features
Product features:
- BNC Connector, Female/Jack,RF Connector, Angled/90°, PCB Mount,Through Holexa0xa0 ;
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:xa0Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Technology Equipment, Instrumentation, CCTV, CATV, HDTV, etc.
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Contact Type
Female Pin
Shell Finish
Nickel Plated
Impendance
50/75 Ohms
Frequency Max
4 GHz
Connector Series
BNC
Color
Silver
Fastening Type
Bayonet
Orientation
Right Angled
Shell Material
Zinc Alloy
Packing
Individual Packaging
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PTFE
Cable Diameter
2.14mm
Related Resources
Certificates
Shopping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
.jpg?x-oss-process=image/resize,w_600,h_600/quality,q_90/watermark,image_aW1hZ2UvcGFuZGEucG5n,P_50,t_40,g_center,x_0,y_0)
Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
20%
4 stars
20%
5 stars
60%
N****i
Perfect for tight spaces! The 90-degree angled design fits neatly on my PCB without bending the coax. Solid nickel-plated brass body and gold pin make connection reliable.
W****a
Good quality BNC connectors at a fair price. Through-hole mounting feels secure, and the Teflon insulator handles heat well during soldering.
t****t
Exactly as described. These female 90° connectors are ideal for CCTV and RF projects. Impedance stability up to 1GHz is solid for this price range.
M****z
Decent product, but one out of twenty had a slightly misaligned pin. Still functional after minor adjustment. Packaging could be better.
S****h
Fast shipping and great build quality. Love that they’re from the original factory—same specs as pricier brands, especially with the gold contact and 50Ω impedance.
