1.Based on Raspberry Pi 40pin GPIO Interface, compatible with Most Raspberry Pi series Mainboard
2.Support CAN2.0 as well as CAN FD.High Transmission Speed Could Go Up To 8Mbps
3.With SPI Controller Interface, Could Be Connected to STM32/ Controller Boards
4.Electrical isolation Included. Isolation Voltage up to 5KV.Providing Better Stability and Anti-interference Performance
5.Built-in Protection Circuits that make the project much safer
6.Electrical Level Switch included, Could be Switched Between 3.3V/5V
7.120Ω Terminal Resistance included.
Specification:

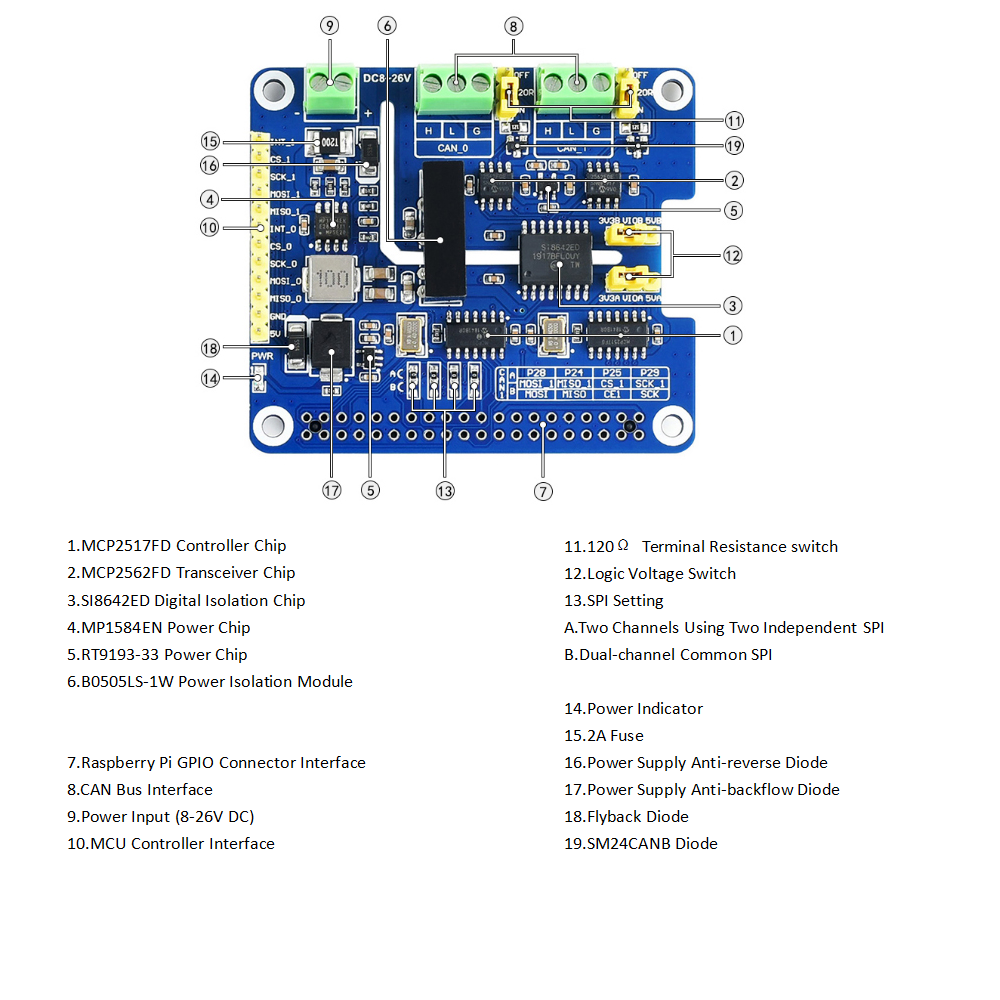

CAN controller : MCP2517FD
CAN transceiver: MCP2562FD
Communication: SPI (default to be 2 channel SPI, could be changed to single channel by resoldering)
Power: DC 8-26V
Working Voltage:5V
Electrical Level:3.3V/5V

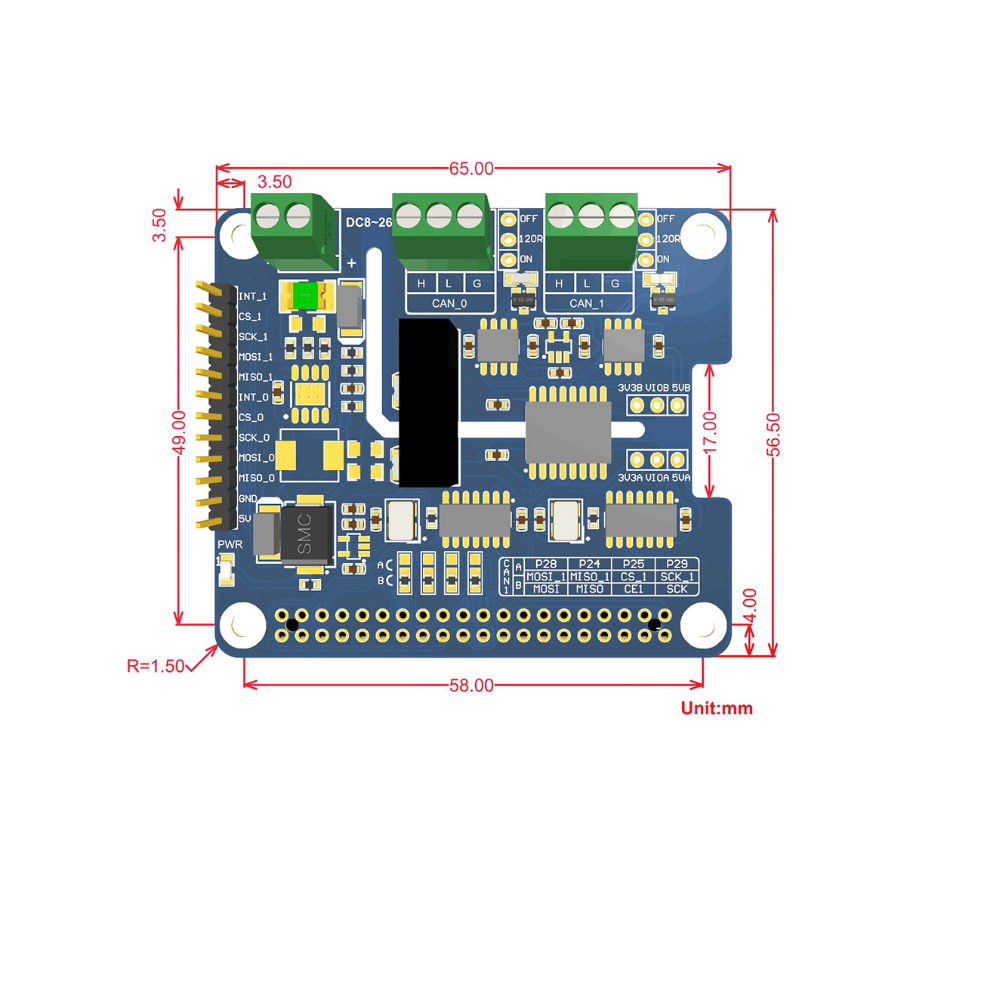

Size: 65X56.5mm
For more info, Please click :http://www.waveshare.net/wiki/2-CH_CAN_FD_HAT
PS:This link is in Chinese, you may read it with Google Translation

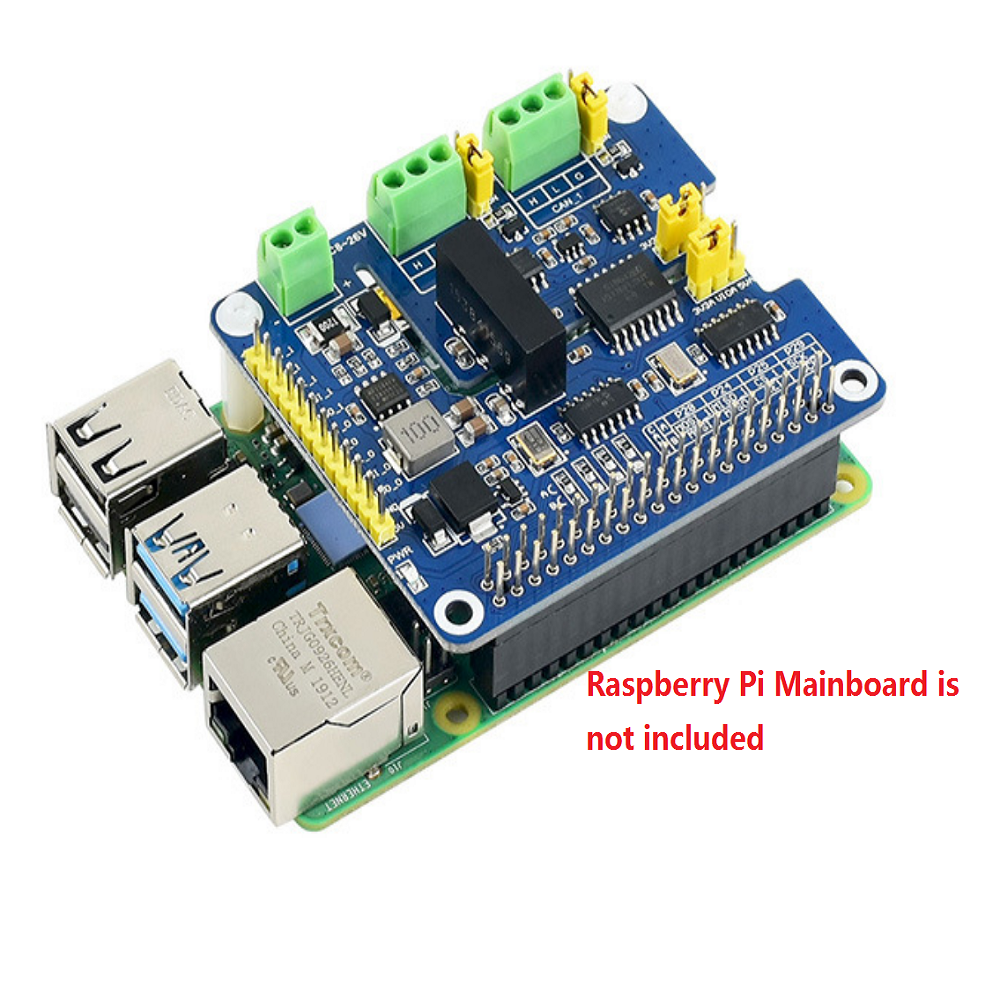

Raspberry Pi Mainboard is not included

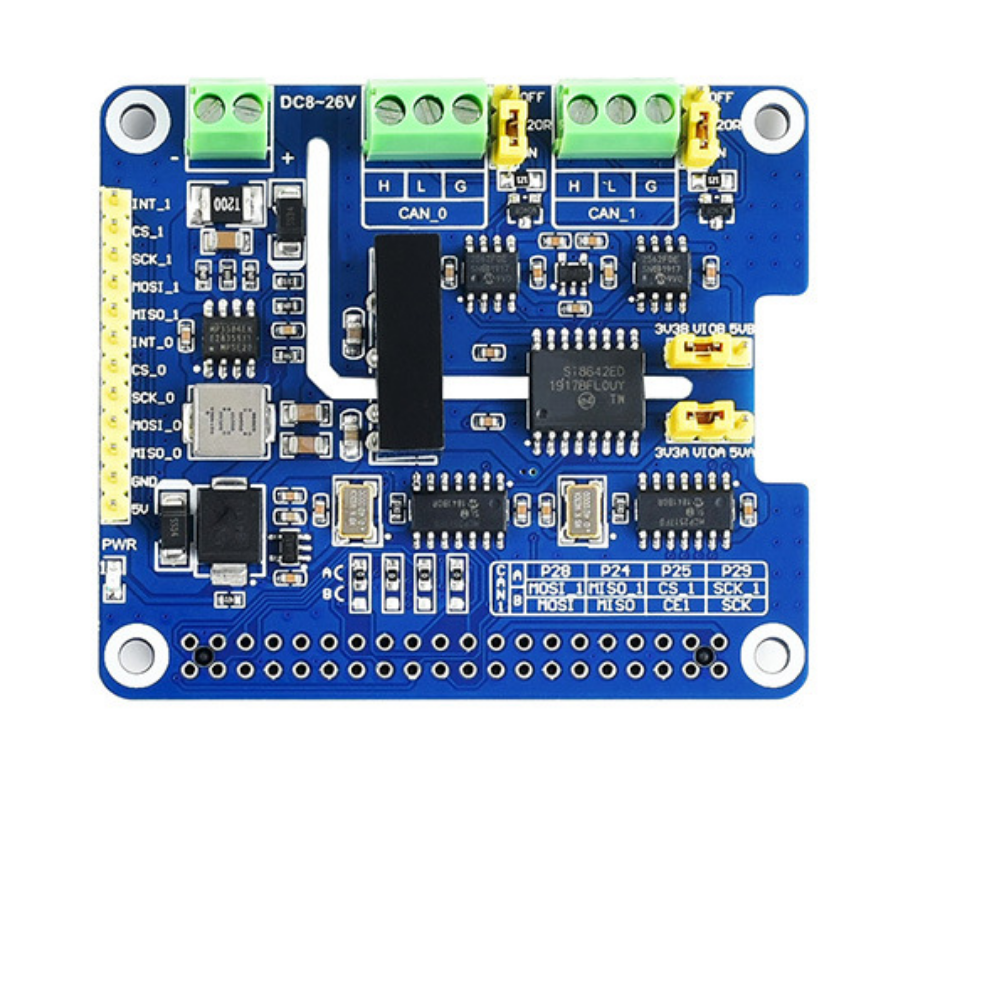

Overview:
Special Designed Dual Channel Isolated CAN Bus Expansion Board for Raspberry Pi with Great Anti-interference Performance and Better Transmission Rate
Support CAN2.0 and CAN FD.Transmission Speed up to 8Mbps.Larger Data Transmission Capability
Multiples of Built-in Protection Circuit included Thunderstrike Protection ,Electrostatic Protection,Shortcut Protection, Electrical Isolation and so on.
Stability and Security Under Industry Standard

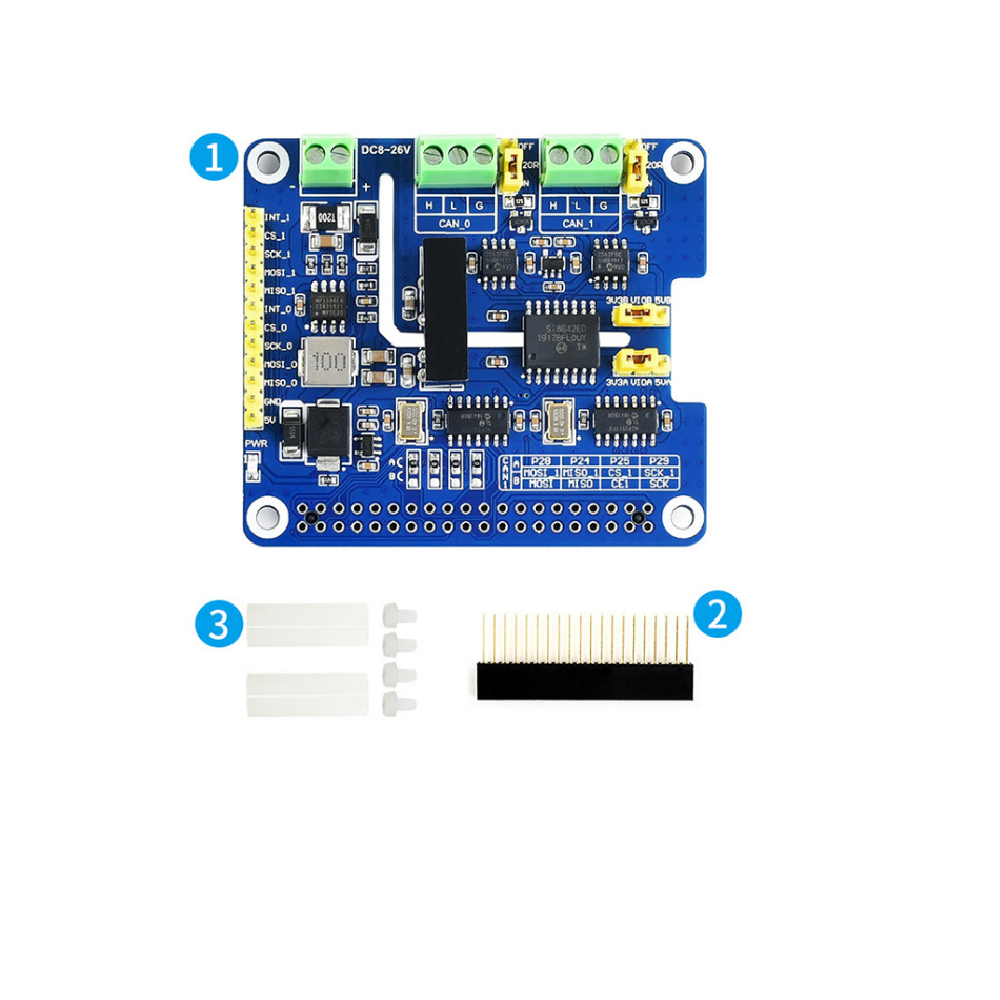

2-Channel CAN FD HAT x 1
2x20PIN Connector x 1
Screws kit x 1
