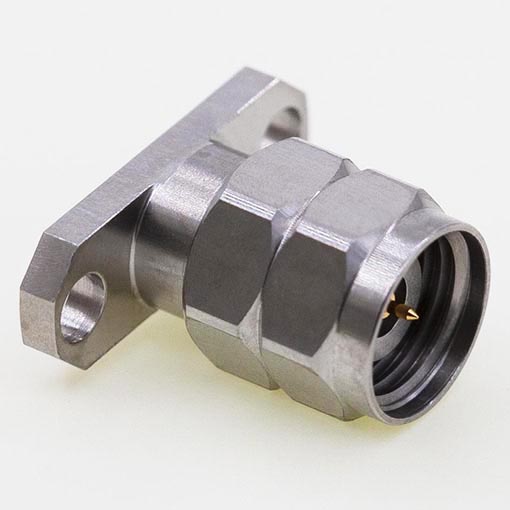

Elecbee 2.4mm Replaceable Connector, 14 x4.8mm / 0.55 x 0.19inch Flange for 0.23mm / .009″ Pin
SKU: EB-DRF-0050
Favorites
Key Features
- High-strength connection for reliable performance.
- Replaceable 2.4mm connector for easy maintenance.
- Precision flange: 14 x 4.8mm fits 0.23mm pin perfectly.
Show More
Description
Part Number:EB-DRF-0050
Description: 2.4mm Male Replaceable Connector, 14 x 4.8mm / 0.550 x 0.190inch Flange Plug Receptacle for Φ0.23mm / .009″ Pin.
ThisEB-DRF-0050, 2.4mm 4 hole male replaceable connector with size 14 x 4.8mm / 0.550 x 0.190inch flange plug, receptacle for Φ0.23mm / 0.009inch pin, frequency range from DC to 50GHz, 50Ω impedance, VSWR 1.15:1 (max) for DC~50GHz, 750V withstanding voltage, ≥3000mΩ insulation resistance, 500 cycles durability and -55°C~+165°C operating temperature.
Advantages
- Small Size
- High Reliable
- Good Mechanical Performance
- Wide Frequency Range from DC to 50GHz
Applications
- General Purpose Test
- Field Replacement Connector
- Rack and Panel Mount Application
- Receptacle for Φ0.23mm / .009″ Pin
Key Features
| Polarity | Standard |
| Interface | 2.4mm |
| Connector Type | Plug |
| Connector Gender | Male |
| Impedance | 50Ω |
| Body Shape | Straight |
| Body Mounting | 4 Hole Flange |
| Attachment Method | Field Replacement |
Performance Features
| Frequency Range | DC~50GHz |
| VSWR： | DC~50GHz: 1.15:1 (Max) |
| Contact Resistance | Centre Conductor ≤3.0mΩ |
| Outer Conductor ≤2.0mΩ | |
| Insulation Resistance | ≥3000mΩ |
| Withstanding Voltage | 750V |
| Durability | 500 Cycles |
| Operating Temperature | -55℃~+165℃ |
Material Specifications
| Housing | Type 303 Stainless Steel |
| Polished & Passivated | |
| Centre Contact | Beryllium Copper Plated |
| Gold (MIL-G-45204) | |
| Insulators | PEI or PEI & PTFE |
Shopping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
