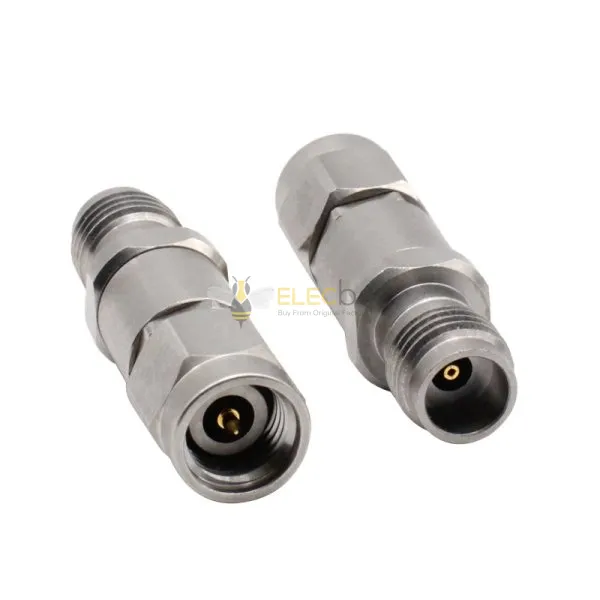

Elecbee 2.92mm Male to 2.4mm Female Millimeter Wave Adapter DC–40GHz 50Ω Low VSWR Precision RF Adapter
SKU: EB-DRF-0112-C
Favorites
Key Features
- [Precision High-Frequency] Engineered for DC to 40 GHz millimeter wave applications, providing seamless conversion between 2.92mm (K) and 2.4mm (V) interfaces.
- [Superior Electrical Performance] Features ultra-low VSWR (≤1.2:1) and insertion loss (≤0.35dB) to maintain signal integrity in high-frequency test environments.
- [Premium Material Build] Constructed with a 303 Stainless Steel outer shell and Gold-Plated Beryllium Copper center contacts for exceptional durability and conductivity.
- [Extreme Environment Reliability] Designed with high-performance PEI insulation, operating reliably across a wide temperature range from -55°C to +125°C.

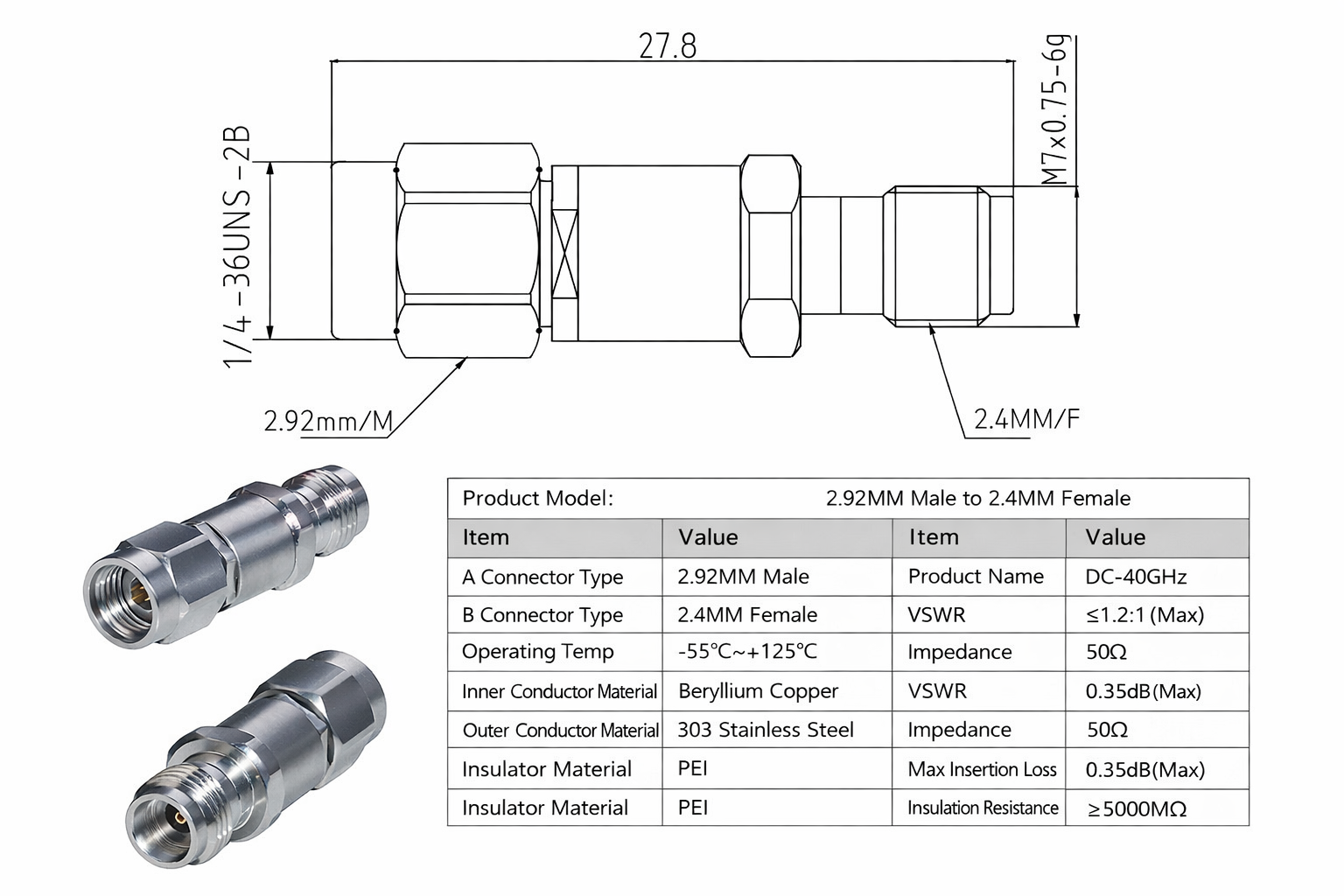

- [Precise Mechanical Fit] Compact 27.8mm length with standard 1/4-36 UNS and M7x0.75 threads, ensuring a secure and repeatable connection for lab instruments.
Show More
Description
The Precision 2.92mm Male to 2.4mm Female Millimeter Wave Adapter is a high-performance RF coaxial component designed for mission-critical telecommunications, laboratory testing, and satellite communication systems up to 40 GHz.
Technical Specifications:
- Frequency Range: DC – 40 GHz
- Impedance: 50 Ω
- VSWR: ≤ 1.2:1 (Max)
- Insertion Loss: 0.35 dB (Max)
- Interface A: 2.92mm Male (1/4-36 UNS-2B)
- Interface B: 2.4mm Female (M7 × 0.75 – 6g)
- Insulation Resistance: ≥ 5000 MΩ
Why Choose Our Millimeter Wave Adapter?
Manufactured with high-grade 303 Stainless Steel and Beryllium Copper (Gold Plated), this adapter is built to survive thousands of mating cycles without performance degradation. The PEI insulator ensures stable electrical performance even under extreme thermal stress (-55°C to +125°C). Ideal for bridging the gap between 2.92mm and 2.4mm precision test equipment.
