Elecbee 2.4 Inch TFT LCD Display Module 320x240 Resolution ILI9341 Driver 4-Wire SPI Serial Interface Non-Touch Screen for Arduino Raspberry Pi
SKU: EB0050992
Favorites
Key Features
Vibrant Graphic Display: 320x240 QVGA resolution provides sharp, full-color rendering for menus, charts, and data visualization.
Universal Library Support: Powered by the industry-standard ILI9341 driver IC, ensuring plug-and-play compatibility with Arduino, ESP32, and STM32.
I/O Optimized Connectivity: Utilizes a high-speed 4-wire SPI serial interface to save valuable GPIO pins on your microcontroller.

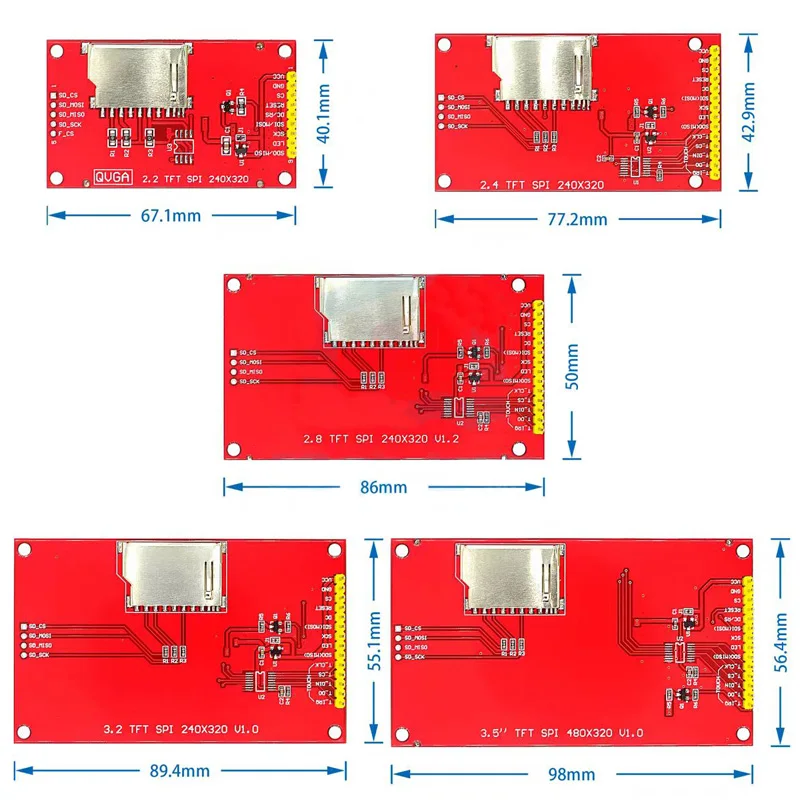

Robust Development Base: Mounted on a high-quality 77.18mm x 42.72mm PCB with secure mounting holes for stable integration into professional housings.
Energy Efficient Design: Engineered for low power consumption and high brightness, making it ideal for battery-operated handheld instruments.
Show More
Description
Standard character displays often limit the sophistication of embedded projects, failing to show complex icons or real-time graphical data. This Elecbee 2.4-inch TFT LCD Module solves this limitation by providing a full-color 320x240 pixel canvas that allows for graphical user interfaces (GUI) and dynamic visual feedback. Whether you are developing a handheld diagnostic tool, a smart home control panel, or a DIY laboratory instrument, this screen provides the professional visual output required for modern electronic prototypes.
This non-touch SPI display is engineered for high-performance serial communication and wide-angle visibility. It acts as a high-speed visual hub for embedded systems. The "What" includes:

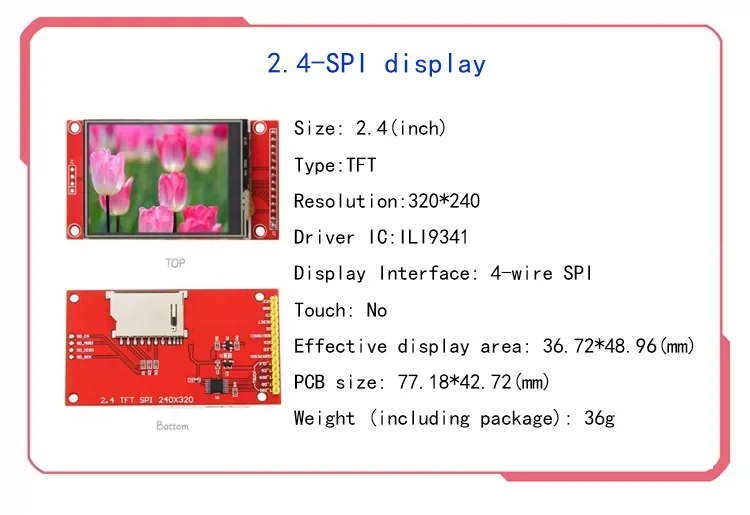

- Screen Type: 2.4" TFT LCD (Thin Film Transistor)
- Resolution: 320 x 240 QVGA
- Driver IC: ILI9341 High-Speed Controller
- Interface: 4-Wire SPI Serial Port
Technical product information: The Elecbee 2.4-SPI display features a ruggedized PCB bottom plate measuring 77.18mm x 42.72mm, providing secure mounting points for stable installation. The ILI9341 driver supports high frame rates and 3.3V/5V logic compatibility, making it an essential microcontroller peripheral for Raspberry Pi, Arduino, and ESP32 developers. Designed for non-touch applications, this SPI color screen ensures a reliable data transition and long-term durability in IoT gateways, medical monitors, and educational STEM kits requiring precise pixel density and a 36.72mm x 48.96mm effective display area.
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
