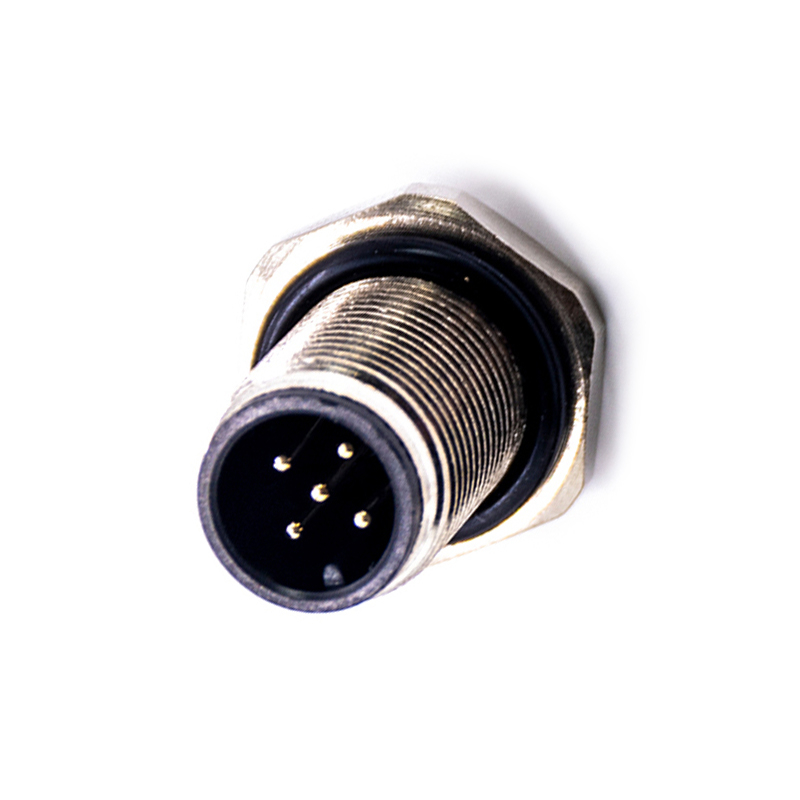

Elecbee 15 pcs M12 Panel Receptacles A Code Straight 5pin Male Non-shield connector
SKU: 15XEB-400-2167
Favorites
Key Features
Features:
- M12,A Code,Panel Receptacles,Front Mount,5Pin,Male,Straight,Soldering,For Cable
- thread locking mechanism, anti vibration locking design，12mm thread joint;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Show More
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Front Side Nut
Termination
Solder Cup
Contact Type
Male Pin
Shell Finish
Nickel Plated
Number of Positions
5 Pin
Operating Temperature
-20℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67(mated）
Rated Current
4A
Rated Voltage
60V
Connector Series
M12
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
Black
Key
A Code
Wire Gauge
22AWG
Description
Related Resources
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4 /5
All reviews come from verified purchasers
5
60%
4
20%
3
20%
2
0%
1
0%
M****q
Perfect for my industrial automation setup. The M12 A-code 5-pin male connectors are solid brass with excellent shielding, and the IP67 rating keeps everything safe from dust and moisture. Easy to mount with the 4-hole flange.
F****t
Good quality metal housing and secure snap-fit coupling. Installed them on a factory sensor array—compact size saves space, and they’ve held up well after months of use.
a****n
Exactly as described: rugged, weatherproof, and built to last. The straight plug design made wiring easier in tight panels. Love that they’re non-shielded but still durable.
J****h
Solid connectors, though soldering the pins took more time than expected. Would prefer a crimp version, but overall performance is reliable in our packaging line.
L****z
Great for high-vibration environments. These M12 receptacles haven’t loosened up even under constant movement. Lightweight yet feel very sturdy.
