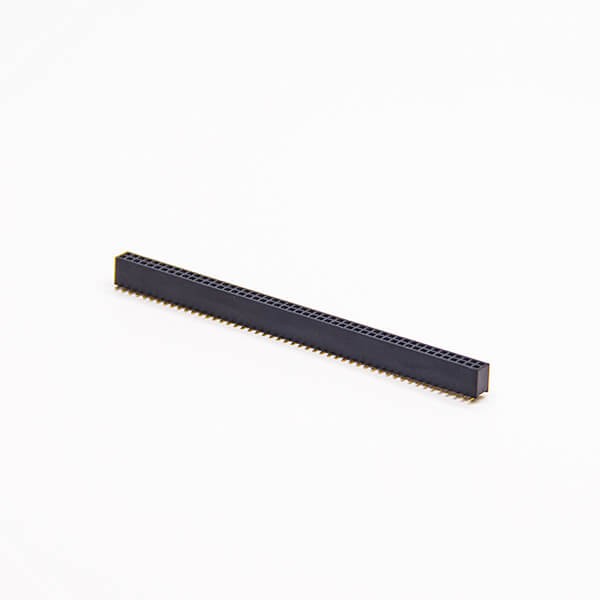

Elecbee 100 way Female Header 1.27mm Pitch Dual Row SMT Type Straight
SKU: EB-609-0047
Favorites
Key Features
Features:
- Female Header Connector,100Pin,Female/Jack,Straight/180°,SMT,Dual Row
- Normally associated with ribbon cable connectors, or worked as recipients for jumpers
- consists of one or more rows of male pins typically spaced 2.54 millimetres (0.1 in) apart, 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in);
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Rows
2
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Female Pin
Number of Positions
100 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+105℃
Contact Finish
Gold Plated
Insulating Materials
PPA
Insulation Color
Black
Pitch
1.27mm
Shopping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
