Elecbee 1.3 Inch 4Pin White OLED LCD Display 12864 IIC I2C Interface Module
SKU: EB0050376
Favorites
Key Features
Feature:
Resolution: 128*64
Control chip: SSH1106

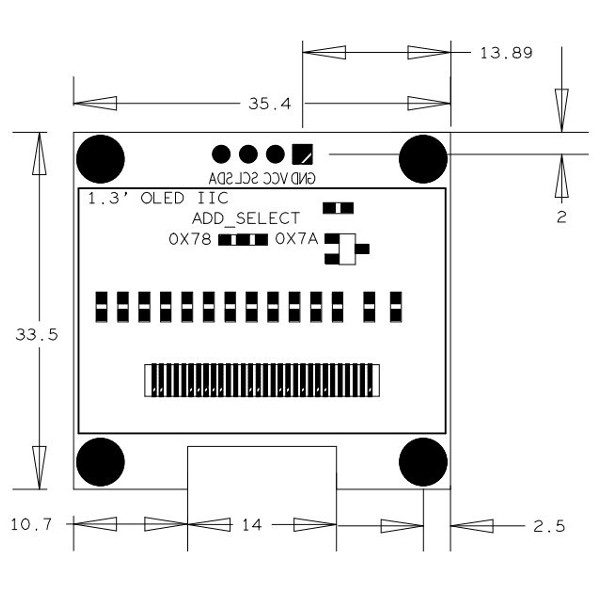

Display area: 29.42 x 14.7mm
Driving voltage: 3.3-5V
Operating temperature: -40 ℃ to 70 ℃
Interface type: IIC/I2C interface

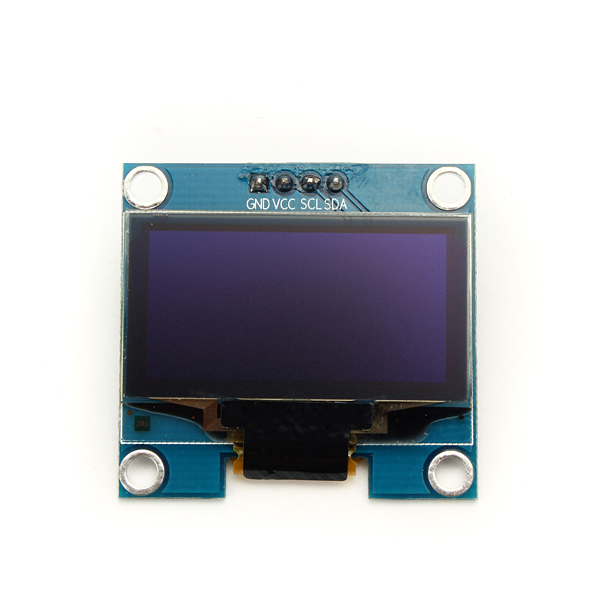

Pin definitions:
1> GND (power ground)
2> VCC (positive power supply)
3> SCL (clock line)
4> SDA (data line)
About control chip SSH1106:
SSG1106 compatible with SSD1306 basic, difference is that SSH1106 control chip RAM space is 132*64, while SSD1306 space is 128*64.
The 1.3-inch OLED 128*64 dot matrix, so in the middle of the screen production took 128 row. When using SSD1306 program point SSH1106 screen, only need to change address to 0x02 row to start.
Show More
In-Stock
Qty.
1
Unit Price
$ 4.34
Ext. Price
$ 4.34
$ 4.34
Specifications
Attribute
Value
Search
Model
I2C
Description
File download: contact us
Package includes:
1 x 1.3 Inch White OLED Module
,
,
