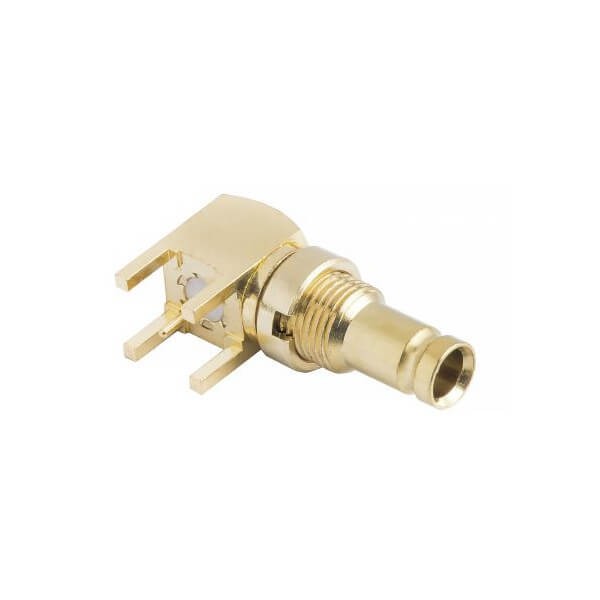

Elecbee 1.0/2.3 Connector Jack Solder Termination Right Angle 75Ω PCB Mount standard Bulkhead Fitting Threaded 6GHz
SKU: EB-010-0021
Favorites
Key Features
Features:
- Male,Straight,Crimp, Cable Mount,Brass,Nickel, Miniature,75Ω,Snap-On,3GHz,Bulkhead
- Compact design is ideal for limit space application and save space in delivery;
- Push/pull mating is excellent for quick installation without vibrate loose;
- Great performance with frequency up to 10GHz support high data rates.
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of DIN1.0/2.3xa0Connectors:
- Aerospace and Defense:xa0Communication systems
- Telecommunications:xa0CATV, Central office, High-density Radios, Base station, Switching equipment
- Networking: Video Equipment, Radio boards
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Solder
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
75 Ohms
Frequency Max
10 GHz
Connector Series
DIN 1.0/2.3
Color
Gold
Fastening Type
Push-on
Orientation
Right Angled
Shell Material
Copper Alloy
