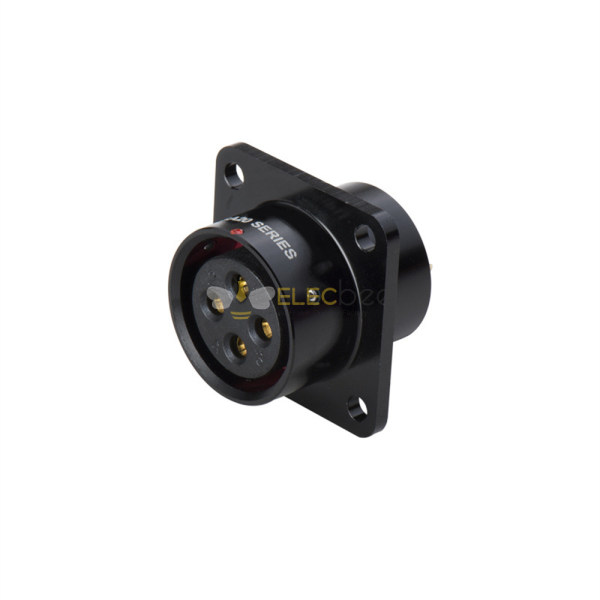

Elecbee SA2013/S3B-3 Waterproof Male Socket Panel Mount 4 Hole Flange Crimp Black
SKU: EB-SA2013-S3B-3
Favorites
Key Features
- Waterproof design for reliable outdoor use.
- Durable metal steel construction with corrosion resistance.
- Easy panel mount with 4-hole flange and crimp seal.
- Equipped with copper alloy pins for superior conductivity.
- Secure connection via locking lever and screw terminals.
Show More
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male Pin
Shell Finish
Anodizing
Number of Positions
3 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP67
Rated Current
25A
Rated Voltage
500VAC
Features
Flange
Connector Series
SA20
Color
Black
Fastening Type
Push-on
Orientation
Straight
Shell Material
Aluminum Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
11AWG
Shell Size
20
Insulation Color
Black
Key
A Code
