Elecbee 3/4CH DMX512 Decoder Board - 4A/Channel RGB/RGBW Controller w/ 256-Level Dimming DC9-24V
SKU: EB0049262
Favorites
Key Features
4A/CH HIGH-POWER DRIVE: Controls RGB/RGBW or monochrome lamps up to 288W (24V), 4A per channel constant current.
FLEXIBLE 3/4 CHANNEL MODES: Switch between single-color, RGB, or RGBW fixtures via DMX addressing.
INDUSTRY-STANDARD DMX512: DIP-switch addressing (1-512) for seamless integration with lighting consoles.
256-LEVEL SMOOTH DIMMING: Flicker-free PWM output enables precise 0-100% brightness control.
COMMON ANODE DESIGN: Simplified wiring for architectural/stage lighting; 9-24V auto-adaptation.
Show More
Specifications
Attribute
Value
Search
Wireless Capability
Bluetooth
Description
Specifications:
Input Power: DC 9-24V
Max Load Current: 4A*3/4CH
Max Power Load:108(9V)-288(24V)
Output Gray Level: 256
Input Signal:DMX512/1990
Output Signal: 3/4 channels constant PWM
Output Connection: Common anode
Application: Sinal,Double,RGBW lamps
Basic Functions:
***There are 3/4 output channels, can connect with single or RGB lamps.
***0~100% dimming output, each channel 256 gray levels.
***International standard DMX512 input protocol, address code set by DIP switches.
***Wide input voltage DC12V-DC24V.
***Each occupied by 3/4 DMX address.
Package Incldued:

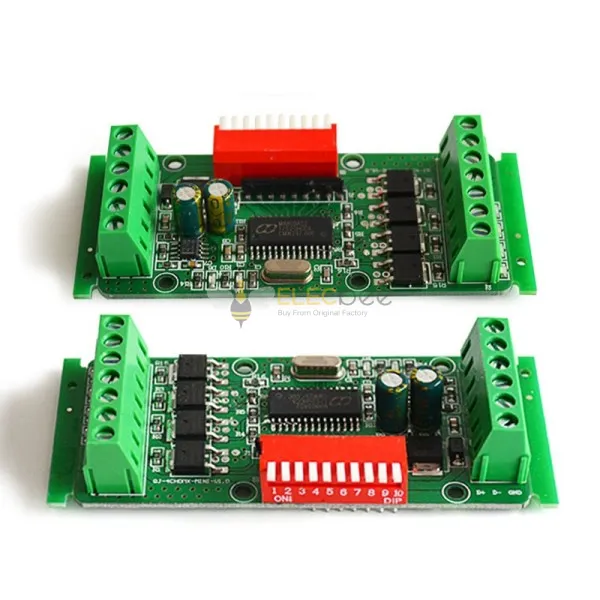

1 x 3/4 Channel LED DMX512 Decoder Board
