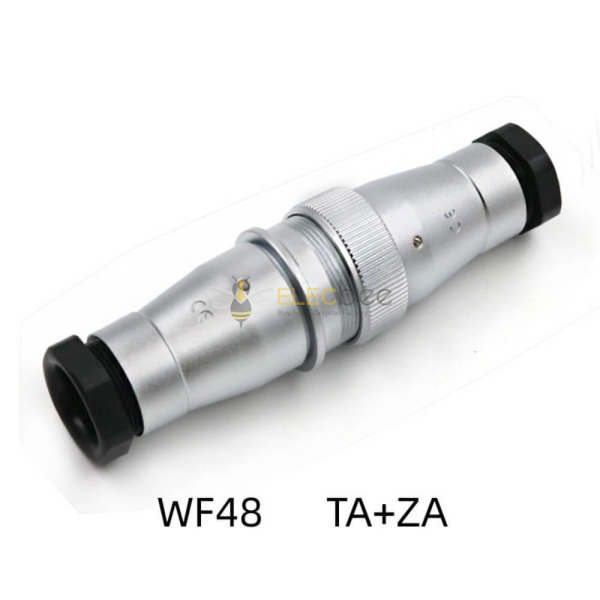

WF48-20pin TA+ZA docking Male Plug and Female Socket Aviation Waterproof Connector

Description

Feature

Female and male , Straight, waterproof, For cable, 20pin;
Termination Type: sloder
Easy quick connect and disconnect coupling;
Options: 5/7/20/27/38/42 pins
Hole Diameter: 48mm
From the OEM Original Factory, same quality with much better price.

Main Application of WF48 Connectors:

Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.

Electrical Characteristics

Working Voltage: 500 V rms
insulator resistance:2000 ohm
test Voltage:1500 V rms

Mechanical Characteristics

Coupling: threaded
Mating Durability: ≧500 cycles

Environmental Characteristics

Temperature Range: -40°C~85°C
IP65

Part Material Finished
Body
Zinc alloy chrome plating
silver
Center Contact Pin gold-plated brass gold

Insulator PPS black
