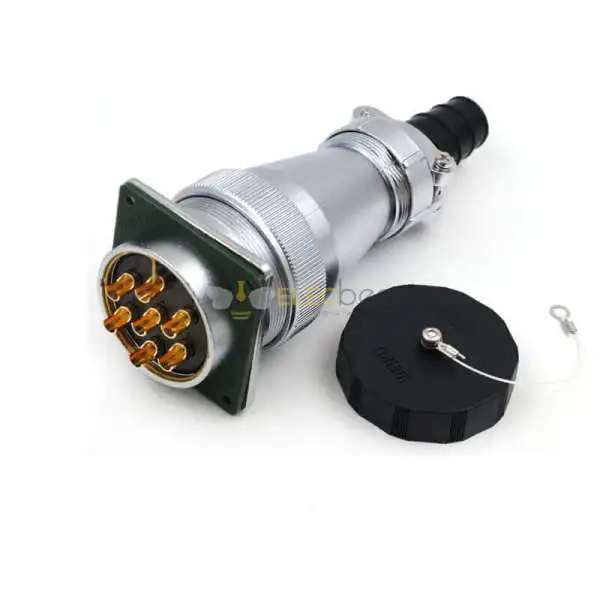

Elecbee WF48-7 pin Aviation Circular Waterproof Connector Straight Cable TI+Z Male Plug and Female Square Socket
SKU: EB-WF48J7TI-WF48K7Z
Favorites
Key Features
Feature
- Female socket, Male plug , Straight, waterproof, Solder up, 7pin, 4-hole flange;
- Termination Type: solder
- Easy quick connect and disconnect coupling;
- Options: 5/7/20/27/38/42 pins
- Hole Diameter: 48mm
- From the OEM Original Factory, same quality with much better price.
Main Application of WF48 Connectors:
- Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male，Female Pin
Shell Finish
Chrome Plated
Number of Positions
7 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP65
Rated Current
50A
Rated Voltage
500VAC
Features
Waterproof
Connector Series
WF48
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
7AWG
Shell Size
48
Insulation Color
Black
Description
WF48 TI+Z 7pin
