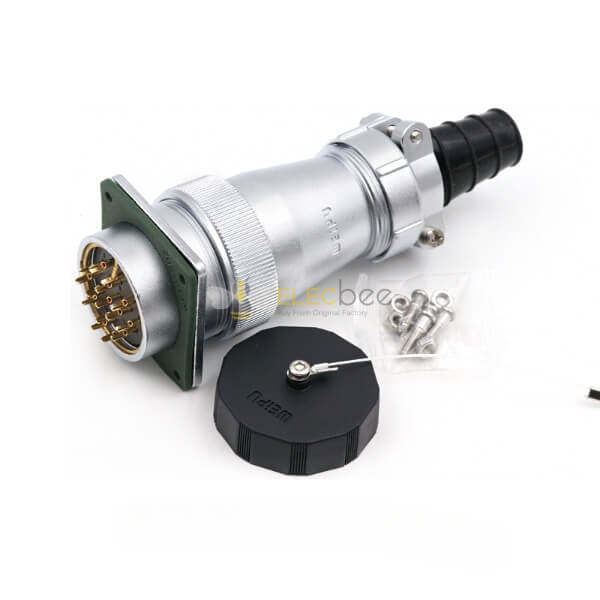

Elecbee Male Plug and Female Socket WF40/15pin Straight Cable Plug TI+Z Aviation Square Receptacle

SKU: EB-WF40J15TI-WF40K15Z
Favorites
Key Features

Features:

  • Specification: WF40 Connector, Male plug, Female socket , Solder Cup, 15 Pin, straight,waterproof, 4-hole flange
  • Termination Type:  Solder
  • Insulator: High-temperature PPS
  • Temperature Range: -40°C~85°C
  • Contact material: Brass with gold plating
  • Hole Diameter: 40mm
  • Number of Contacts: 5/9/15/26/31Pin
  • Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.

Show More
Attribute
Value
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male,Female Pin
Shell Finish
Chrome Plated
Number of Positions
15 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP65
Rated Current
10A
Rated Voltage
500VAC
Connector Series
WF40
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
14AWG
Shell Size
40
Insulation Color
Black
Shopping Guide
Shipping
Delivery Period
For in-stock parts, orders are estimated to ship out in 3 days.
Elecbee ships orders once a day at about 5pm except Sunday.
Once shipped, estimated delivery time depends on the below carriers you chose.
DHL Express: 3-7 business days
DHLeCommerce: 12-22 business days
FedEx International Priority: 3-7 business days
EMS: 10-15 business days
Registered Air Mail: 15-30 business days
Shipping RatesShipping rates for your order can be found in the shopping cart.
Shipping OptionsShipping rates for your order can be found in the shopping cart.
Shipping TrackingWe will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/WarrantyReturningReturns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
WarrantyAll Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
OrderingHow to BuyElecbee accepts online orders.
Add to cart > Check out > Submit order > Complete payment > Delivery
PaymentPayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Recommended For You

Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
20%
4 stars
20%
5 stars
60%
M****s
Perfect for my industrial project. The gold-plated brass contacts ensure a reliable connection, and the waterproof seal held up in wet conditions.
b****s
Solid build with high-temp PPS insulation. Soldering was easy thanks to the solder cups. One pin was slightly misaligned out of the box though.
S****r
Exactly as described. The 4-hole flange makes mounting secure, and it handles temperature swings from cold storage to hot machines without issue.
J****r
Good connector overall. Took time to solder all 15 pins neatly, but the PPS insulator gives confidence it’ll last under stress.
K****s
Used in a custom robotics rig—fits perfectly, stays locked, and the -40°C to 85°C range is no joke. Performs flawlessly.
