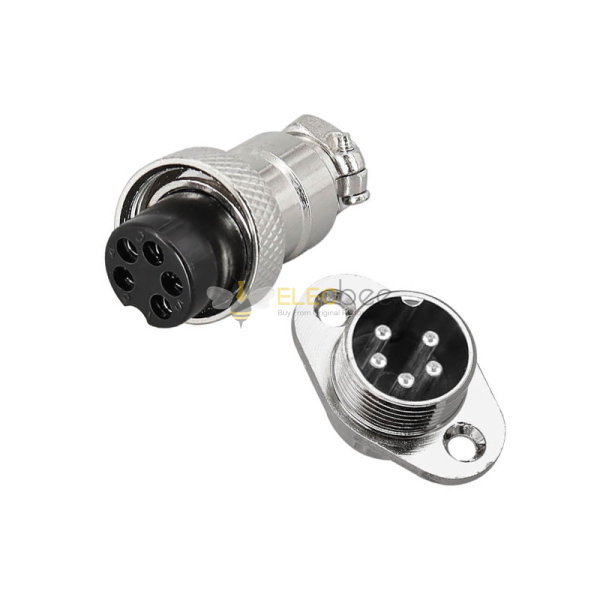

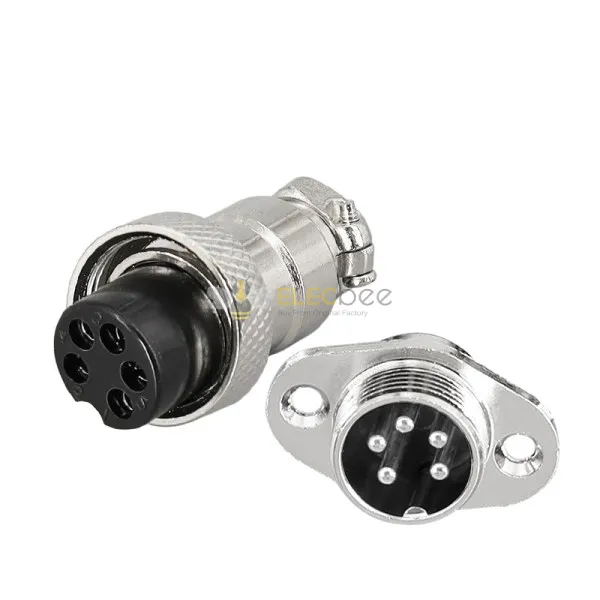

Elecbee GX16 Aviation connector Straight 5 Pin Two Flange Plug, Receptacle (one Pair) Silver Plated
SKU: EB-404-0181-H
Favorites
Key Features
Elecbee GX16 5 Pin plug and receptacle set is designed as an aviation connector for industrial control, instruments and signal wiring in industrial and DIY devices.
The threaded zinc alloy shell, nickel plated finish and Bakelite insulation help keep the circular connector stable during repeated assembly.
The GX16 size class uses a 16 mm circular connector format with straight two flange panel mount and solder cup termination for practical wiring layouts.
silver plated copper alloy contacts, 5A rated current, 125VAC rated voltage, IP54 protection provide dependable performance for low voltage power, signal and control equipment connections.
The threaded zinc alloy shell, nickel plated finish and Bakelite insulation help keep the circular connector stable during repeated assembly.
The GX16 size class uses a 16 mm circular connector format with straight two flange panel mount and solder cup termination for practical wiring layouts.
silver plated copper alloy contacts, 5A rated current, 125VAC rated voltage, IP54 protection provide dependable performance for low voltage power, signal and control equipment connections.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Mounting Feature
Two Flange
Termination
Solder Cup
Contact Type
Male，Female Pin
Shell Finish
Nickel Plated
Number of Positions
5 Pin
Ingress Protection
IP54
Rated Current
5A
Rated Voltage
125VAC
Connector Series
GX16
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Silver Plated
Insulating Materials
Bakelite
Description
