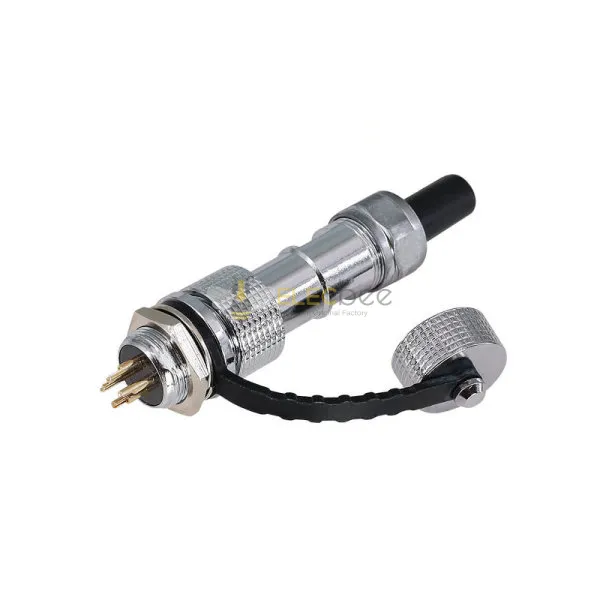

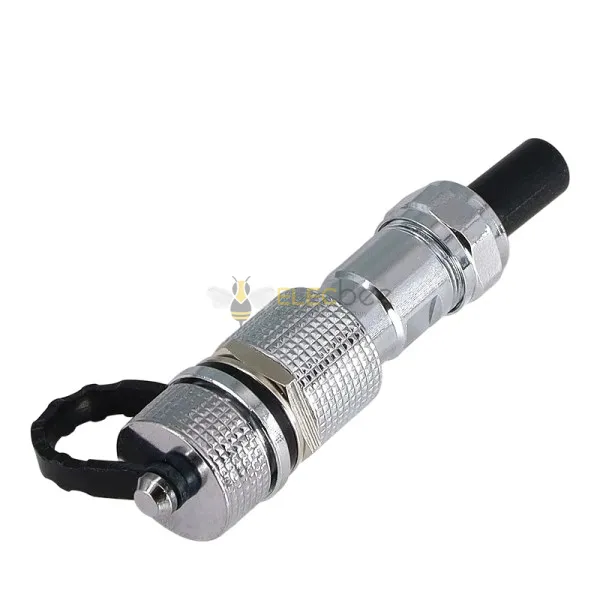

Elecbee GX12 Waterproof Aviation connector Straight 4 Pin Bulkhead - Rear Side Nut Plug, Receptacle (one Pair) Gold Plated
SKU: EB-403-0117-H
Favorites
Key Features
Elecbee GX12 4 Pin plug and receptacle set is designed as a waterproof aviation connector for industrial control, instruments and signal wiring in industrial and DIY devices.
The threaded zinc alloy shell, nickel plated finish and Bakelite insulation help keep the circular connector stable during repeated assembly.
The GX12 size class uses a 12 mm circular connector format with straight rear nut bulkhead panel mount and solder cup termination for practical wiring layouts.
gold plated copper alloy contacts, 5A rated current, 125VAC rated voltage, IP67 protection provide dependable performance for low voltage power, signal and control equipment connections.
The threaded zinc alloy shell, nickel plated finish and Bakelite insulation help keep the circular connector stable during repeated assembly.
The GX12 size class uses a 12 mm circular connector format with straight rear nut bulkhead panel mount and solder cup termination for practical wiring layouts.
gold plated copper alloy contacts, 5A rated current, 125VAC rated voltage, IP67 protection provide dependable performance for low voltage power, signal and control equipment connections.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Rear Side Nut
Termination
Solder Cup
Contact Type
Male，Female Pin
Shell Finish
Nickel Plated
Number of Positions
4 Pin
Ingress Protection
IP67
Rated Current
5A
Rated Voltage
125VAC
Connector Series
GX12
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Bakelite
Description
Related Resources
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4.4
5★
60%(3)4★
20%(1)3★
20%(1)2★
0%(0)1★
0%(0)All reviews come from verified purchasers
S
Perfect for my DIY drone project. The metal housing feels solid and the 4-pin setup made wiring clean and simple. Exactly what I needed.
V
Good quality aviation connector. Soldering was straightforward, and the panel mount fits snugly. Would’ve liked a bit more insulation on pins.
S
Used these in a robotics build—super reliable connection even under vibration. Love the sturdy metal body and clean straight design.
B
Works as advertised, but took a little time to solder neatly. Solid build and good for industrial use. Just needs careful handling during install.
M
Exactly matched my spec needs. The GX12 4-pin configuration is ideal for compact setups. Will definitely buy again.
