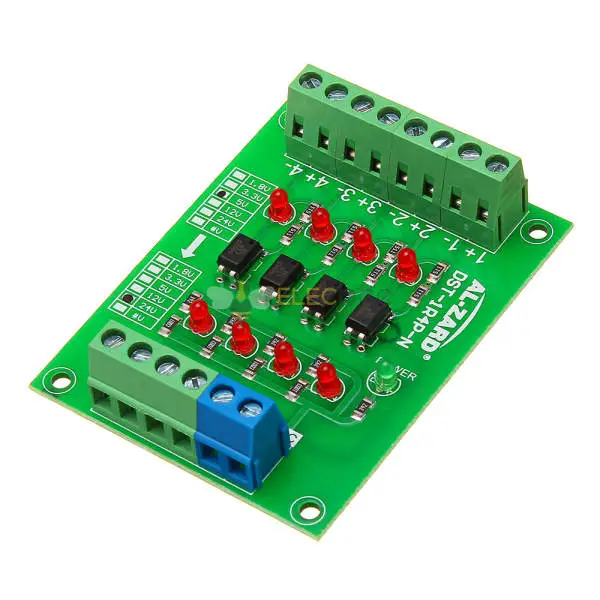

Elecbee 4 Channel 5V to 24V Optocoupler Isolation Module - PLC Signal Level Voltage Converter Board (20KHz, 72x55mm)

SKU: EB0048285

Favorites

Key Features

Key Features:

4-Channel Signal Handling - Simultaneously processes 4 independent signals, ideal for industrial control systems requiring multi-signal isolation and level conversion (boosts efficiency in automation setups).
Optocoupler Isolation Protection - Features optocoupler technology to electrically isolate input and output circuits, preventing voltage spikes/noise interference and ensuring stable signal transmission.
5V-24V Voltage Compatibility - Converts between 5V and 24V levels, bridging PLCs, sensors, and other devices with varying voltage requirements (solves cross-system signal mismatch issues).
Versatile Signal Type Conversion - Supports PNP/NPN to NPN signal conversion, making it adaptable for industrial control systems with mixed signal types (e.g., sensors, actuators).
Compact & Easy Installation - Measures 72×55×18mm with 64×47mm mounting holes (3mm diameter), designed for seamless integration into industrial panels or modular setups. Operates at up to 20KHz for reliable high-frequency signal processing.

Specifications

Show Similar Products >

Attribute

Value

Model

X55MM

Show Similar Products >

Description

1. Limit conversion frequency: 20KHZ.
2. Size: 72*55*18mm
3. Mounting Hole Size: 64*47mm, diameter 3mm.

Application:
1. It can be used for signal isolation
2. PLC signal level converting
3. PNP/NPN signal to NPN signal
4. signal level voltage converter

1 x 5V To 24V 4 Channel Optocoupler Isolation Board
5V-To-24V-4-Channel-Optocoupler-Isolation-Board-Isolated-Module-PLC-Signal-Level-Voltage-Converter-B-1416552
