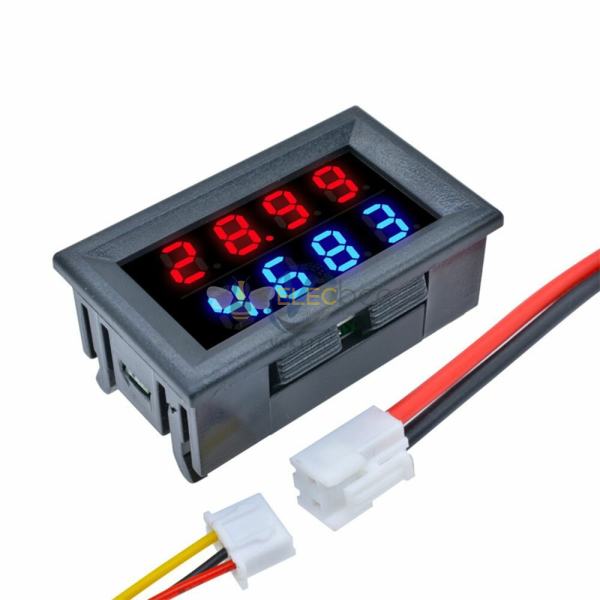

Elecbee 0.28" Mini Dual Display Voltmeter Ammeter - 0-100V/10A DC with LED Panel for Battery Test
SKU: EB0047328
Favorites
Key Features
Key Features:
- Dual-Channel Precision: 4-digit accuracy (0.08%!) measures 0-100V voltage + 0-10A current simultaneously. ±2°C thermal compensation.
- 0.28" Dual LED Display: Red voltage + blue current LEDs visible in sunlight. 1-second triple refresh for real-time monitoring.
- SD Card Sized Design: 48x29x20mm mini body fits 46x27mm panel cutouts. Ideal for battery packs, solar chargers & RC models.
- Safe 4-28V Operation: Self-powered via measured circuit (4-28V). Load MUST connect ONLY to positive terminal!
- Anti-Burn Protection: Reinforced COM terminal handles 10A continuous. Withstands -10°C to 65°C in high-humidity environments.
Show More
Specifications
Attribute
Value
Search
Wireless Capability
Bluetooth
Model
X29X20
Description
High precision: 4-digit
Working voltage: DC 4V-28V
Working current: <20mA
Display: 0.28" Red + Blue Dual LED Display
Voltage Measuring Range: DC 0.000V-100.0V
Current Measuring Range: 0-9.999A
Refresh rate: about 1S / 3times
Operating temperature: -10°C - 65°C
Working pressure: 80 to 106 kPa
Size : 48x29x20 mm
Mounting hole: 46 x 27 mm
Current: Range x 0.08%+Two decimal point
Voltage: Range x 0.08%+Two decimal point
Wiring:
Red line thin: power supply +
Red line (thick): IN+, current input
Yellow line (thick): PW+, measuring terminal voltage input positiv
Black line thick: COM, common measuring
Note:
Please follow the wiring diagram, special attention, the load can only be connected to the positive, not negative! Otherwise burn the table!
1 x DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter
