Elecbee Ethernet Control Module With 16 CHs Relay For LAN WAN WEB Server RJ45 Android iOS

SKU: EB0047727

Favorites

Key Features

xa0

Control switches remotely together with 16 Channel relay!

RJ45 interface, via RJ45 telecommunications connection for network control.

Support for 16 Channels relay which means you could controll more to 16 different devices at the same time.

Unique dual TCP connect control, corresponding with above trait, local as TCP server

accept client control, when connect to remote server as TCP client

Supply core module detailed information

Default IP: 192.168.1.4 prot:30000 xa0 xa0 http://192.168.1.4/30000 xa0 (You could change the default IP address)

Relay: 175 * 90 * 20mm

Relay + controller: 215 * 90 * 25mm

xa0

HTTP comment:

xa0

http://192.168.1.4/30000/00 : Relay-01 OFF

http://192.168.1.4/30000/01 : Relay-01 ON

http://192.168.1.4/30000/02 : Relay-02 OFF

http://192.168.1.4/30000/03 : Relay-02 ON

http://192.168.1.4/30000/04 : Relay-03 OFF

http://192.168.1.4/30000/05 : Relay-03 ON

…

xa0

http://192.168.1.4/30000/30 : Relay-16 OFF

http://192.168.1.4/30000/31 : Relay-16 ON

http://192.168.1.4/30000/41 : Enter

http://192.168.1.4/30000/40 : Exit

http://192.168.1.4/30000/42 : Next Page

http://192.168.1.4/30000/43 : Next Page

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

RJ45

Ethernet

Support

Show Similar Products >

Description

Overview:

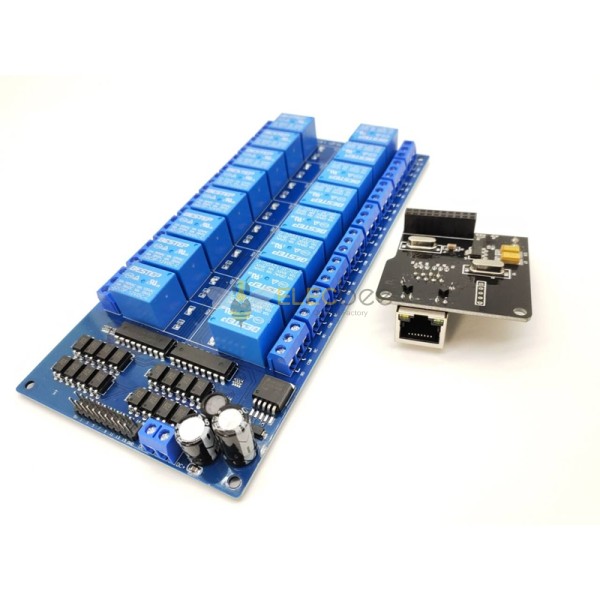

This is an Ethernet Controller board based on Imatic system which could be compatible with the 16 Channels relay.

Using the controller module and the 16 Channels relay, you could control up to 16 devices remotely on LAN or WAN.

The Ethernet Controller board has integrated the web server, when you are on your office, you just need to open the page on your computer, pad or smartphone, and then control your devices like lights, air-conditioning or refrigerator on your home.

You can feel free to enjoy the remote controlling of your other devices with the ethernet controller board.

1 x Ethernet Control Module
1 x 16 channel relay

Wiring, for reference only!

Ethernet-Control-Module-With-16-CHs-Relay-For-LAN-WAN-WEB-Server-RJ45-Android-iOS-1189019
