Elecbee 1 Channel 5v Relay Module High And Low Level Trigger

SKU: EB0046317

Favorites

Key Features

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

FF0000

Show Similar Products >

Description

Description:

Maximum load: AC 250V/10A, DC 30V/10A.

The chip optocoupler isolation, strong driving ability, stable performance, trigger current 5mA.

Working voltage: 5V.

Every channel of the module can be set high or low level trigger by jumper.

Fault tolerant design, even if the control line is disconnect, the relay will not act.

Power indicator (green), 1 relay status indicator (red).

The interface design is humanized, all interfaces can be directly connected through the terminals, so it is very convenient.

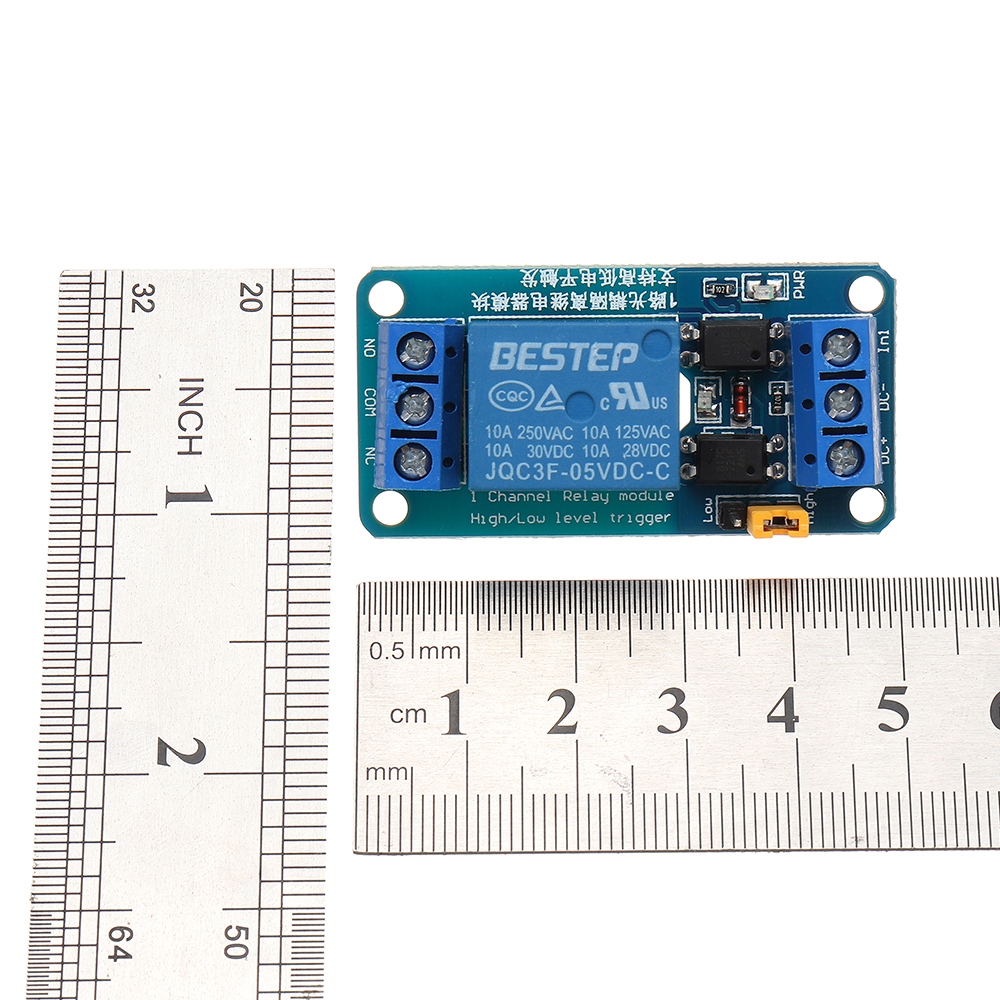

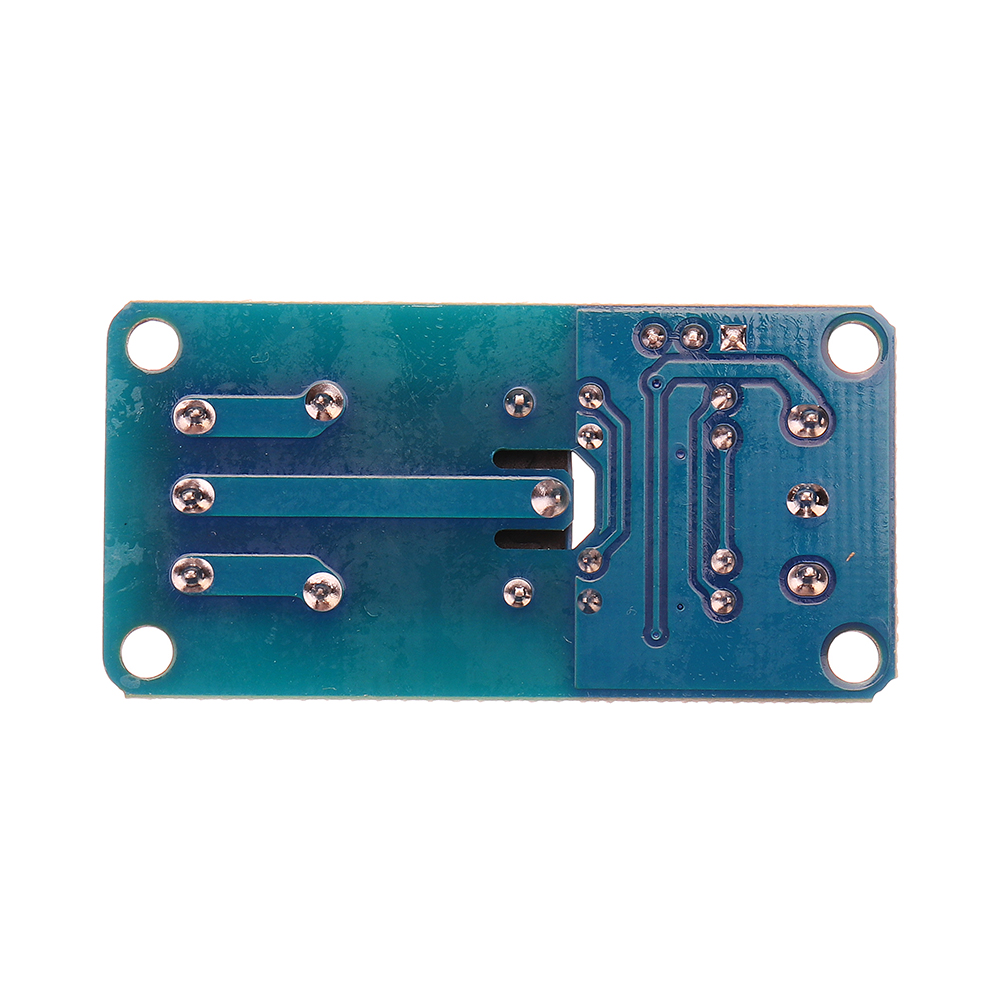

Module size: 50mm x 25mm x 18.5mm (length x width x height).

There are 4 fixed bolt holes, holes 3.1mm, spacing 67mm x 44.5mm.

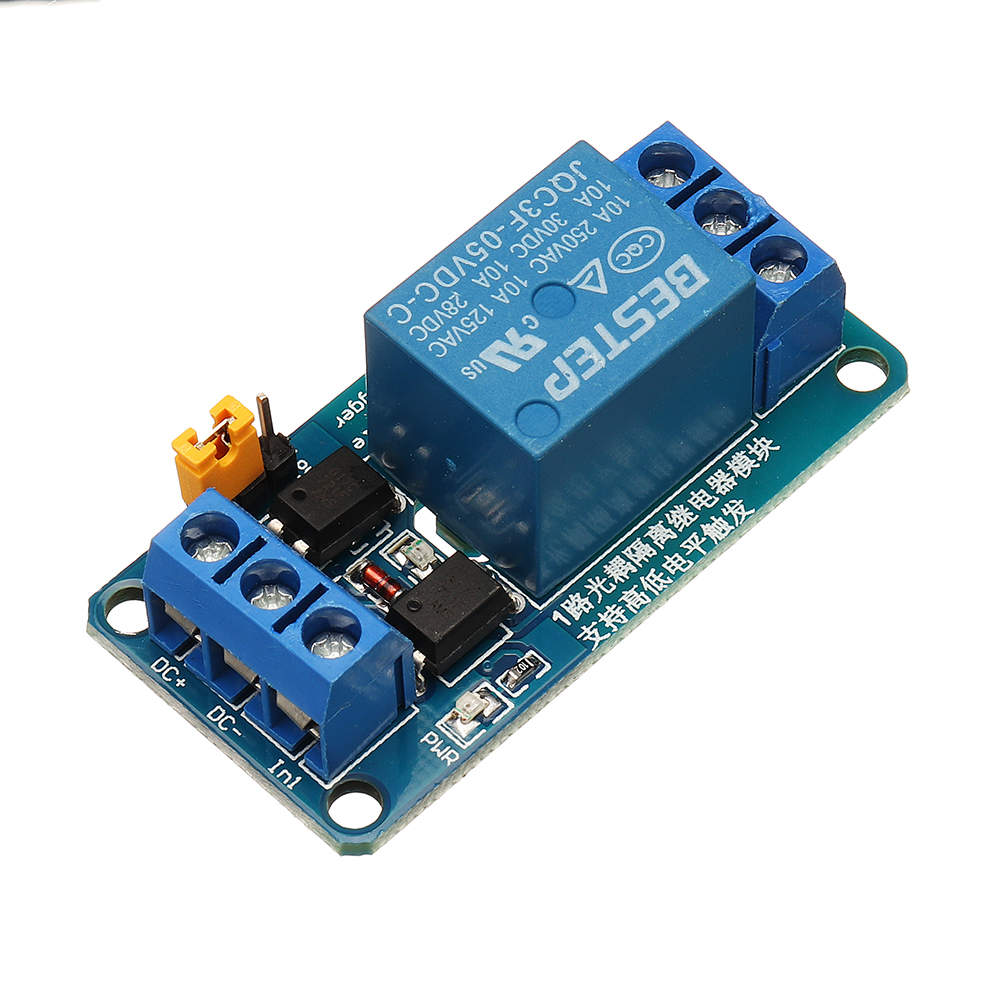

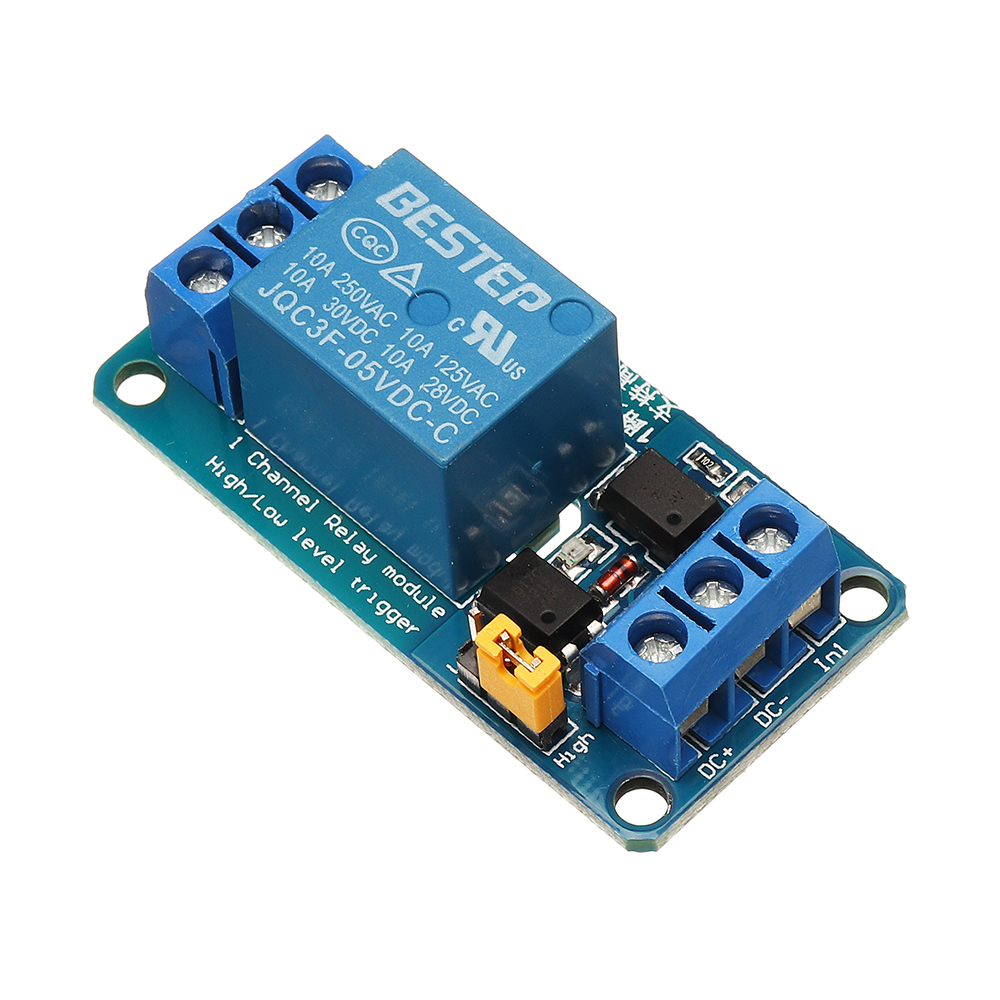

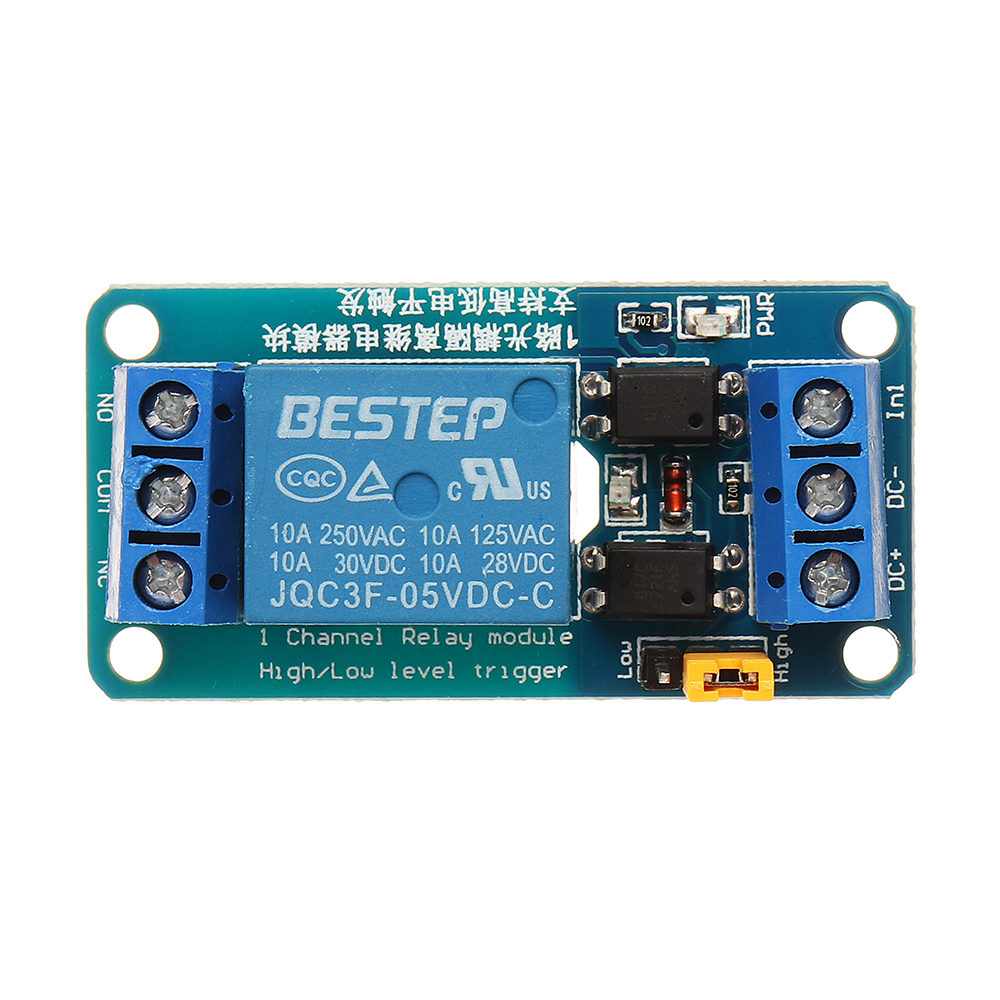

Module interface:

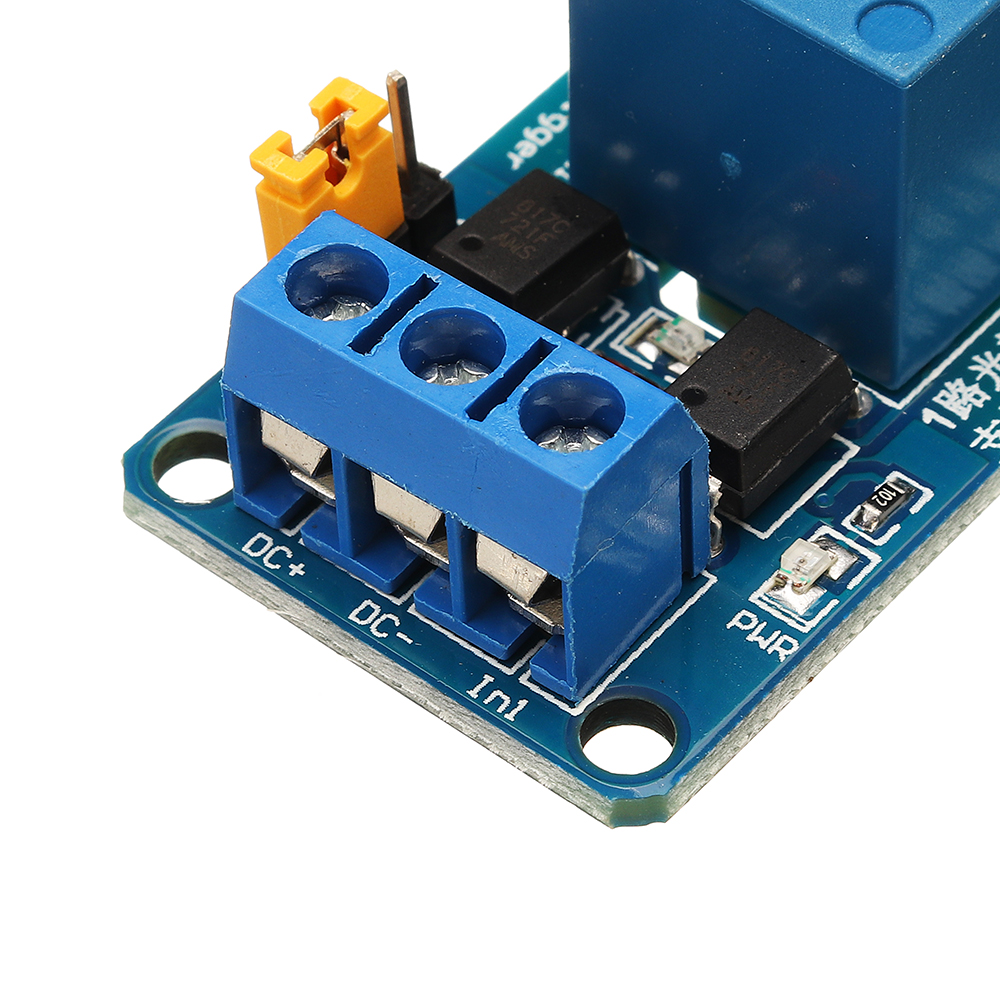

1, DC+: Connect the power positive pole.

2, DC-: Connect the power negative pole.

3, IN1: Can be controlled by high or low level.

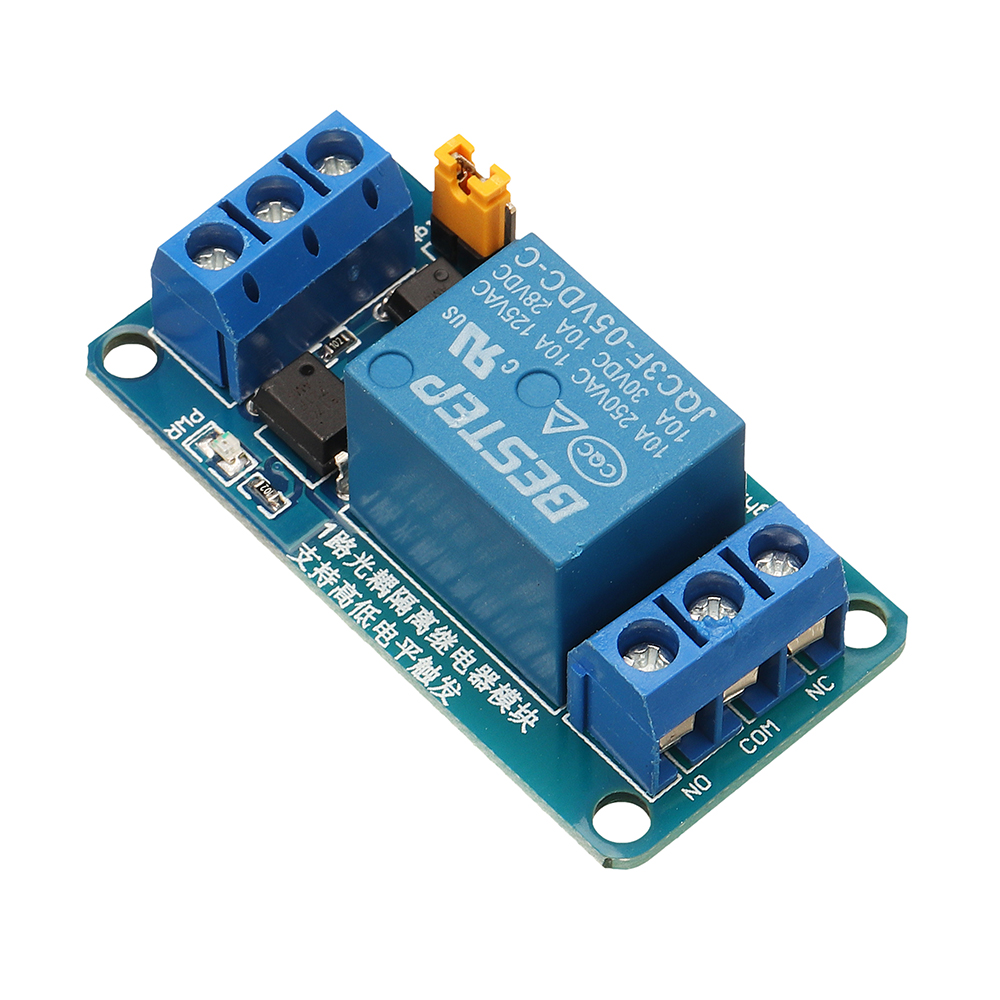

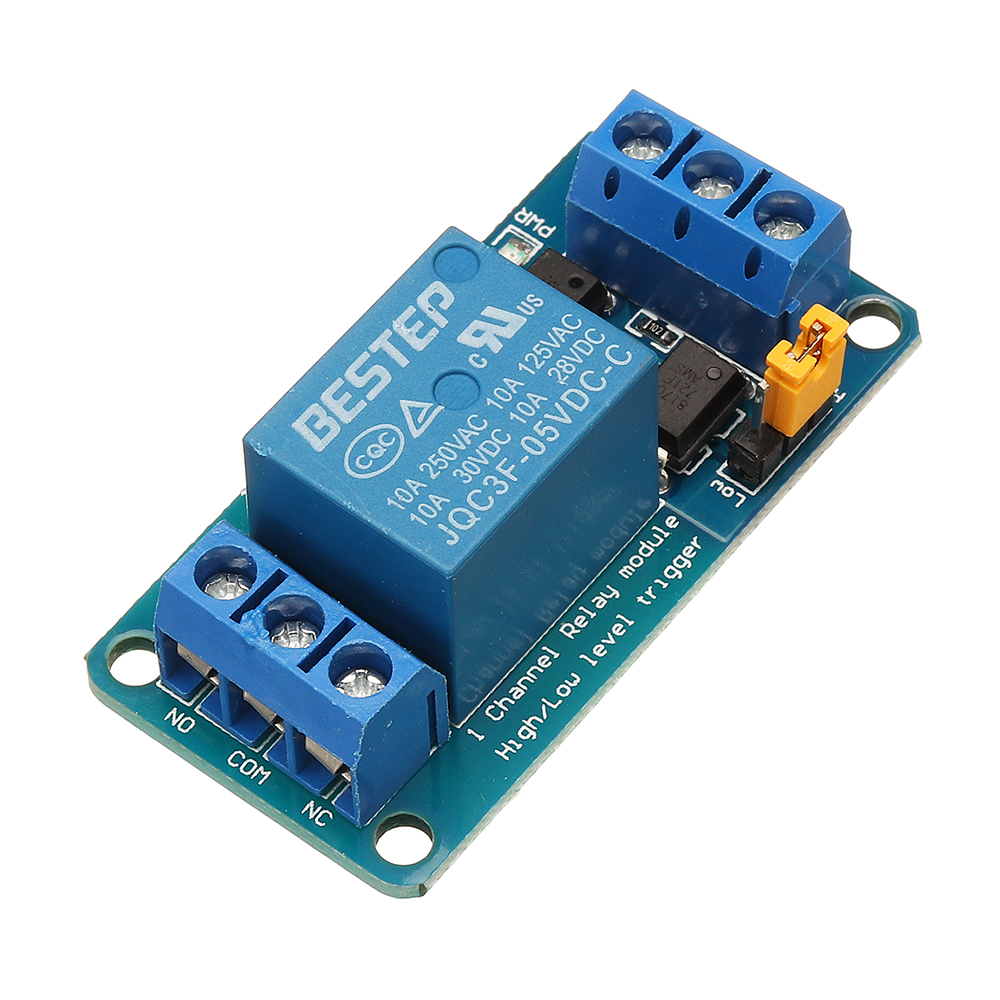

Relay output: there is a 3 wire interface, all interfaces can be directly connected to lead to facilitate user use.

1, NO1: Relay normal open, the relay suspends before pulling in, then short-connect with the COM.

2, COM1: Relay common interface

3, NC1: Relay normal close, short connected with COM before pulling in suspended after pulling in.

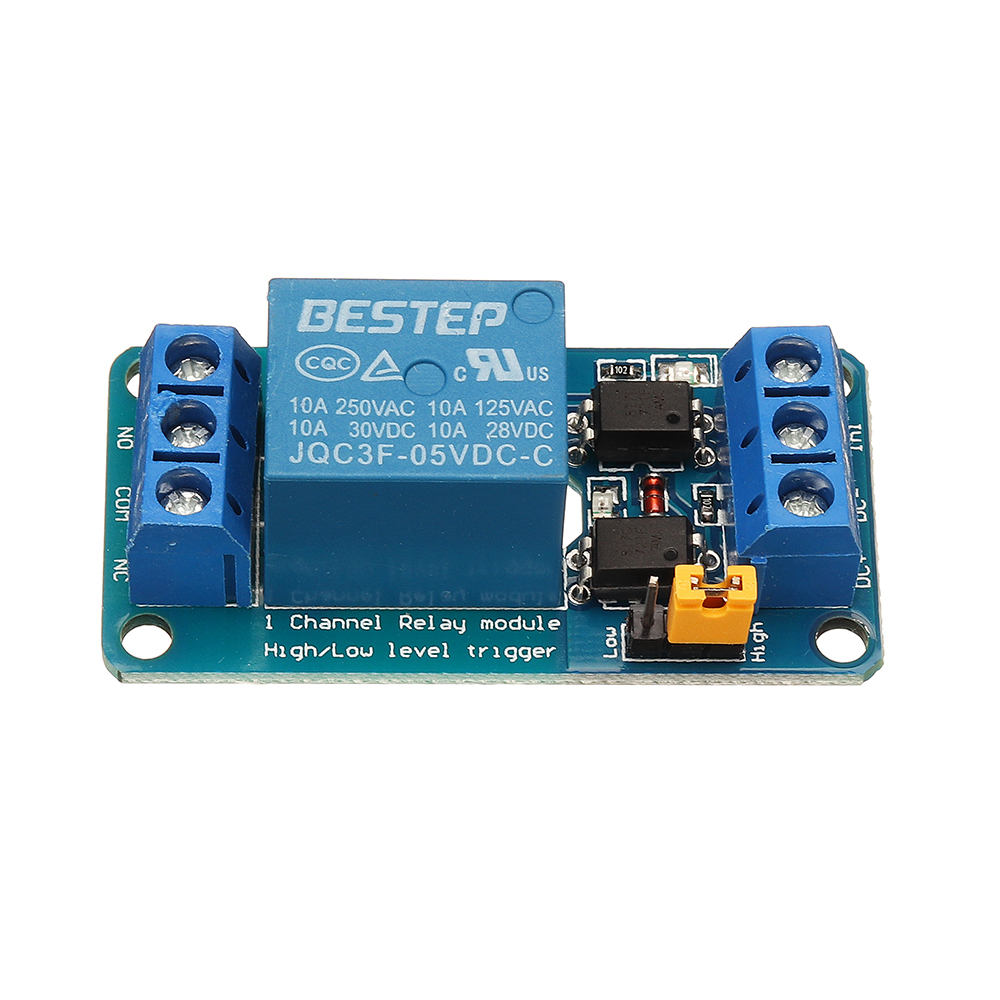

High and low level trigger option:

1. The 3-pin is the high level trigger selection.

2. When COM is short connected with LOW, the corresponding relay is LOW level trigger, while when COM is short connected with high end is high level trigger.

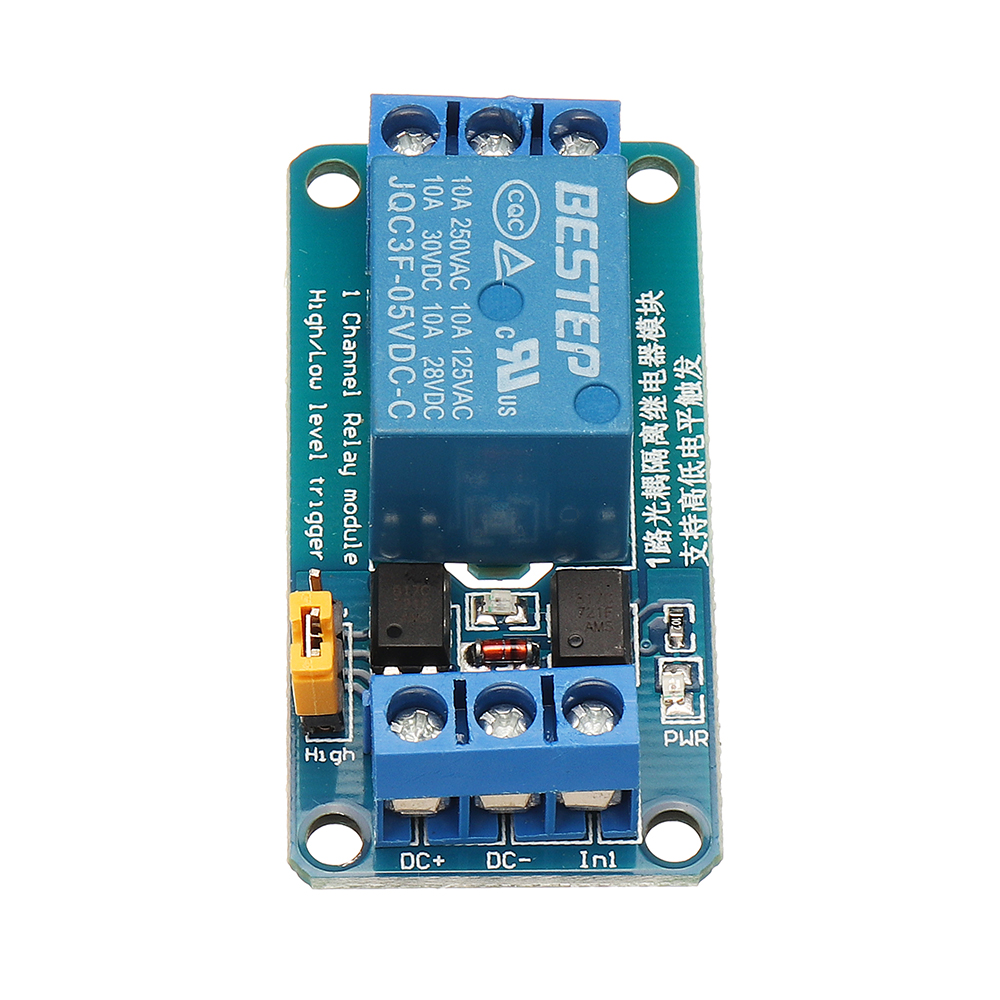

1 x 1 Channel 5V Relay Module
