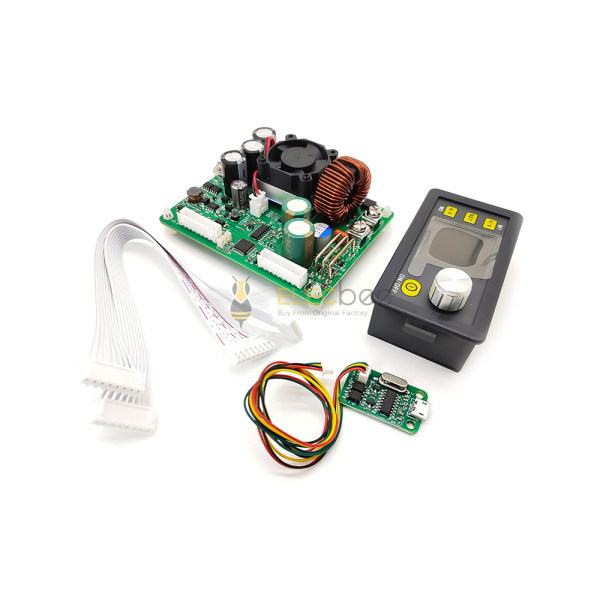

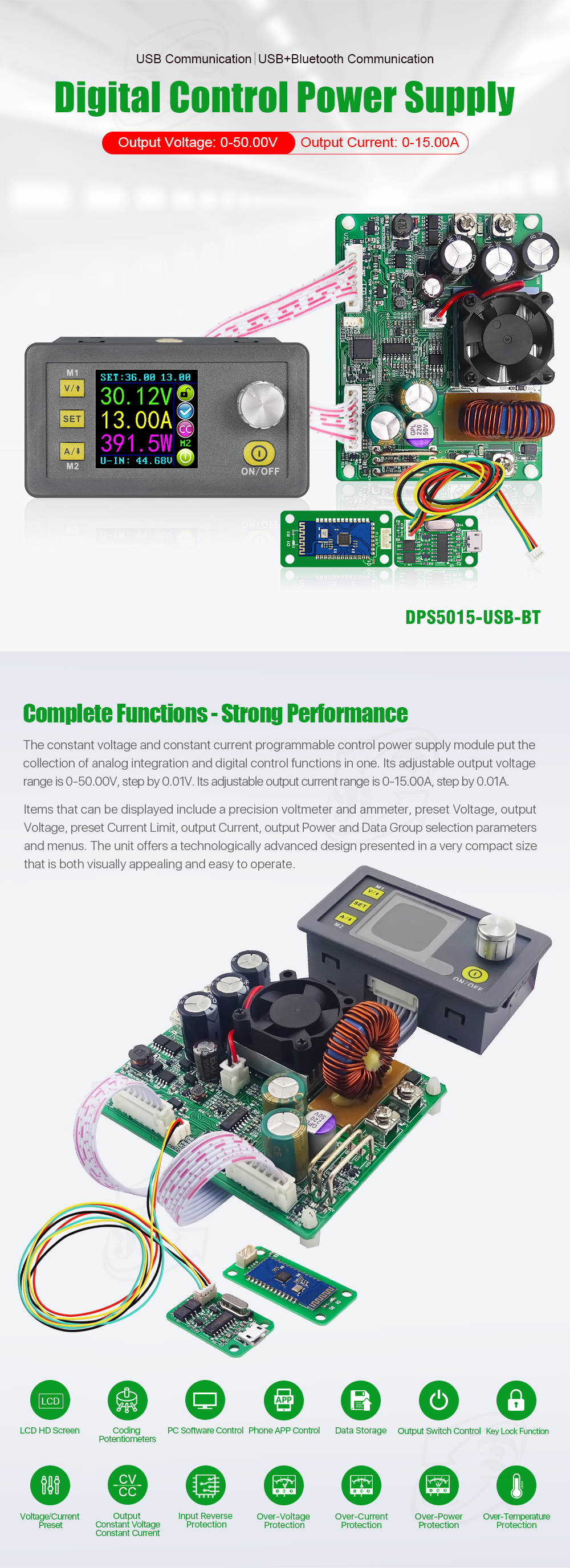

DPS5015 Communication Constant Voltage Current Step Down Digital Power Supply Module Buck Voltage Converter LCD Voltmeter 50V 15A
Contact Sales
Your Name* | |
Your Email* | |
Topic* | |
Qty | |
Message | |
SUBMIT |
- Description
Input voltage range: 6.00-60.00V
Output voltage range: 0V-50.00V
Output current: 0-15.00A
Output power range: 0-750W
Product Weight: about 222g

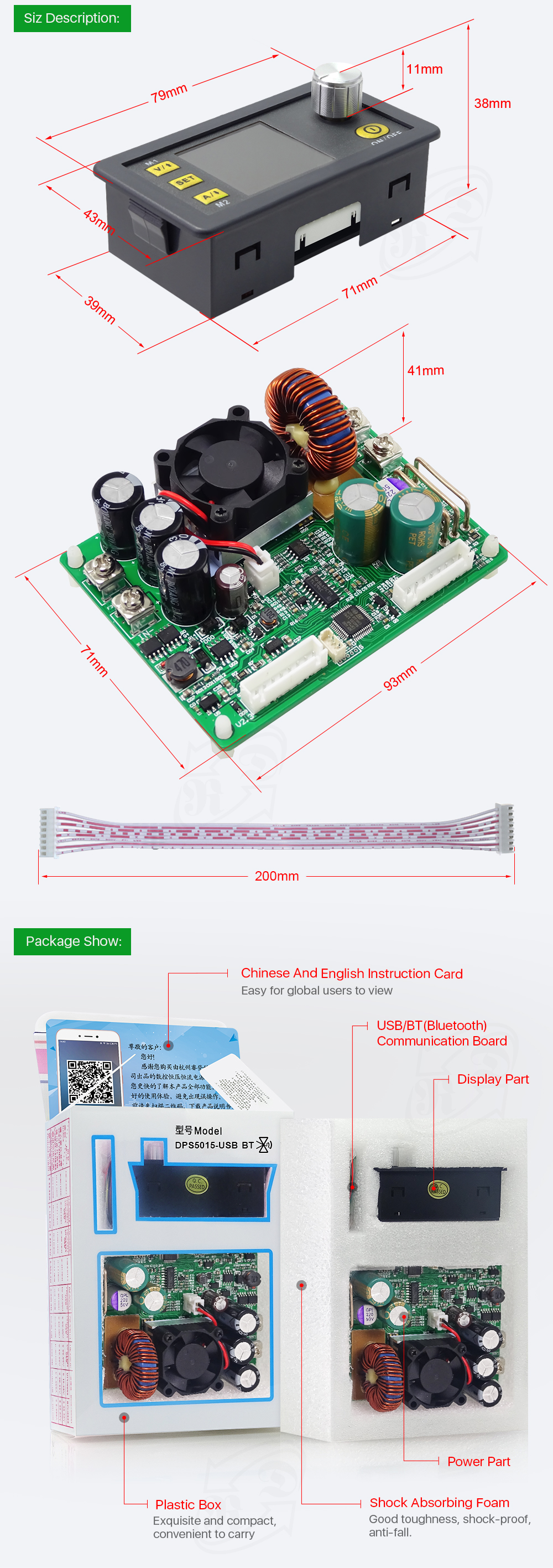

Display module size: 79*43*41(mm) (L*W*H)
Open size: 71mm*39mm
Power module size: 93*71*41(mm) (L*W*H)
Length of connecting line: 200mm
Fixed hole center distance: 86mm, 64mm

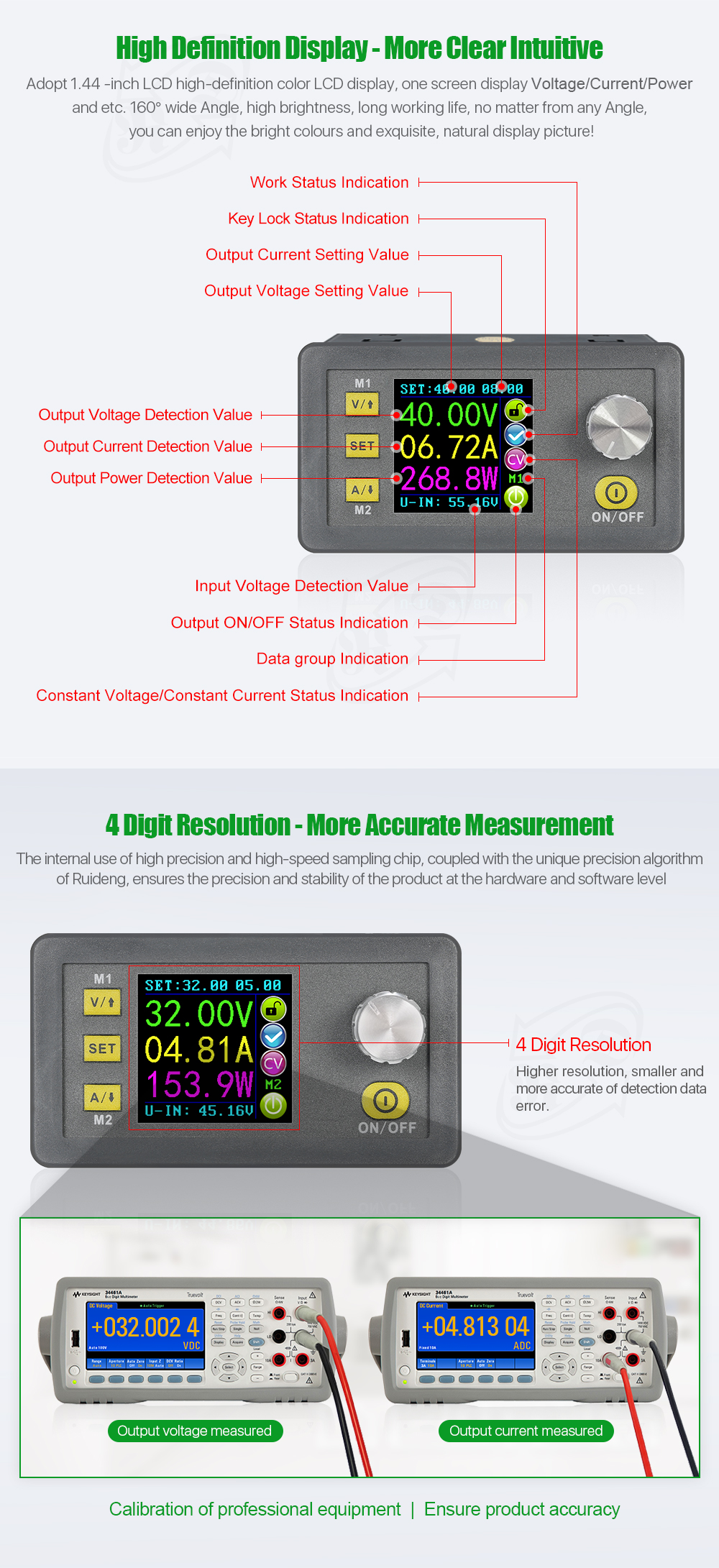

Output voltage resolution: 0.01V
Output current resolution: 0.01A
Output Voltage accuracy: ± (0.5% + 1 digit)
Output Current accuracy: ± (0.5% + 2 digits)
NOTE: 1.You must make sure that the input voltage is 1.1 times higher than output voltage. Under large current circumstances, pay attention to heat elimination.

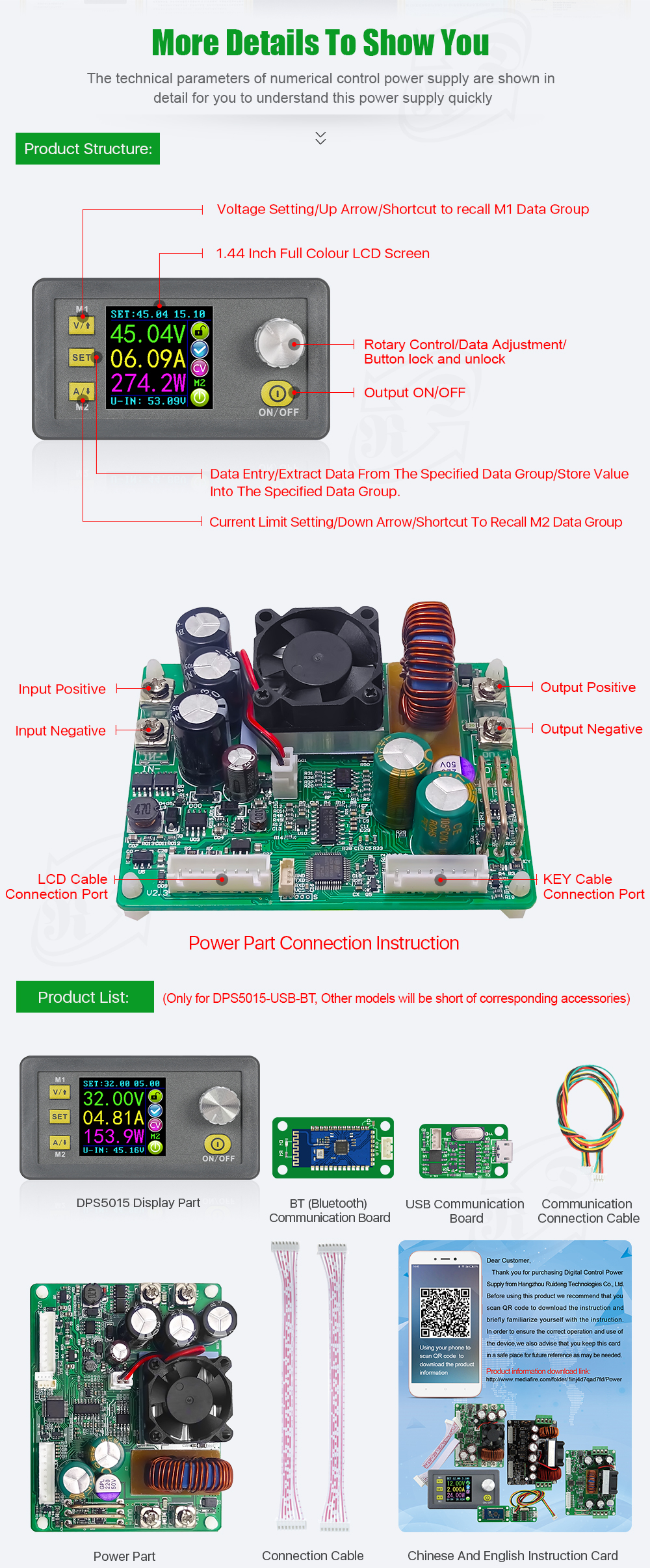

2. Connection between display part and power part should be according to the corresponding words. Otherwise it will not work by wrong connection
DPS3005 (ID: 1161595) | DPS5005 (ID: 1062473) | DPS5015(This item) | DPS5020 (ID: 1181200) | DPH5005 (ID: 1230368) | DPS8005 (ID: 1257198) | ||||||
DP50V5A | DP30V5A | DPS3003 (ID: 1062475) | DPS3012 (ID: 1065235) | DPH3205 (ID: 1105294) | DPS3005 | DPS5005 | DPS5015 | DPS5020 | DPH5005 | DPS8005 | |
DPS3005-USB | DPS5005-USB | DPS5015-USB | DPS5020-USB | DPH5005-USB | DPS8005-USB | ||||||
DPS3005-USB-BT | DPS5005-USB-BT | DPS5015-USB-BT | DPS5020-USB-BT | DPH5005-USB-BT | DPS8005-USB-BT | ||||||
Difference between DP,DPS and DPH | 1. DPS series are updated version. Panel is different. In DPS series, we change the M1/↑and M2/↓ into V/↑and A/↓. You can press those buttons Set the voltage and current fast. We add a new function “set default boot open or close output”Others are not changed. 2. All those power supply can charge the battery directly, don't need external diode. When charging battery, don’t connect battery polarity reversely , otherwise, power parts will bunt. Find the difference between DPS and DP see this video https://img.elecbee.com/eb/download/video/ptt931rrXo8.mp4 3. DP power supply and DPS power supply are all buck (step-down) converter. But DPH3205 and DPH5005 is buck-boost (step-down and step-up) converter. 4. DPS3005, DPS5005 DPS5015, DPS5020, DPH5005 and DPS8005 have communication version. You can connect PC and use upper computer. | ||||||||||
Communication function | NO | NO | NO | NO | NO | Yes | Yes | Yes | YES | YES | YES |
Working mode | Buck | Buck | Buck | Buck | Buck-Boost | Buck | Buck | Buck | Buck | Buck- Boost | Buck |
Input voltage | 6-55V | 6-40V | 6-40V | 6-40V | 6-40V | 6-40V | 6-55V | 6-60V | 6-60V | 6-50V | 10-90V |
Output voltage | 0-50.00V | 0-32V | 0-32V | 0-32V | 0-32V | 0-32V | 0-50V | 0-50V | 0-50V | 0-50V | 0-80V |
Output current | 0-5.000A | 0-5.000A | 0-3.000A | 0-12.00A | 0-5.000A | 0-5.000A | 0-5.000A | 0-15.00A | 0-20.00A | 0-5.000A | 0-5.000A |
Output power | 0-250W | 0-160W | 0-96W | 0-384W | 0-160W | 0-160W | 0-250W | 0-750W | 0-999.9W | 0-250W | 0-400W |
Voltage resolution | 0.01V | 0.01V | 0.01V | 0.01V | 0.01V | 0.01V | 0.01V | 0.01V | 0.01V | 0.01V | 0.01V |
Current resolution | 0.001A | 0.001A | 0.001A | 0.01A | 0.001A | 0.001A | 0.001A | 0.01A | 0.01A | 0.001A | 0.001A |
Product size | 79*43*38mm (display part)| 93*71*41(power module) Only DPS5020/DPS5015/DPS3012/DPH5005/DPH3205 has power module | ||||||||||
Screen | Color LCD | ||||||||||
Fan | NO | NO | NO | YES | YES | NO | NO | YES | YES | YES | NO |
Charge the battery | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |

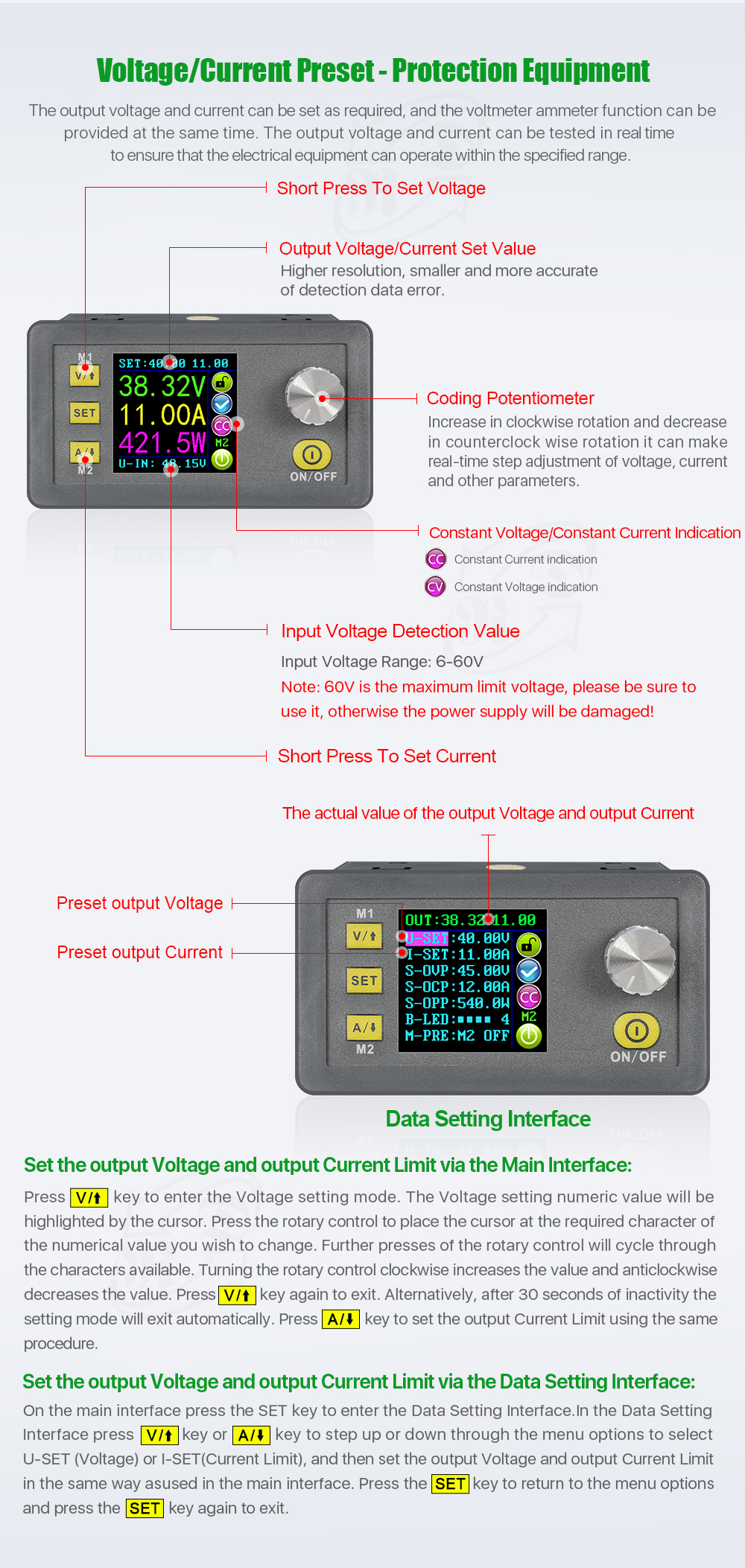

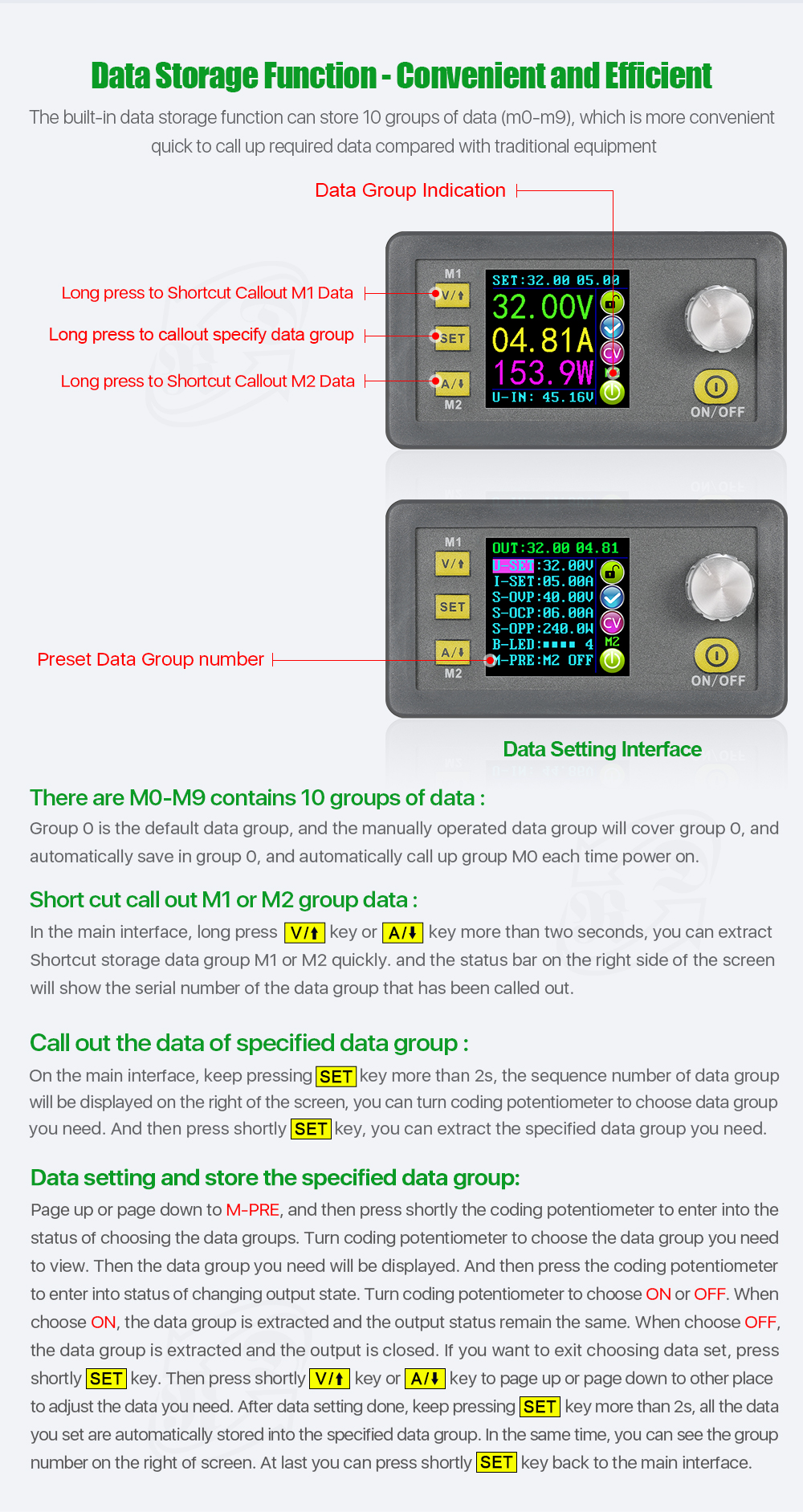

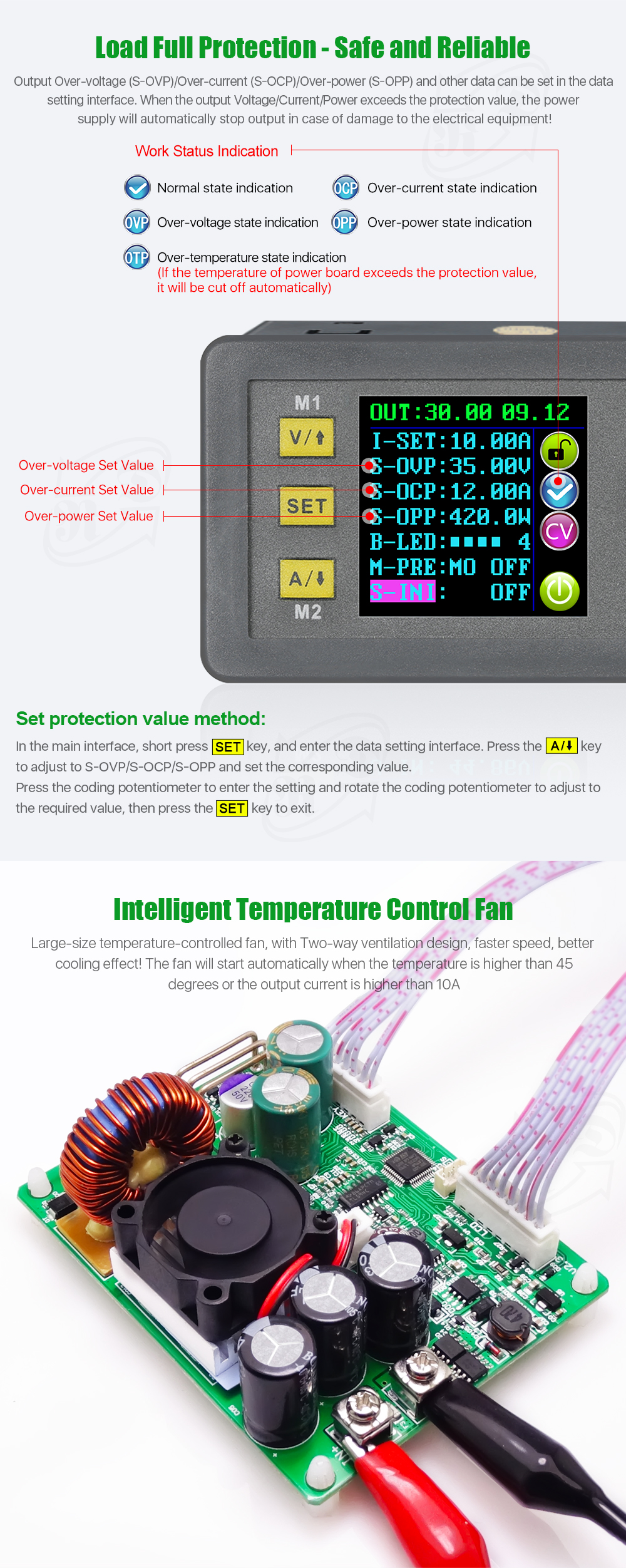

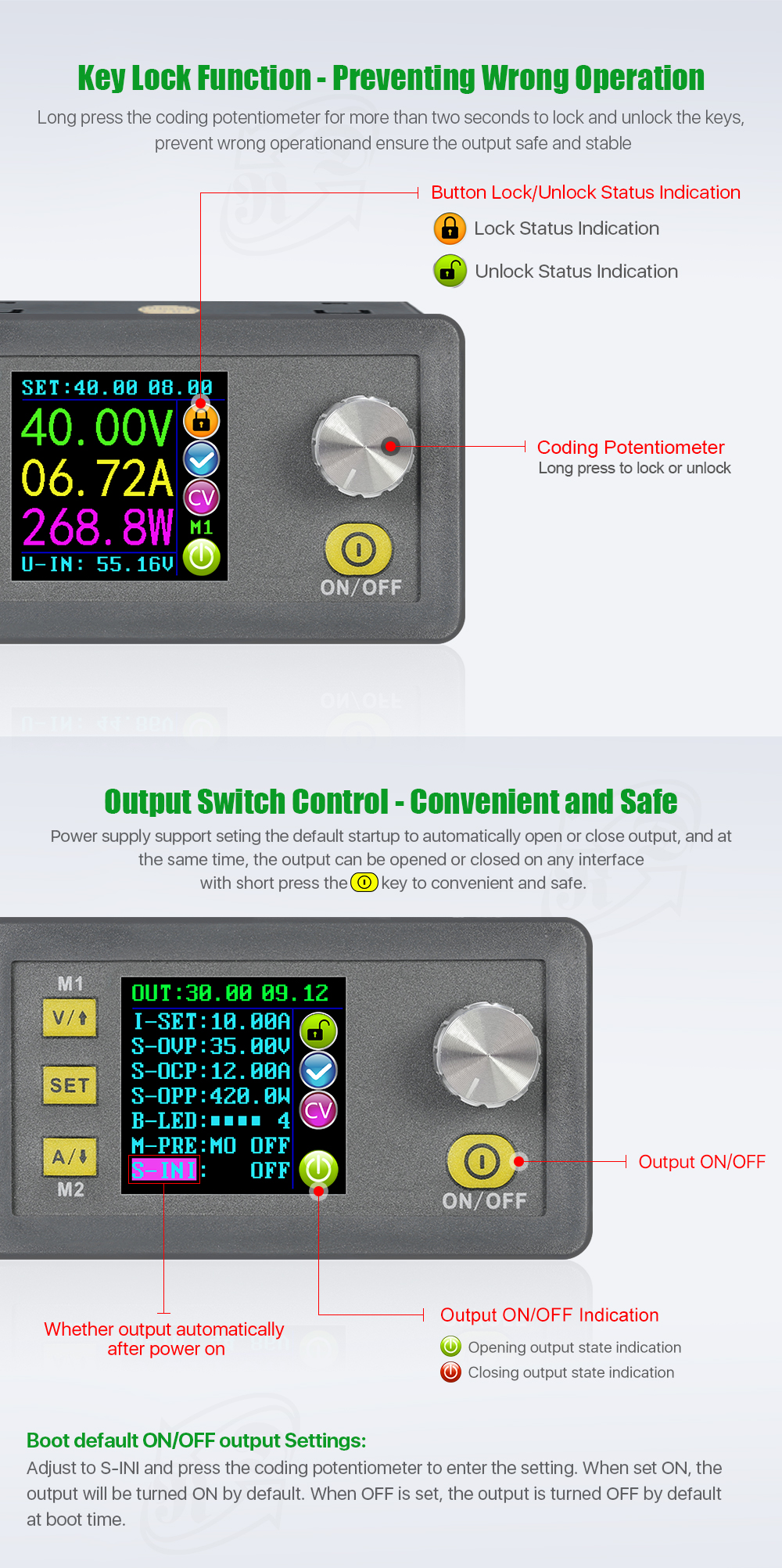

Function | ·Preset output voltage / current(in two places by SET KEY) ·Preset protection value ·6 running status icons ·Key lock ·Data setting and store the specified data group ·Store shortcut storage value ·Exact shortcut M1 or M2 or specified data group ·Adjust LCD brightness ·Open or close output ·10 data groups | · Preset output voltage / current(in two places, by V,A button and SET KEY) · Preset protection value · 6 running status icons · Key lock · Data setting and store the specified data group · Store shortcut storage value · Exact shortcut M1 or M2 or specified data group · Adjust LCD brightness · Open or close output · 10 data groups · Set default boot open or close output |
File download:

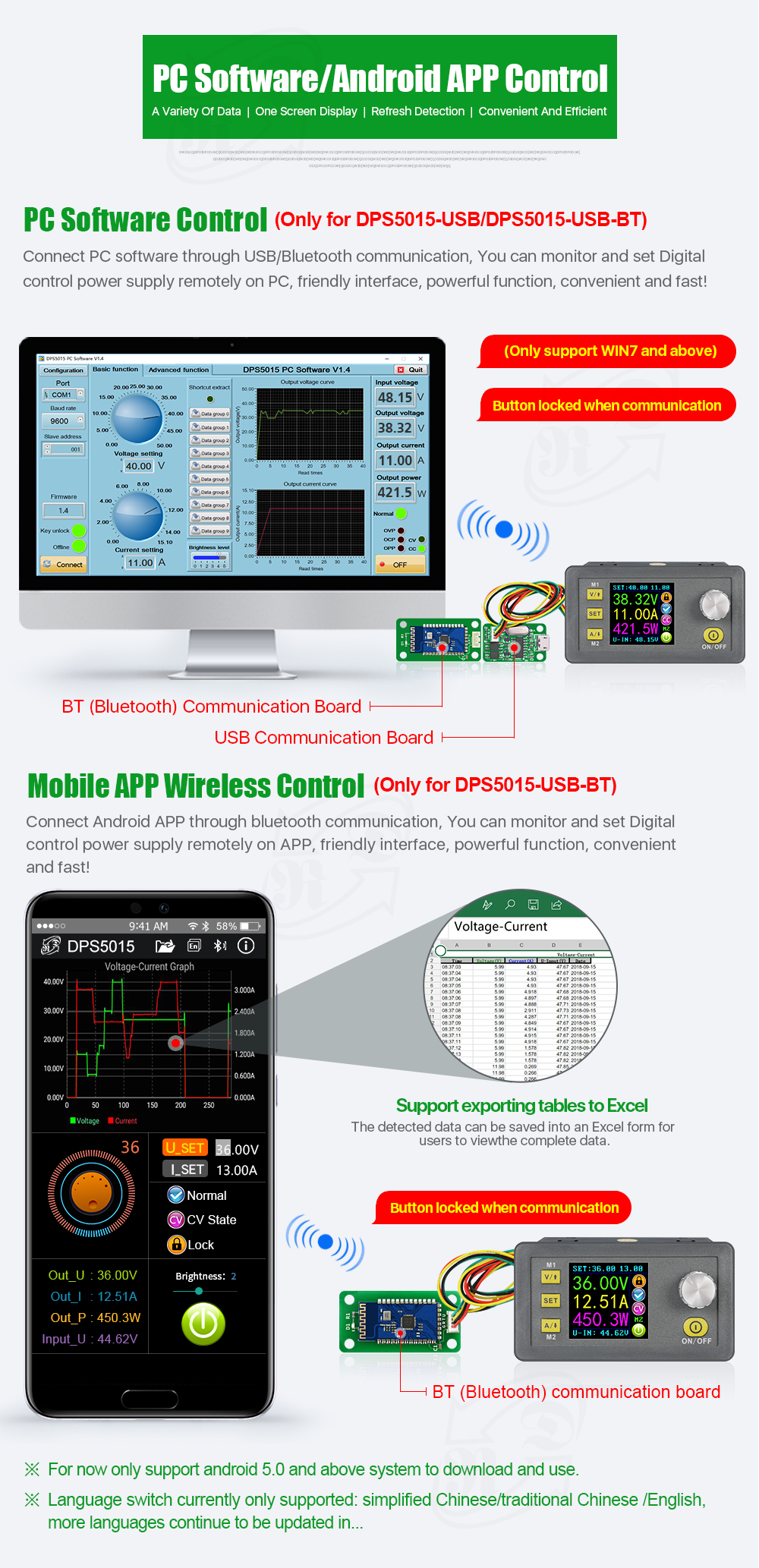

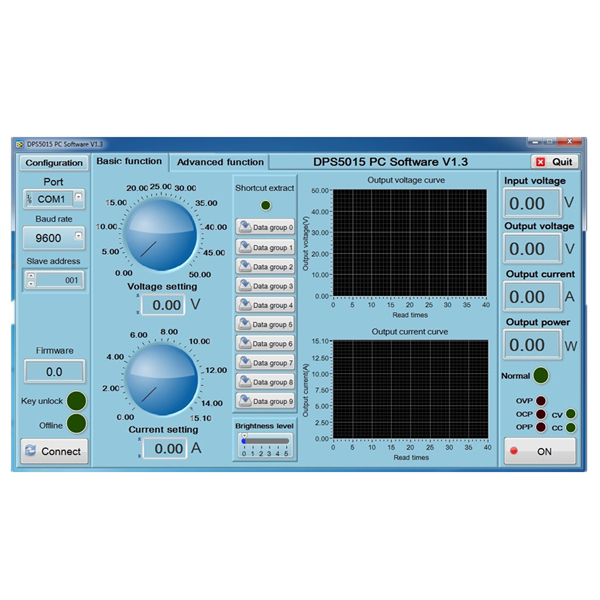

1. DPS5015 operation instruction, PC software and PC software instuction , android phone APP
A: Main download link: https://img.elecbee.com/eb/download/zip/DPS5015_file.zip
B: Backup download linlk: https://drive.google.com/open?id=1hlQc_70kWb7vsDONBj4MQiU4l1sU0cMm
2. PC software (only support For Win7 and above) download link: https://img.elecbee.com/eb/download/zip/DPS5015_file.zip or https://drive.google.com/open?id=1hlQc_70kWb7vsDONBj4MQiU4l1sU0cMm
3. APP download link :
Android phone APP (support android 5.0 and above): https://img.elecbee.com/eb/download/zip/DPS5015_file.zip
4. For 5015-USB-BT Case C2, that is DPS5015 USB BT and case suitable for DPS5015 USB BT,
The installation struction: (suitable for with power module part product): https://www.mediafire.com/folder/rsbgws8grh6zo/communication_metal_houing_with_power_board
and similar Installation video: https://img.elecbee.com/eb/download/video/ENZg4yTjhnY.mp4
5.Upper computer installation, connection by USB and Bluetooth video: https://img.elecbee.com/eb/download/video/7BL6KmY4x-A.mp4
Android phone APP video show: https://img.elecbee.com/eb/download/video/mX1oO1a1nGs.mp4
