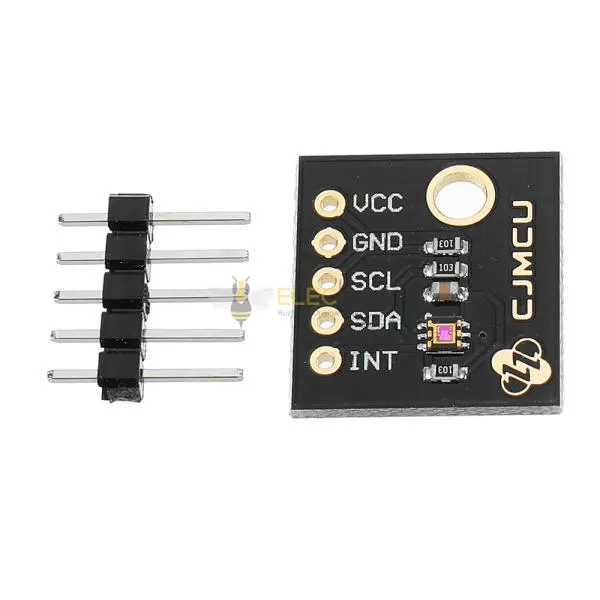

Elecbee -6035 VEML6035 Ambient Light Sensor 16-bit Low Power Consumption High Sensitivity CMOS Module Board

SKU: EB0043266

Favorites

Key Features

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth + Cellular

Model

VEML6035

Show Similar Products >

Description

Instruction:

VEML6035 is a 16-bit low-power, high-sensitivity CMOS operating ambient light sensor through simple I2C commands. The sensor has an active interrupt function. Trigger to remove the load on the host outside the threshold window setting. The average active power consumption is about 300uW.

VEML6035 includes a photodiode, amplifier and analog / digital circuit in a single chip. The sensor has excellent temperature compensation ability to keep the output stable under temperature changes and its refresh rate setting does not require external RC low recitation filtering. There is a programmable shutdown mode to reduce the current consumption to 0.5uA.

Parameters:

Working voltage: 1.7 ~ 3.6V (recommended 3.3V)

Communication connection: 12C connection (up to 400KHz)

Operating temperature: -25 ~ 85 ℃

Resolution: 16 bits

Flicker noise suppression: 100Hz and 120Hz

Lens transmittance: 0.0004 lux / bit

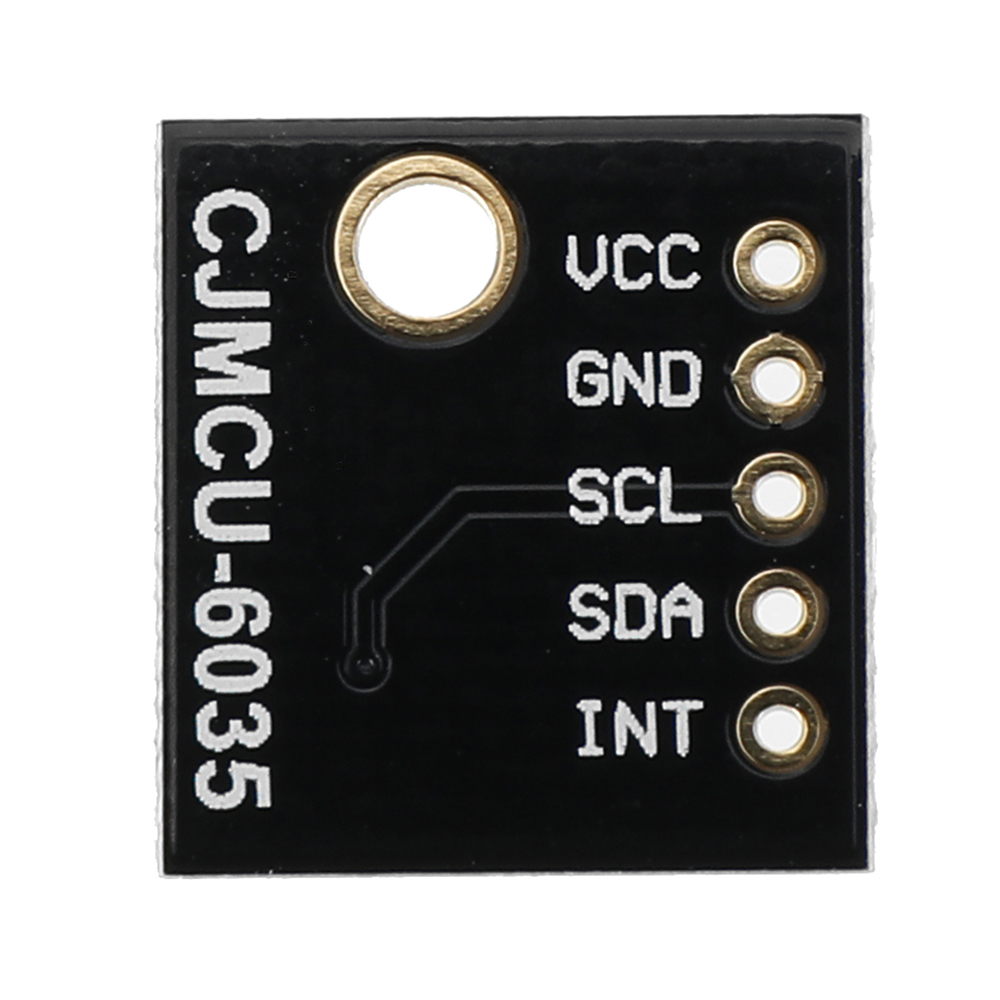

Pin Description:

VCC: Power supply is positive

GND: Ground

INT: Interrupt pin

SCL: I2C serial clock line

SDA: I2C serial data line

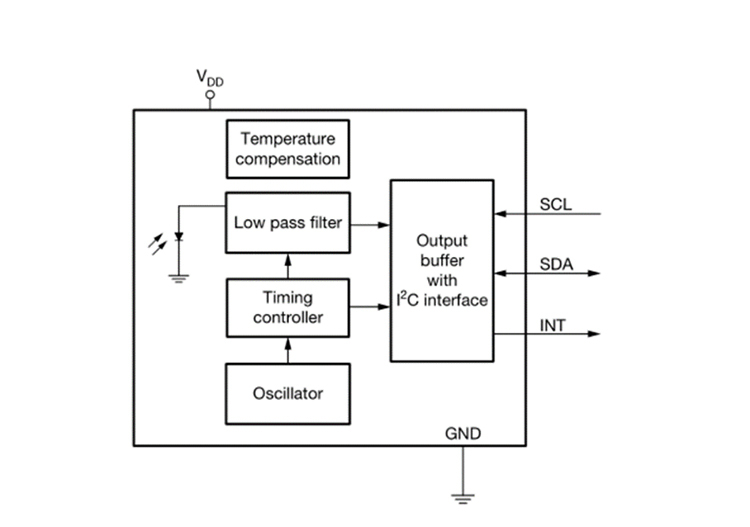

Functional block diagram:

CJMCU-6035-VEML6035-Ambient-Light-Sensor-16-bit-Low-Power-Consumption-High-Sensitivity-CMOS-Module-B-1685132

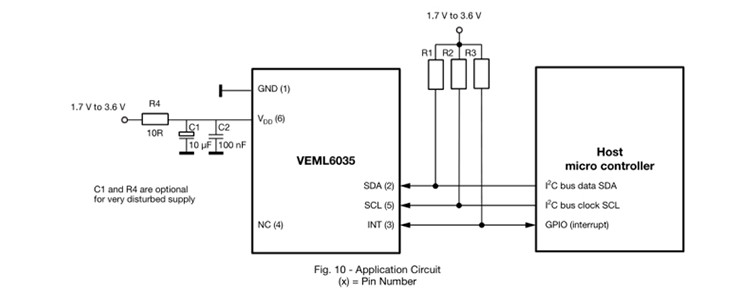

Typical application circuit:

VEML6035 has a fixed slave address for host programming and access selection. The predefined 7-bit I2C bus address is set to 0100001 = 0x29. The least significant bit (LSB) defines the read or write mode. Correspondingly set the bus address and 01010010 = 52h when writing, 01010011 = 53h when reading. Module C has a pull-up resistor, so the user does not need to pull it up again.

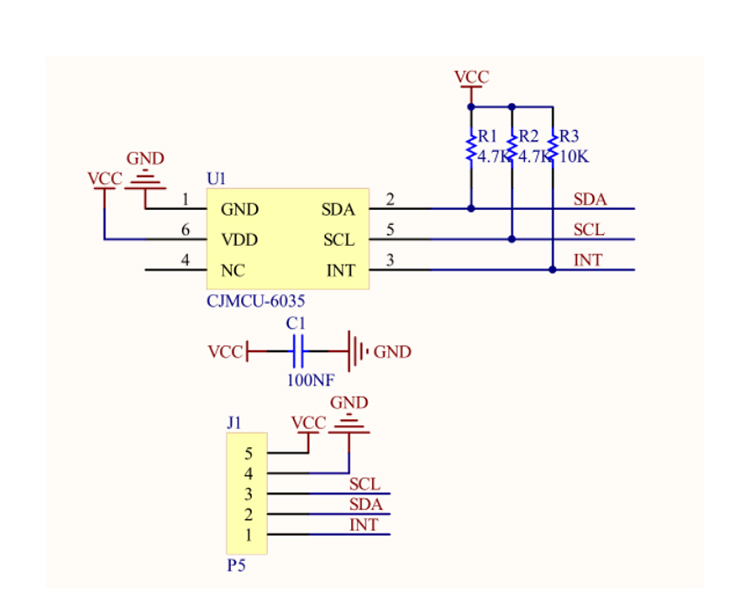

Schematic diagram:

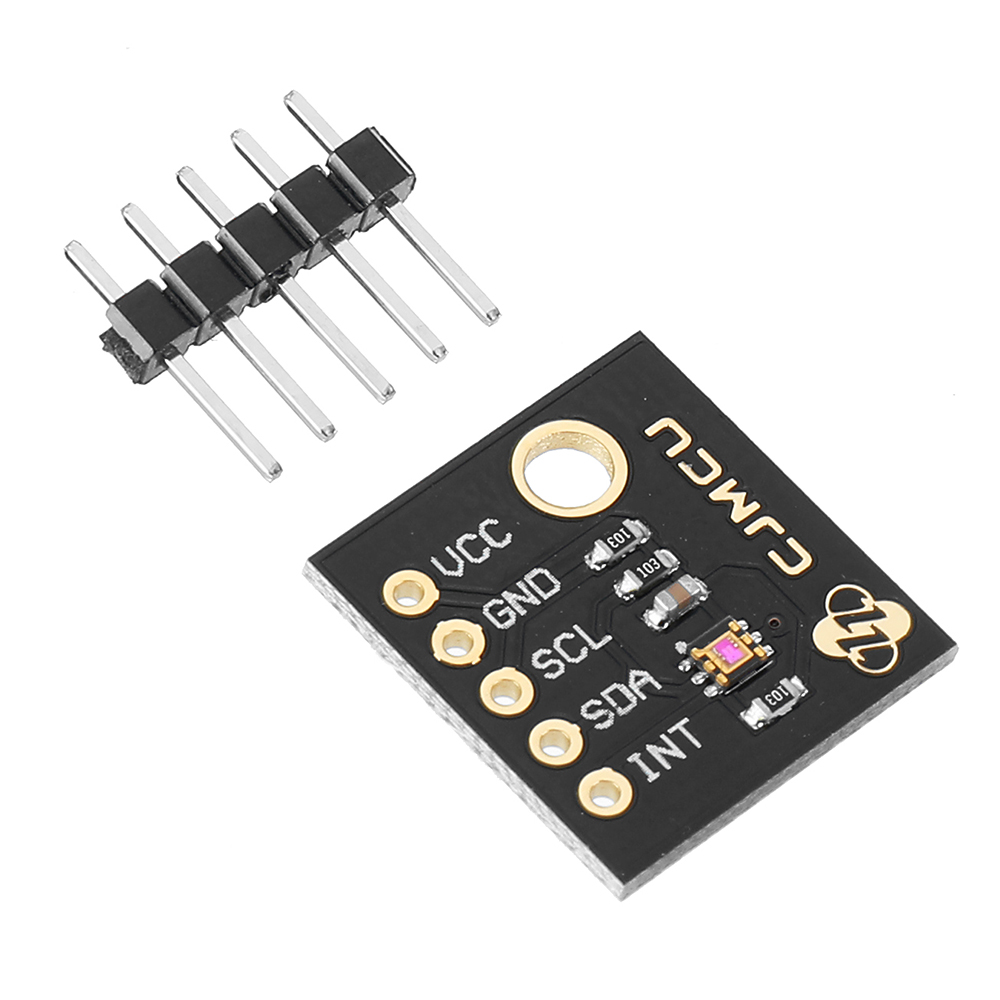

1 x Sensor module with pin

CJMCU-6035-VEML6035-Ambient-Light-Sensor-16-bit-Low-Power-Consumption-High-Sensitivity-CMOS-Module-B-1685132
