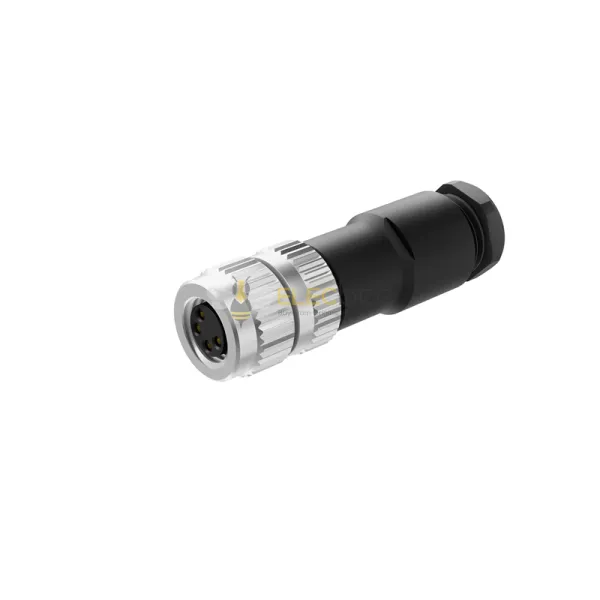

Elecbee M8 4Pin Field Wireable Connector Straight Female Assemble Type Unshiled Plug
SKU: EB-400-1072
Favorites
Key Features
Features:
- M8, 4pin, Field Wireable , Female, Straight, Solder Type, Non-Shield
- thread locking mechanism, 8mm threaded joint;
- anti vibration locking design;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Show More
Specifications
Number of Positions:
3 Pin4 Pin5 Pin6 Pin8 Pin Datasheet
In-Stock
Qty.
1
Unit Price
$ 3.74
Ext. Price
$ 3.74
$ 3.74
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder Cup
Contact Type
Female Pin
Number of Positions
4 Pin
Operating Temperature
-20℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67 (Mated)
Rated Current
3A
Rated Voltage
50VAC, 60VDC
Connector Series
M8
Color
Black
Fastening Type
Threaded
Orientation
Straight
Shell Material
PA66
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
Black
Key
A Code
Wire Gauge
24AWG
Description
M8 · SOLDER CUP · UNSHIELDED · STRAIGHT & RIGHT ANGLE
M8 Solder-Cup Field-Wireable Connectors
Choose the fit.
Solder it on site.
Build an M8 cable connection with solder-cup contacts. Choose a straight or right-angle body, then match the male or female mating face to your equipment.
- M8 × 1Threaded coupling
- Solder cupWire termination
- UnshieldedHousing configuration
- IP67When correctly mated
HOUSING & FIT
Four housing options.
Choose the mating face, then the cable exit. Straight and right-angle versions share the contact options below.
Straight female
Rear cable exit
Approx. 40 mm along the mating axis
Right-angle male
90° cable exit
Approx. 36 mm along the mating axis
Right-angle female
90° cable exit
Approx. 31 mm along the mating axis
Dimensions in millimetres. Body photos are representative; the selected product determines contact count and coding.
MATERIALS & CONSTRUCTION
Shared materials. Two cable routes.
Both bodies use a separate contact insert, seal and rear gland. The angled housing turns the cable outlet through 90°.
- Gold-plated brass contacts
- Individual wires solder into the rear contact cups.
- PA66 housing
- Straight and angled polymer bodies enclose the soldered terminations.
- Nickel-plated brass coupling
- The threaded coupling secures the mating connection.
- Insulating insert
- The PA66-based insert supports and separates the contacts.
- Black NBR seal and cable gland
- The seal, pinch ring and rear gland fit around the cable jacket.
CONTACTS & ELECTRICAL DATA
Match the mating face.
Select coding and contact count together.
A-coded · 3 contacts
Mating-face view
A-coded · 4 contacts
Mating-face view
B-coded · 5 contacts
Mating-face view
A-coded · 6 contacts
Mating-face view
A-coded · 8 contacts
Mating-face view
Front views of the mating faces. Check pin numbering before soldering.
- Contact resistance
- ≤5 mΩ
- Insulation resistance
- ≥100 MΩ
BEFORE ASSEMBLY
Match. Solder. Seal.
01
Match the interface
Check male or female, coding and contact count.
02
Prepare the wiring
Use the listed wire gauge and the numbered solder cups.
03
Plan the cable route
Allow rear clearance for a straight body or side clearance for the 90° outlet.
