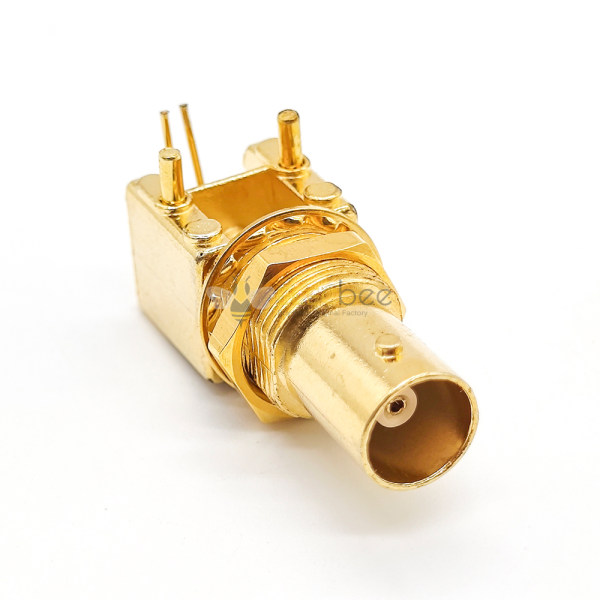

Elecbee BNC Connector PCB Mount Right Angled Female Through Hole Gold Plating
SKU: EB-001-0137
Favorites
Key Features
Product features:
- BNC Connector, Female/Jack,RF Connector, Angled/90°, PCB Mount,Through Hole,Gold Plating ;
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications: Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Technology Equipment, Instrumentation, CCTV, CATV, HDTV, etc.
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50/75 Ohms
Frequency Max
4 GHz
Connector Series
BNC
Color
Silver
Fastening Type
Bayonet
Orientation
Right Angled
Shell Material
Zinc Alloy
Packing
Individual Packaging
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PTFE
Cable Diameter
2.14mm
