Elecbee Yagi Antenna (Full Band, 50 Ohm, SureCall SC-230W)

SKU: E-201-2507

Favorites

Key Features

Description

Product Description

Full band Yagi Directional Antenna SureCall SC-230W operates on 50 Ohm systems. It is also more accurately called a log-periodic dipole array or LPDA antenna because it covers a wider frequency spectrum than traditional Yagi antennas.

Sure-Call SC230W provides antenna reception Gain of 10 dBi on 698 MHz to 960 MHz frequency and 11 dBi on 1710 MHz to 2700 MHz frequency. Consider 3G, 4G, 5G Yagi antenna that covers from 617 MHz (5G Sub-6 Frequencies).

This Sure Call SC230-W Yagi is a directional antenna that is designed to be used in areas of weak cellular signal. It is aimed directly at a cellular tower to provide the maximum connectivity. This SureCall antenna covers 2G, 3G, 4G LTE and WLAN systems, for full data coverage and access. It is weather resistant. It is easy to install. Once up and running, the Yagi gives you faster data speed, and improved cellular signal.

Wide band directional Yagi antenna is arguably one of the best antennas in terms of performance out there. With an impedance of 50 Ohm, this SureCall antenna is a high gain type, best for outdoors. Point SureCall Yagi antenna towards the cellular tower that is not only unobstructed but also the nearest. Do point it to the cell tower that belongs to the Carrier whose signals need to be boosted. This 3G and 4G antenna is created with the ability to cover diverse systems for the LTE, AWS, PCS and Cellular such as WLAN, 4G, 3G and 2G. Alternate part numbers: Cellphone-Mate CM-230W/ CM230W. UPC: 896831002876.

From the manufacturer:

Summary:

Outside use.
Directional.
10 dB Gain.
2G, 3G, 4G, WLAN.
Full Band.
Easy to install.

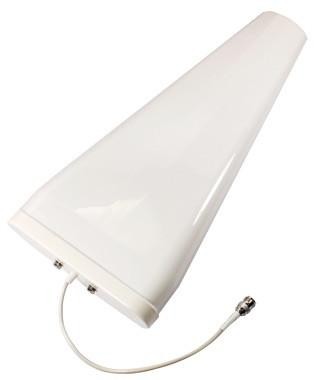

These directional Yagi antennas are two of the best performing antennas on the market today. They are high gain outdoor antennas that should be pointed toward the nearest cellular tower. The 4G antenna is designed to cover 2G/ 3G/ 4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies. The wide band or full band antenna is designed to work with similar wideband or fullband in-building amplifiers for AWS, Cellular, and PCS bands. Purchase includes antenna and pigtail cable as shown in image. No other parts included.>

SureCall SC-230W Specifications.

Frequency.	698-806/806-960/1710-2700MHz.
Input Impedance.	50 ohm.
Antenna Gain.	10dB.
Beamwidth.	E50 H85/E60 H85/E50 H60.
VSWR.	≤1.8.
Polarization Type.	Vertical.
Radiation.	Directional.
Maximum Power.	50W.
Connector type.	N-Female or customized.
Cable type.	SC400 or SC240 recommended.
Cable Fitting.	Type 400 Cable with N-Male Connector.
Height (inches).	7.25”.
Weight.	7 oz.
Mount.	Mount on the roof.
Operating Temperature.	-22°F to +176°F.
Color.	White.
Dimensions.	17.3” x 8” x 1.45”.

Sure-Call SC-230W Set Up & Installation Instructions.

Cellphone-Mate CM-230W Yagi antenna is a directional antenna. Directional antennas need to be pointed toward the nearest cellular tower for the best results. SureCall CM230W Yagi antenna includes mounting equipment such as U-Bolts to attach to a pole, 1.25 inch - 2 inch in diameter (pole not included).

1. Install U-bolt on pole.

2. Slide pipe clamp over U-Bolt, flat side away from pipe.

3. Slide antenna bracket onto U-Bolt in desired location.

4. Install flat washer, split lock washer and nut, tighten as appropriate.
