Elecbee WIFI to Serial Port Module External Antenna USR-C216 Low Power Patch Type
SKU: EB0047448
Favorites
Key Features
| Item | Index | Description |
| Wireless parameter | Wireless standard | 802.11 b/g/n |
| Transmit power | 802.11b: +19dBm (Max.@11Mbps, CCK) | |
| 802.11g: +18dBm (Max.@54Mbps, OFDM) | ||
| 802.11n: +16dBm (Max.@HT20, MCS7) | ||
| Receiving sensitivity | 802.11b: -85 dBm (@11Mbps, CCK) | |
| 802.11g: -70 dBm (@54Mbps, OFDM) | ||
| 802.11n: -68 dBm (@HT20, MCS7) | ||
| Antenna | Built-in: onboard ceramic antenna | |
| Hardware parameter | Data interface | UART |
| Operating Voltage | 3.0V~3.6V | |
| Working current | (The following are all under 3.3V) | |
| Normal mode: AP average: 74mA peak 285mA | ||
| STA average: 32mA peak 196mA | ||
| Operating temperature | -20°C~85°C | |
| storage temperature | -40°C~125°C | |
| Working humidity | 5~95% RH (no condensation) | |
| Storage humidity | 5~95% RH (no condensation) | |

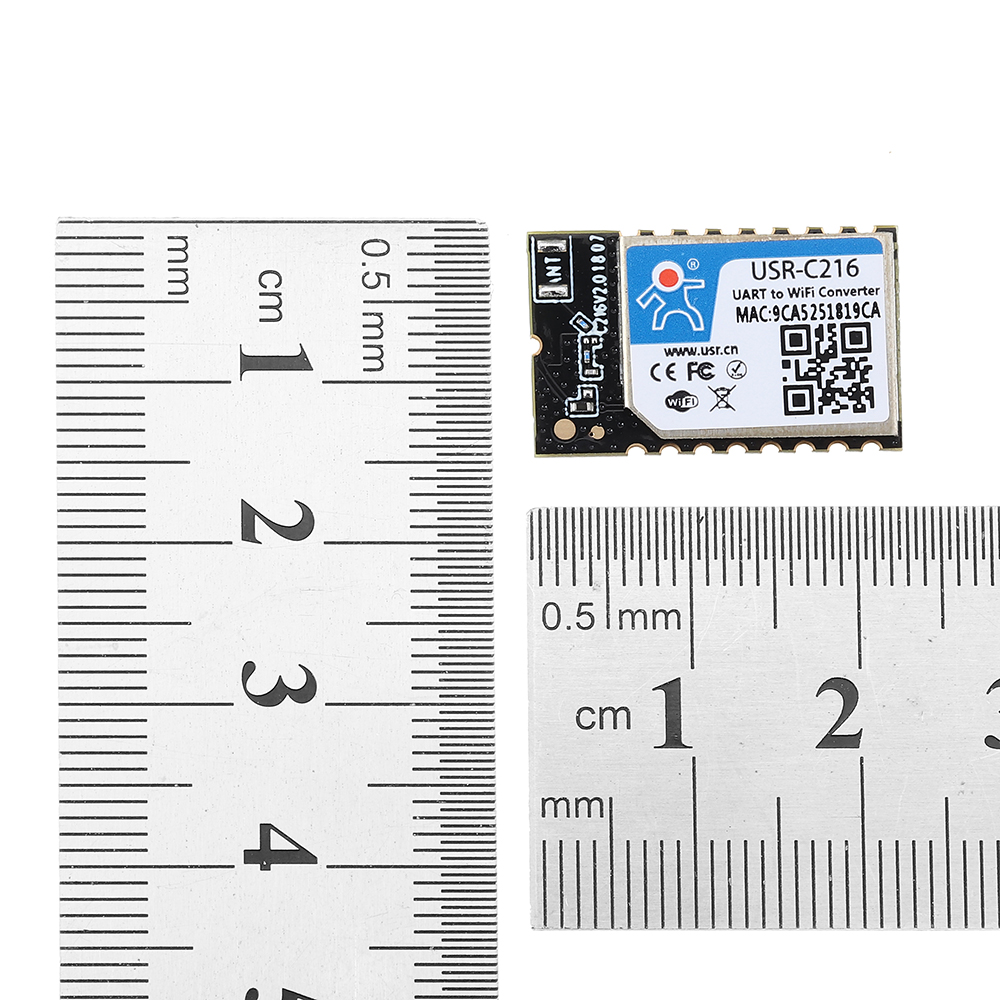

| Size | 22.0mm x 13.5mm x 2.7mm | |
| Package interface | SMT surface sticker | |
| Software parameter | Wireless network type | AP, STA, AP+STA |
| Security Mechanism | WEP/WPA-PSK/WPA2-PSK | |
| Encryption type | TKIP, AES | |
| Network protocol | IPV4, TCP/UDP | |
| Software function | DHCP/static IP | Support DHCP dynamic acquisition of IP and static IP functions |
| DNS domain name resolution | Support DNS domain name resolution | |
| Support webserver | Support Webserver web page setting parameters | |
| Socket passthrough | Support TCP Server, TCP Client, UDPServer, UDP Client | |
| HTTPD Client | Support Httpd protocol transmission | |
| Class RFC2217 | Support RFC2217 dynamic baud rate setting | |
| Registration package mechanism | Support ID, M A C, custom, transparent cloud | |
| Multiple configurations | AT+ instruction set, web page configuration |
Show More
Description
1 x Moudle
