Elecbee PL2303 USB-C to RS232 DB9 Female Serial Adapter Cable 1m 1Mbps Black Shielded

Elecbee PL2303 USB-C to DB9 Female RS232 Serial Adapter Cable

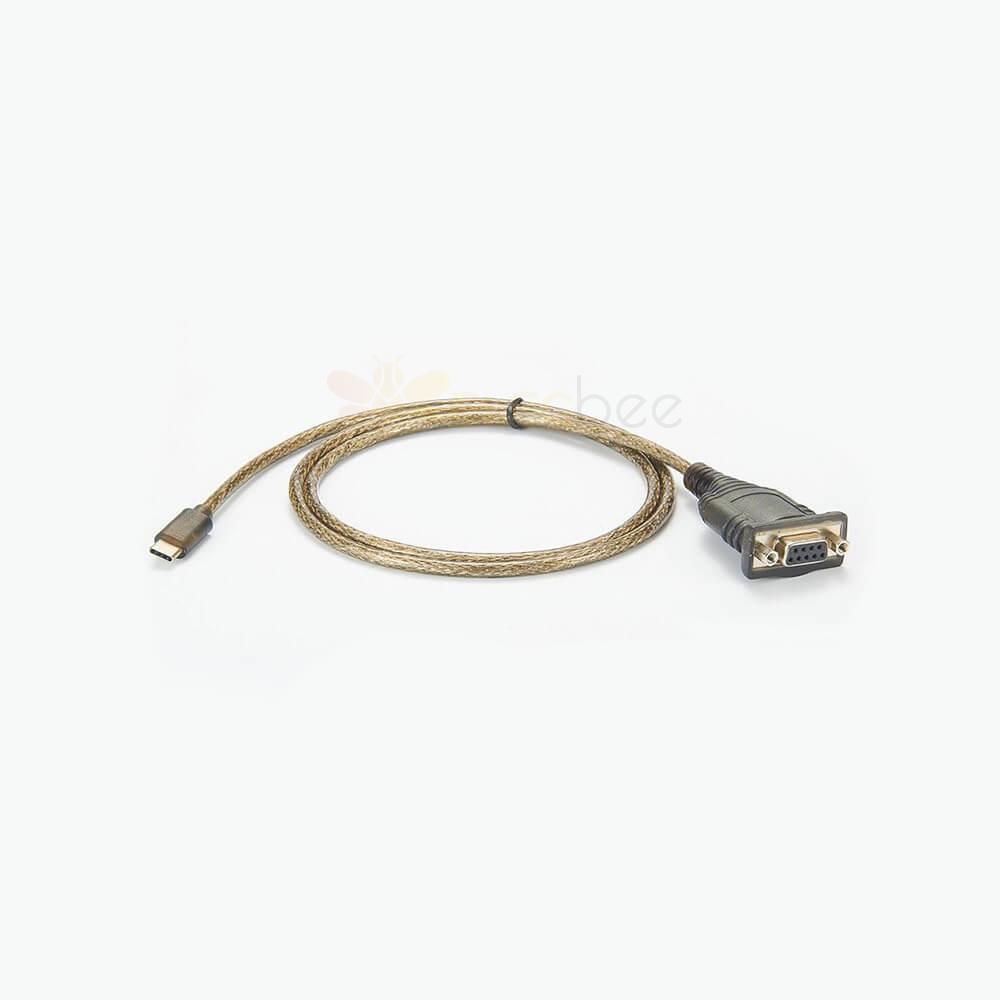

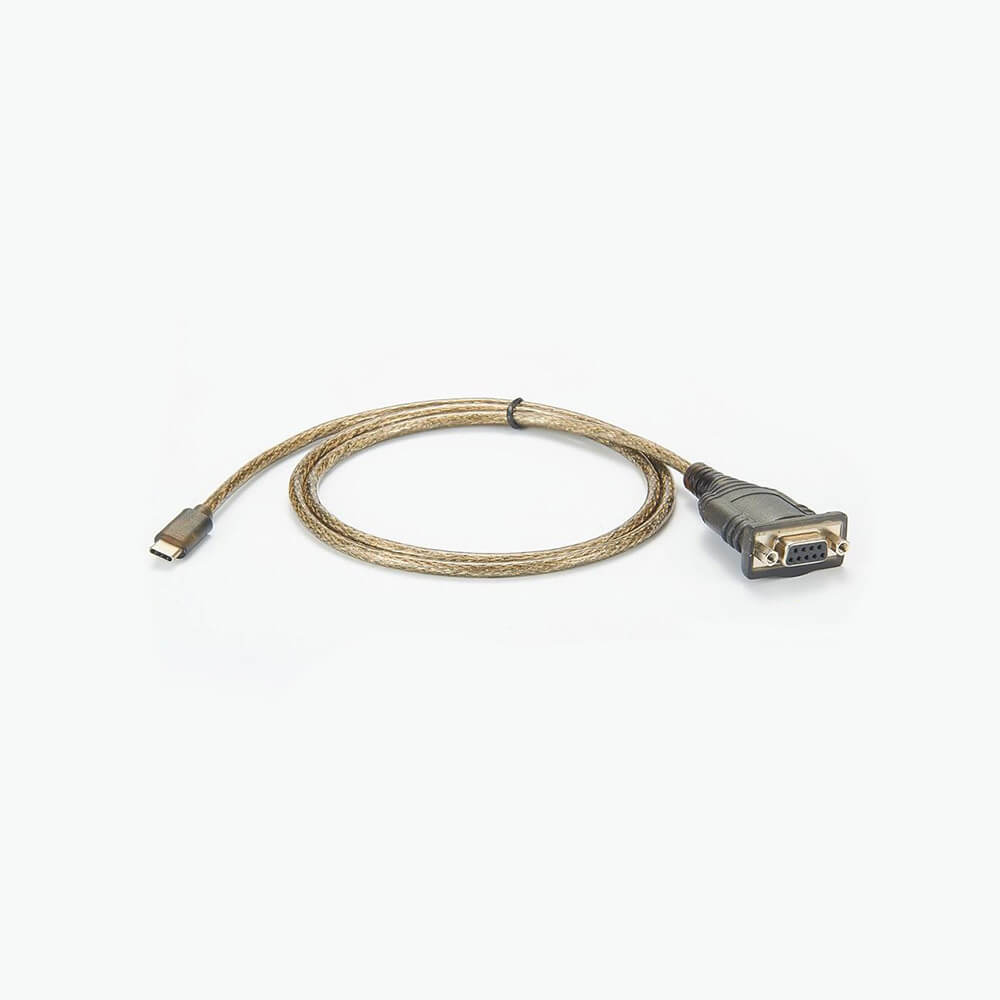

The Elecbee PL2303 USB-C to RS232 adapter cable converts a compatible laptop or desktop computer USB-C port into a DB9 female serial interface. After compatible driver installation, it creates a virtual COM port for communication with commercial, automation and industrial RS232 equipment.

The cable supports a supplier-specified communication rate up to 1Mbps. Tinned-copper conductors, foil and braided shielding, gold-plated contacts and a black PVC jacket support dependable integration in compatible serial communication systems.

Technical Specifications

Product Type: USB-C to RS232 serial adapter cable
Chipset Family: PL2303
Exact PL2303 Revision: Not specified
Computer Connector: USB-C male
Serial Connector: DB9 female, 9-pin
Serial Standard: RS232
Maximum Specified Rate: 1Mbps
Cable Length: Approximately 1m
Cable Diameter: Approximately 5mm
Conductor Material: Tinned copper
Shielding: Aluminum foil and metal braided shielding
Outer Jacket: PVC
Color: Black
Connector Contacts: Gold plated
Computer Interface: Virtual COM port

Unspecified Parameters: The exact PL2303 revision, DB9 pin assignment and connected handshake signals are not supplied. These details should not be assumed from the connector shape.

Product Dimensions

DB9 Connector Housing Width: Approximately 33mm
DB9 Connector Housing Length: Approximately 60mm
USB-C Connector Housing Width: Approximately 12mm
USB-C Connector Housing Length: Approximately 37mm
Cable Diameter: Approximately 5mm
Cable Length: Approximately 1m

Measurement Note: Dimensions are measured manually and may have minor variations.

Shielded Cable Construction

The cable combines tinned-copper conductors, an aluminum-foil layer, metal braided shielding and a grounding conductor. This layered construction helps reduce the influence of external electromagnetic interference in compatible installations.

The flexible black PVC jacket protects the internal conductors during normal bending and handling. Gold-plated contacts help resist surface wear and corrosion during repeated connections.

RS232 Communication Functions

Applicable PL2303 variants support hardware and software flow control, USB power management and configurable remote wake-up.

Actual availability depends on the exact PL2303 revision, internal cable wiring, driver configuration and connected equipment. Flow control also requires the corresponding DB9 signals to be connected and supported by both devices.

The cable does not automatically identify every required serial setting. Configure the baud rate, data bits, parity, stop bits and flow-control mode according to the connected equipment.

USB-C Cable Signals

Supplier-Listed Signal Groups:
VCC – Power
DATA+ – Positive USB data
DATA− – Negative USB data
GND – Ground
FG – Frame ground or shield

Signal Note: These are the functional signal groups supplied for this cable and do not represent the complete physical pinout of a USB-C connector.

Operating-System Compatibility

Supplier-Listed Windows Systems: Windows XP, Vista, 7, 8, 8.1, 10 and 11
Other Supplier-Listed Systems: Mac OS and Linux

Compatible Windows installations may obtain a driver automatically through Windows Update when the computer has internet access. Automatic driver installation is not guaranteed for every PL2303 revision or operating-system build.

Windows XP and Vista are legacy systems, and compatible drivers may require manual installation. Mac OS and Linux compatibility also depends on the exact PL2303 revision and operating-system version.

The computer’s USB-C port must support USB data communication. A charging-only USB-C port cannot provide the required data connection.

Application Examples

The adapter can connect compatible laptop and desktop computers to cash registers, handwriting tablets, access-control systems, barcode printers, scanners, CNC machines, external modems, fiscal-control equipment, PLCs, temperature controllers, LED displays, programming equipment, touchscreens, industrial instruments and industrial computers.

Compatibility requires an RS232 device with a matching DB9 male connector, compatible pin assignment and supported serial communication settings.

Connection Instructions

Step 1: Confirm that the computer’s USB-C port supports USB data.
Step 2: Confirm that the equipment uses an RS232 DB9 male interface.
Step 3: Verify whether straight-through or null-modem wiring is required.
Step 4: Install the correct PL2303 driver if necessary.
Step 5: Connect the USB-C and DB9 connectors.
Step 6: Select the assigned virtual COM port.
Step 7: Configure the serial communication parameters required by the equipment.
