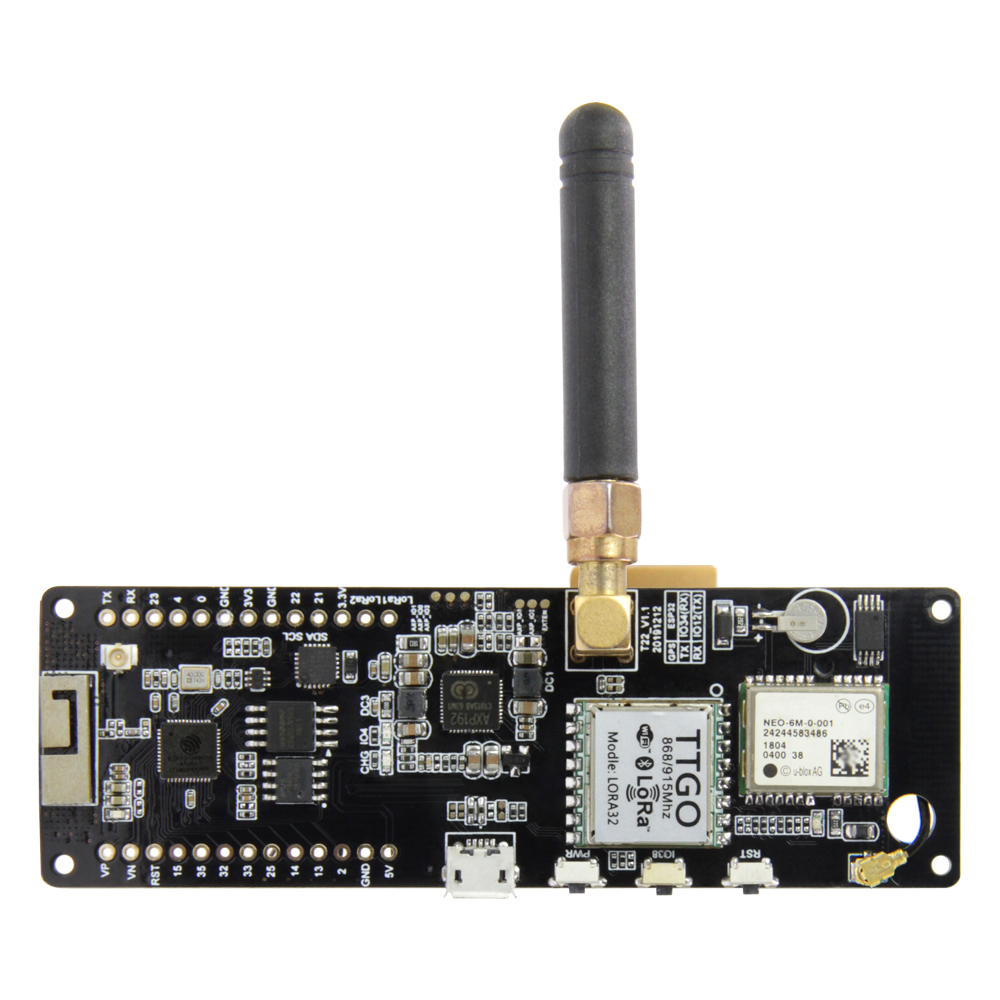

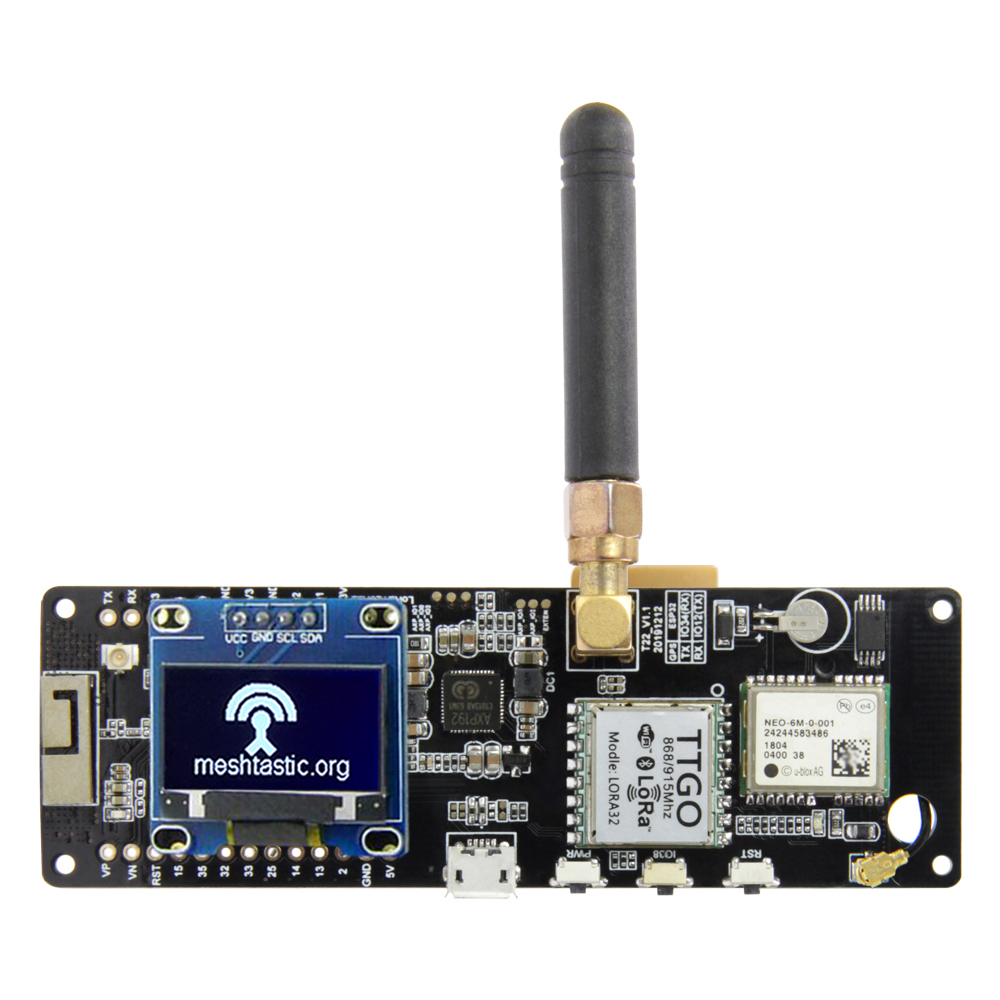

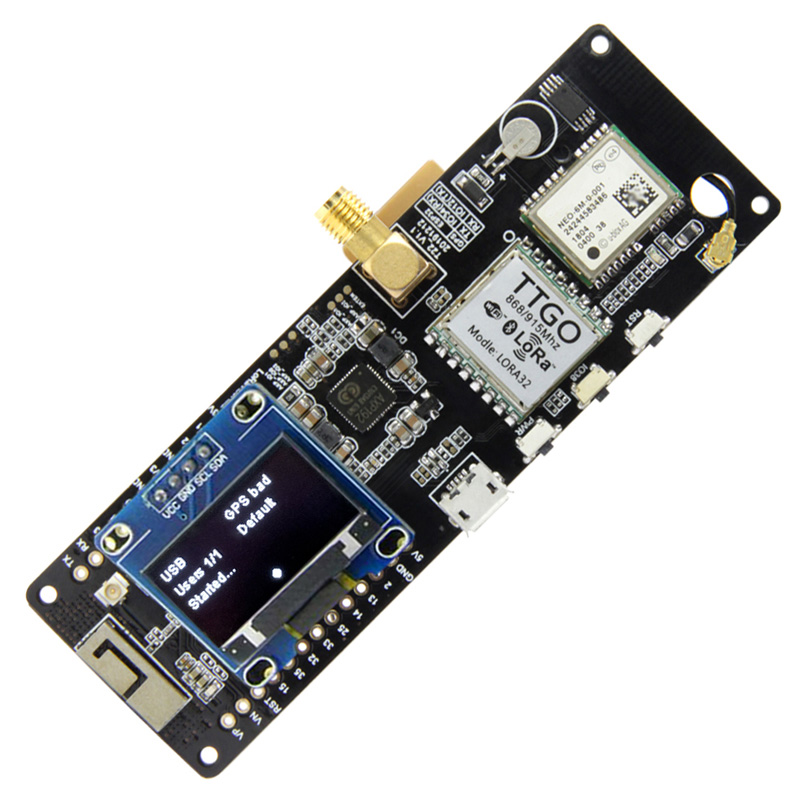

Elecbee T-Beam V1.1 ESP32 868Mhz WiFi Bluetooth ESP32 GPS NEO-6M SMA 18650 Coin Cell Battery Holder With OLED 1PCS
SKU: EB0042030
Favorites
Key Features
| Working voltage | 1.8~3.7V |
| Acceptable current | 10~14mA |
| Transmit current | 120mA@+20dBm |
| 90mA@+17dBm | |
| 29mA@+13dBm | |
| Operating frequency | 868MHz |
| Transmit power | +20dBm |
| Receive sensitivity | -139dBm@LoRa &62.5Khz&SF=12&146bps |
| -136dBm@LoRa &125Khz&SF=12&293bps | |
| -118dBm@LoRa &125Khz&SF=6&9380bps | |
| -123dBm@FSK&5Khz&1.2Kbps | |
| Frequency error | +/-15KHz |
| FIFO space | 64Byte |
| Data rate | 1.2K~300Kbps@FSK |
| 0.018K~37.5Kbps@LoRa | |
| Modulation Mode | FSK, GFSK, MSK, GMSK, LoRa TM, OOK |
| Interface form | SPI |
| Sleep current | 0.2uA@SLEEP |
| 1.5uA@IDLE | |
| Operating temperature | -40℃ ~ +85℃ |
Digital RSSI function
Automatic frequency correction
Automatic gain control
Low voltage detection
Fast wake-up and frequency hopping
Highly configurable data packet handler
GPS
GPS modules NEO-6M, 3V-5V power supply Universal
Destined module with ceramic antenna, signal super
Save the configuration parameter data EEPROM Down
With data backup battery
There are LED signal indicator
Default Baud Rate: 9600
Power
Power Supply Input USB 5V/1A
Charging current 500mA
Battery Input 3.7-4.2V
Charge IC AXP192

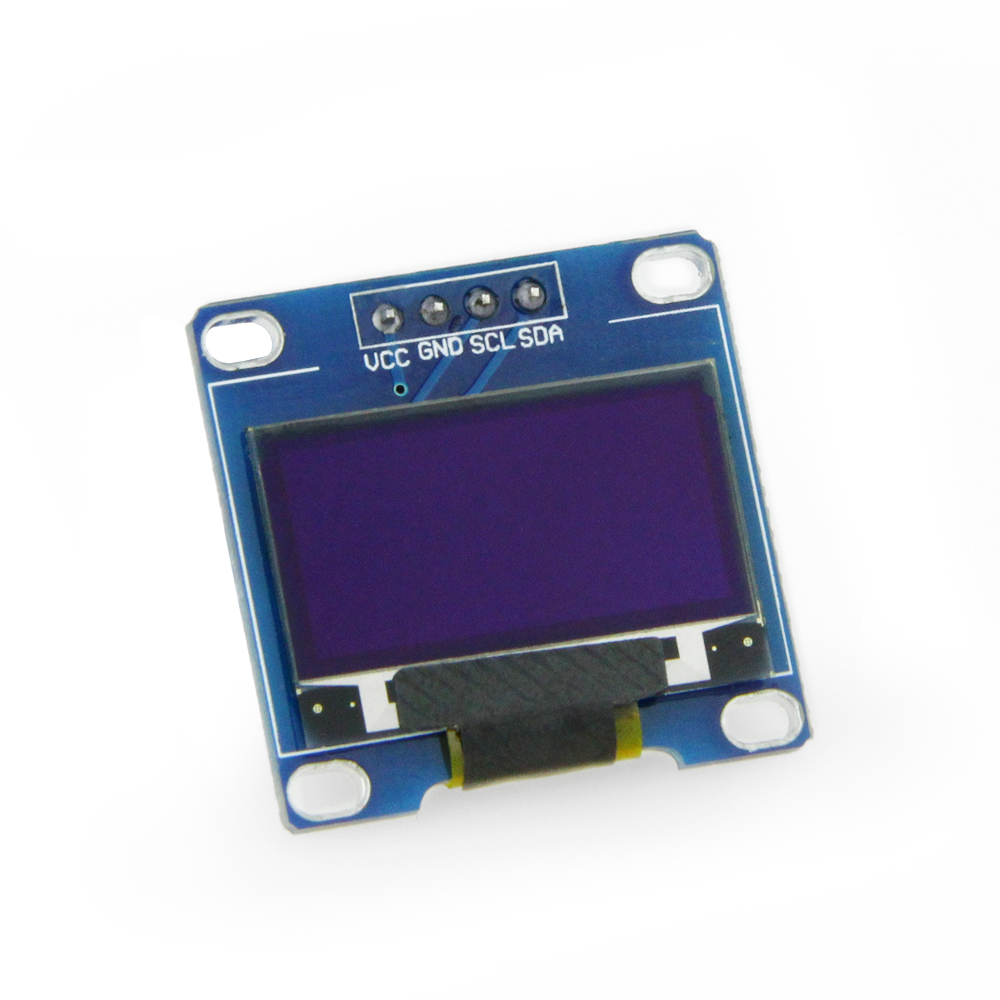

OLED Description:
1. Size: 0.96 inch
2. High resolution: 128 * 64
3. Color: White
4. Viewing angle: > 160 °
5. Driver IC: SSD1306
6. Working temperature: -30 celcius ~ 80 celcius
7. Module volume (generous): 27.0mm x 27.0mm x 4.1mm
8. Supports many control chip: Fully compatible with Arduino, 51 series, MSP430 series,STM32/2 chip, etc. (a lot of routines for reference)
9. Wide voltage support: without any modification, directly supports 3.3V ~ 5V DC
10. Ultra-low power consumption: Normal operation Is 0.04W
11. IO port occupies minimal display: The IIC communication, as long as the two IO ports
Show More

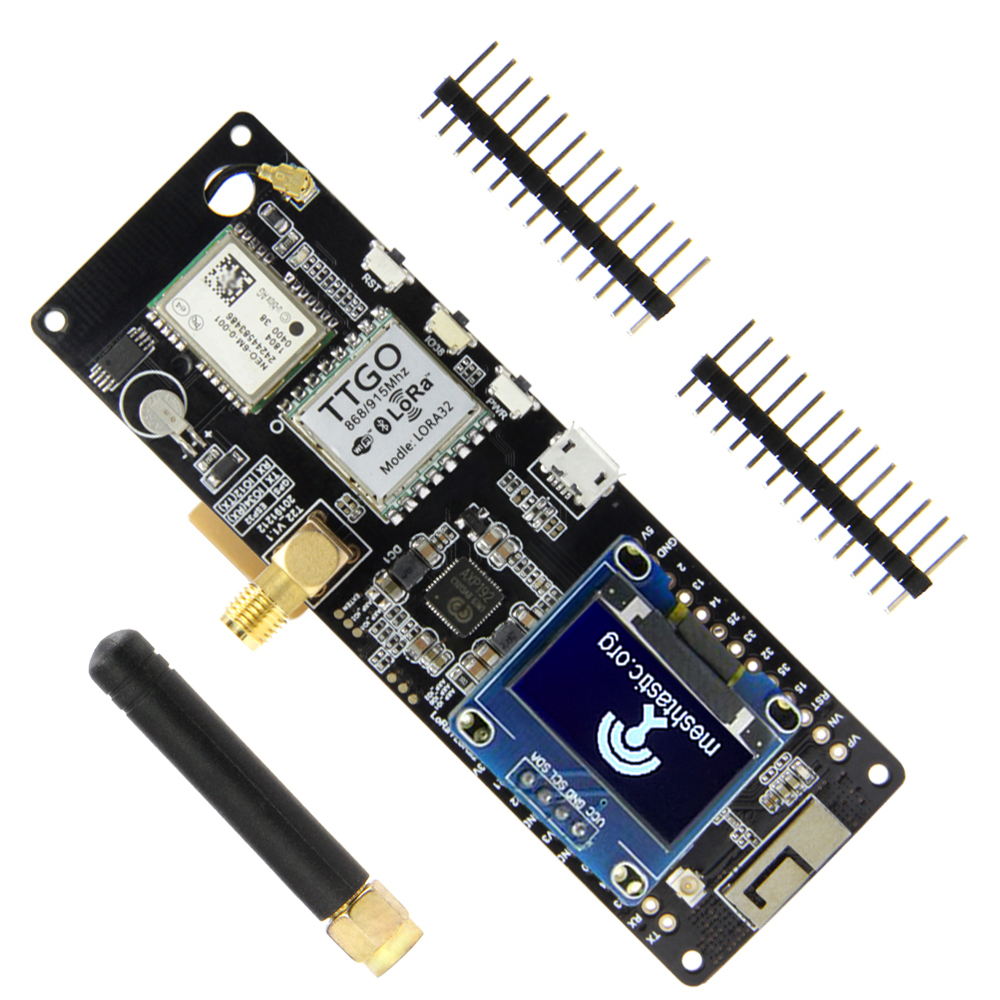

Description
1 X TTGO T-Beam
1 X 868MHz Antenna
1 X 0.96 inch 128X64 OLED
2 X Pin
