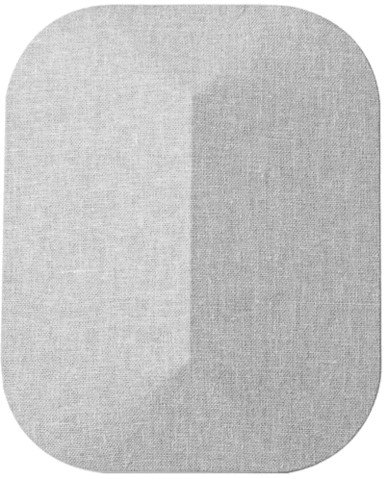

Elecbee Stylish Inside Panel Antenna (Fabric Cover, 50 Ohm)

SKU: E-201-2510

Favorites

Key Features

Works on all worldwide cellular bands for voice, 4G, LTE, 5G-E data: LTE/ CDMA/ GSM/ UMTS/ AWS.

High performance for cellular repeater-boosters.
High gain signal output.
Boost 698-960 and 1710-2700 MHz cellular frequencies.
Designed for building interior installation.
High efficiency and compact design.
Boosts voice and data.
Simple install kit with wall mount bracket and desk stand.
2-year warranty.

Please note that this kit is for amplifiers with interior antenna port of 50 Ohms impedance so please confirm this on your booster device or check its user guide/ manual to confirm. If you have a 75 Ohms cellular amplifier, simply check and choose from ourxa075 Ohm antenna expansion kitsxa0section.

Technical Specifications.

Model Number	314441.
Frequency Band (MHz)	698-806, 806-960, 1710-1880, 1900-2200, 2200-2700.
Peak Gain (dBi)	5.75, 6, 7.3, 7.33, 7.62.
Efficiency (%)	65.80, 63.34, 66.77, 55.19, 55.17.
Half-Power Azimuth Beamwidth (°)	79, 72, 56, 51, 55.
Half-Power Elevation Beamwidth (°)	87, 89, 86, 75, 48.
Front-to-Back Ratio (dB)	>10, >17, >15, >12.
VSWR	<1.5:1.
Impedance	50 Ohm.
Maximum Input Power	50 watts.
Antenna Type	Wide-Band Directional.
Connectors	N-Female.
Antenna Dimensions	8.875 x 7.125 x 2.625 inches.
Antenna Shipping Dimensions	11.5 x 7.83 x 3.5 inches.
Weight	1.6 lbs.
Radiator Material	PCB & Aluminum.
Radome Material	Plastic-ChiMei PC385.
UPC	697691019161

xa0

Antenna Mounting Options:

Description

Fabric Covered Inside Panel Antenna (50 Ohm) | weBoost 314441 by Wilson Electronics / WilsonPro.

Stylish Inside Panel Antenna with fabric cover is a proprietary indoor antenna made exclusively for WilsonPro 1100, 1300/R, 4300/R commercial grade cellular amplifier systems that have 50 Ohm impedance interior antenna port. It can be used with any brand cellular amplifier that has 50 Ohm interior antenna port impedance. It is noted for its stylish fabric cover, high performance, and intuitive wall-mount bracket. It is also the first panel antenna with built-in kickstand for placement on tables, shelves, etc.

With the included 3M Command Strips, this in-building Directional Antenna securely mounts to interior walls in a vertical or horizontal configuration. This antenna's neutral design aesthetic easily complements contemporary décor and features a built-in kickstand for shelf placement.
