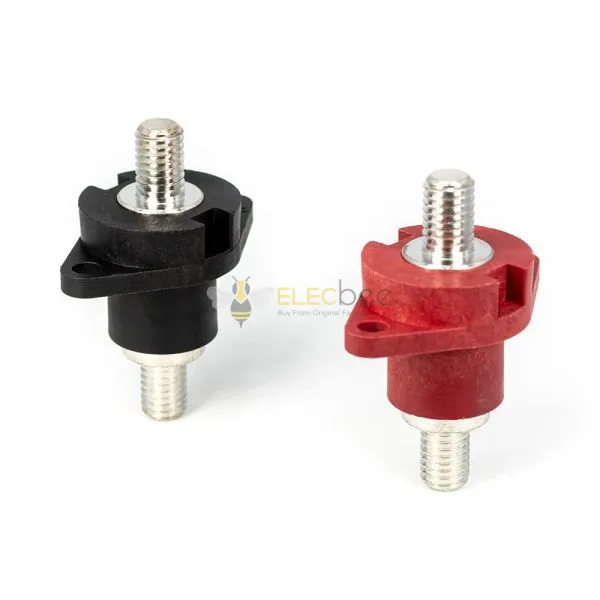

Elecbee Single Stud Type Junction Blocks, 200A, Outer Screw(M8), Outer Screw(M8),Flange Mounting, Red and Black 2pcs Set
SKU: EB-IF-FM8-4226-52-200A
Favorites
Key Features
- Includes one red and one black feed-through power terminal for clear positive and negative polarity identification.
- Each terminal features M8 threaded studs on both sides for secure high-current connections through panels or enclosures.
- Rated current: 200A; rated voltage: 1000V; withstand voltage: 3000V.
- PA66+GF insulating housing with a copper-alloy conductor and corrosion-resistant plated finish.
- Reinforced metal inserts and a two-hole flange design improve mounting stability and help reduce housing damage during installation.
Show More
In-Stock
Qty.
1
Unit Price
$ 11.90$ 14.00
Ext. Price
$ 11.90$ 14.00
$ 11.90$ 14.00
Specifications
Attribute
Value
Search
Mounting Type
Panel Mount
Mounting Feature
Bulkhead
Termination
Screw Terminal
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+125℃
Rated Current
200A
Rated Voltage
1000V
Color
Black, Red
Contact Material
Copper Alloy
Contact Finish
Tin Plated
Insulating Materials
PA66 + GF
Body Style
Studded
Termination Thread
M8
Description

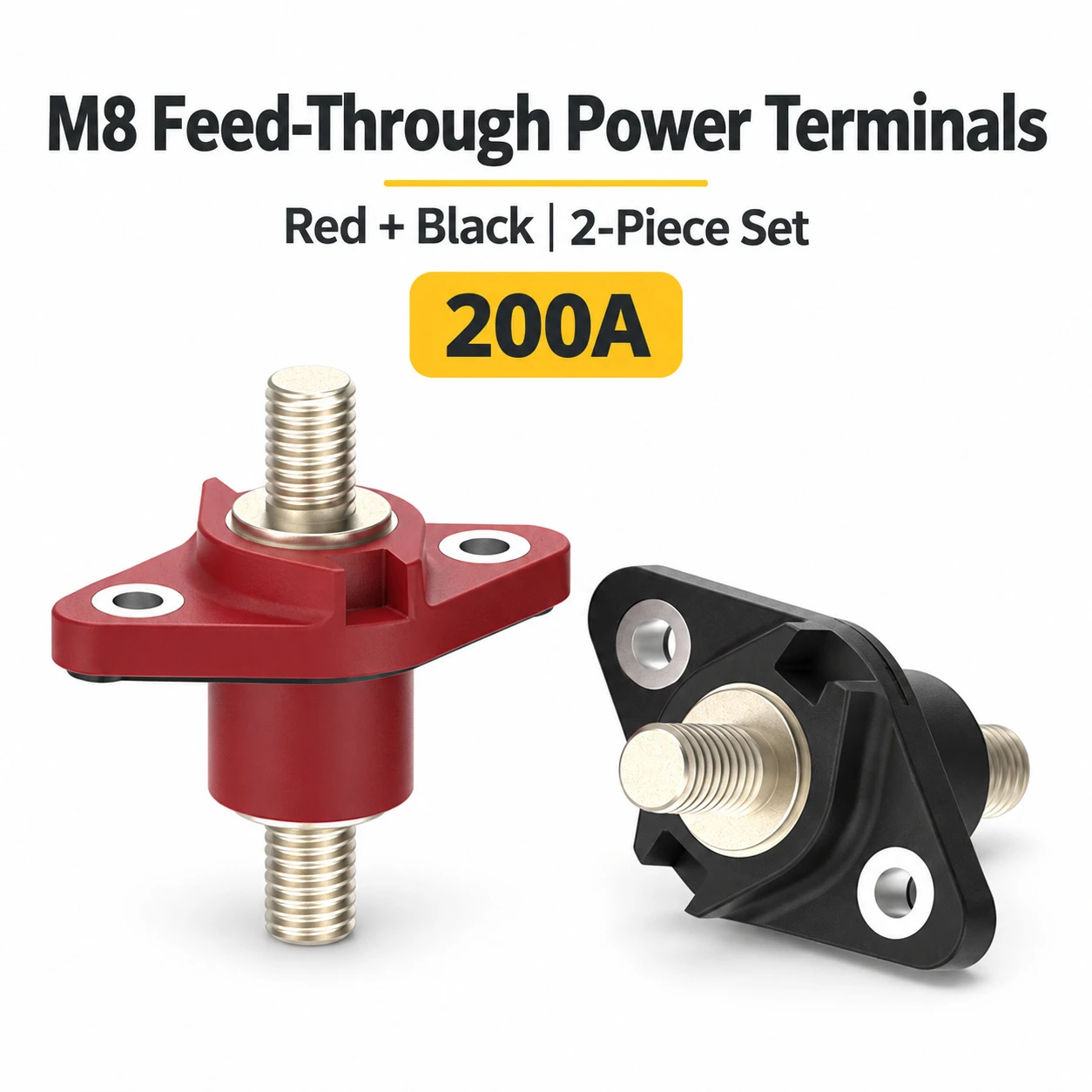

RED + BLACK · 2-PIECE SET

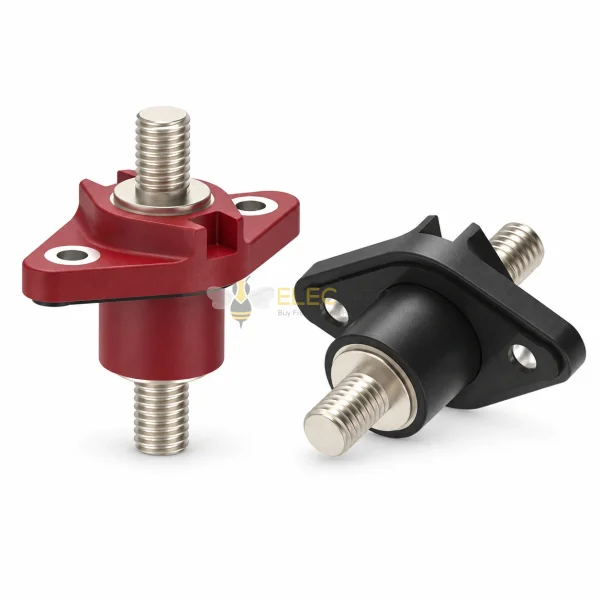

M8 200A Feed-Through Power Terminal Set
Route high-current power securely through panels and enclosures with matched red and black terminals for clear polarity identification.
- M8 threaded studs on both sides
- Two-hole flange panel mounting
- PA66+GF insulating housing
- Copper-alloy conductor with a plated finish
Key Specifications
| Set Contents | 1 × Red Terminal, 1 × Black Terminal |
| Thread Size | M8 on Both Sides |
| Rated Current | 200A |
| Rated Voltage | 1000V |
| Withstand Voltage | 3000V |
| Housing Material | PA66+GF |
| Conductor Material | Copper Alloy |

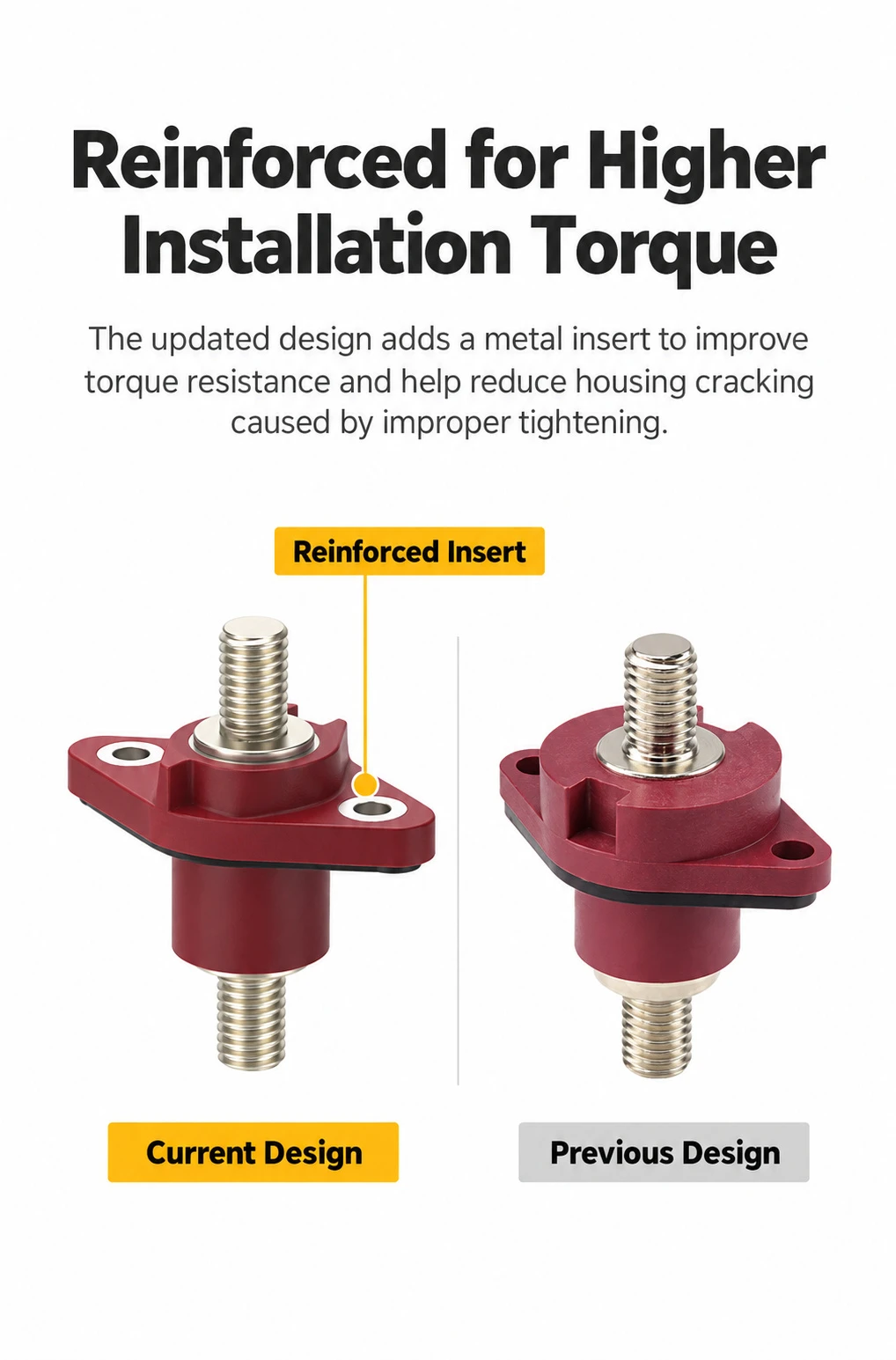

Reinforced for Higher Installation Torque
The updated mounting structure uses metal inserts to improve torque resistance and help reduce housing damage caused by improper tightening.

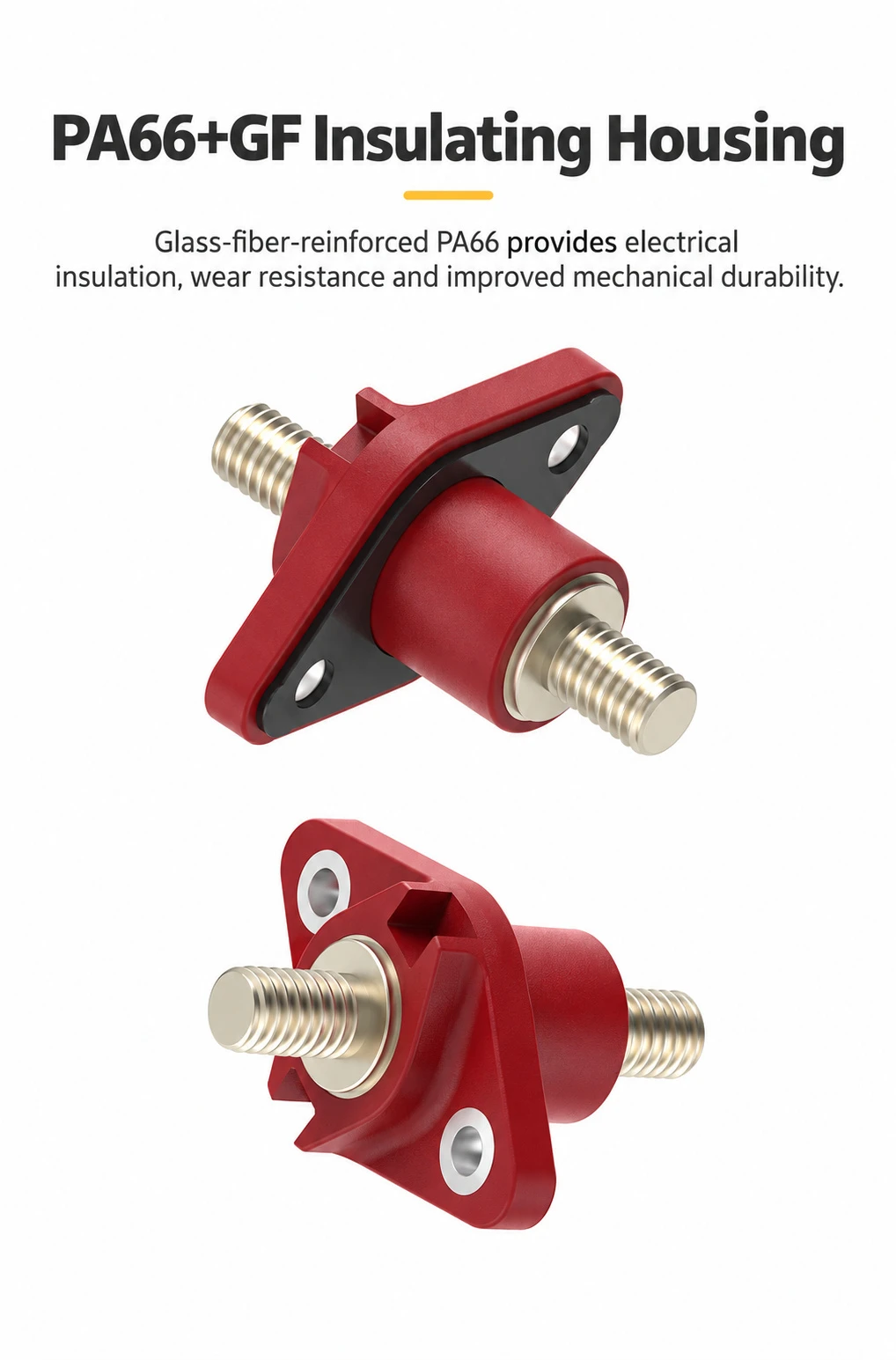

PA66+GF Insulating Housing
The glass-fiber-reinforced PA66 housing provides electrical insulation, wear resistance and improved mechanical durability around the panel feed-through point.

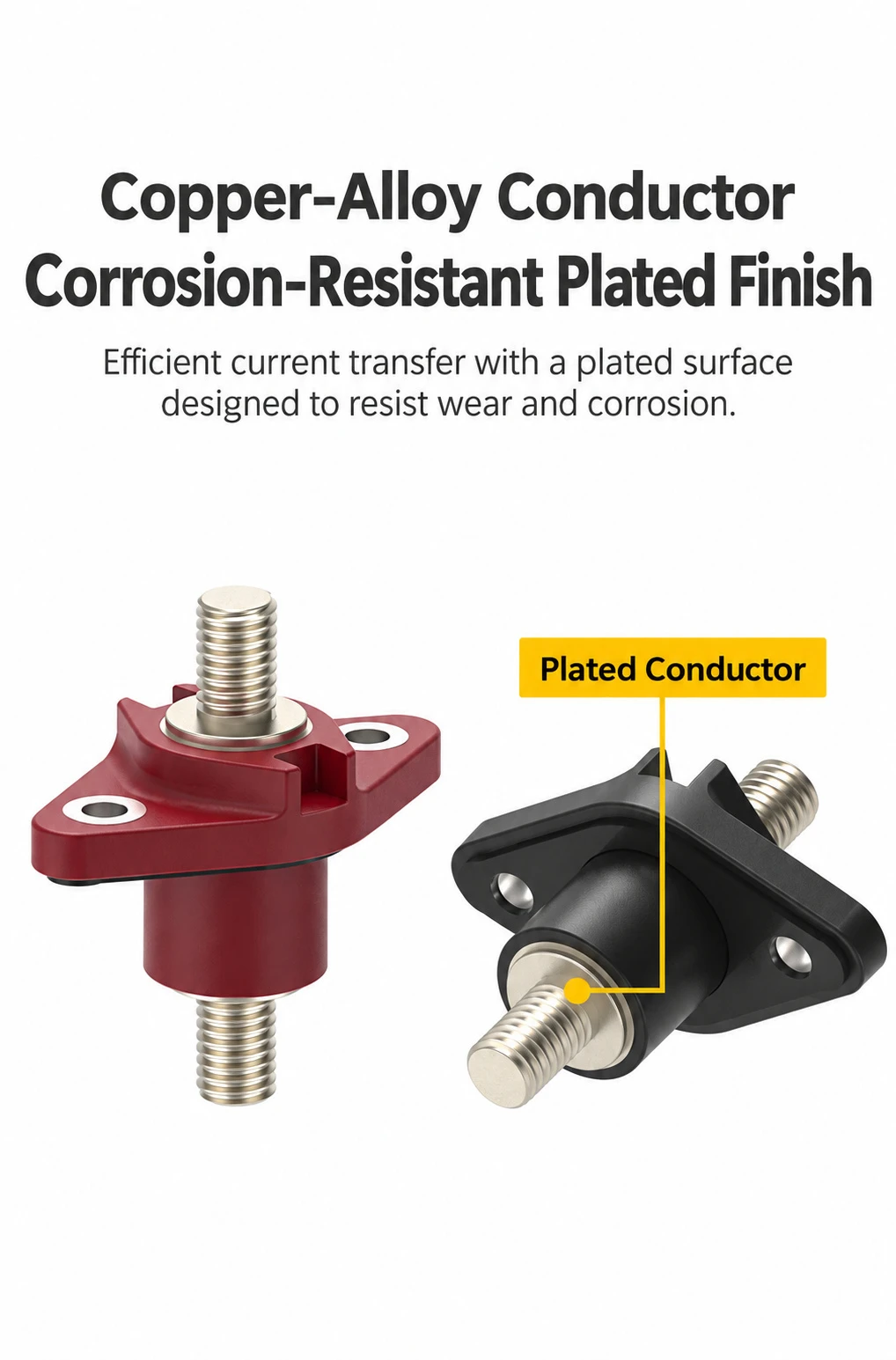

Copper-Alloy Conductor with Plated Finish
The copper-alloy conductor supports efficient current transfer, while its plated surface is designed to resist wear and corrosion.

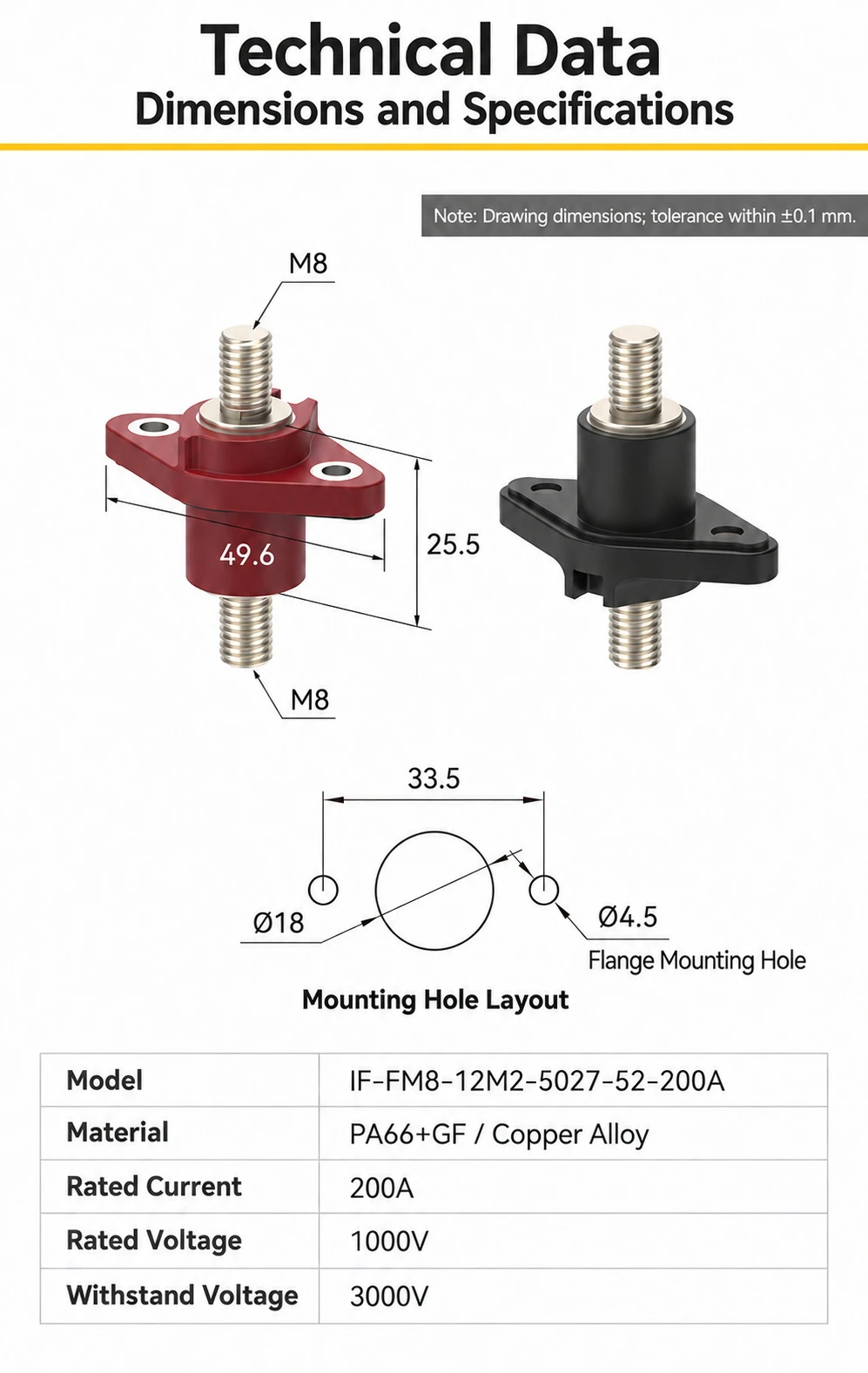

Dimensions and Mounting Details
Check the panel cutout and mounting dimensions before installation. Drawing tolerance: within ±0.1mm.
| Model | IF-FM8-12M2-5027-52-200A |
| Overall Flange Width | 49.6mm |
| Overall Height | 25.5mm |
| Mounting Hole Spacing | 33.5mm |
| Center Panel Cutout | Ø18mm |
| Flange Mounting Holes | Ø4.5mm |
Typical Applications
- Battery systems
- Power distribution panels
- Energy-storage equipment
- Electrical cabinets
Matched red and black terminals provide a compact, clearly identified connection for positive and negative power paths.
