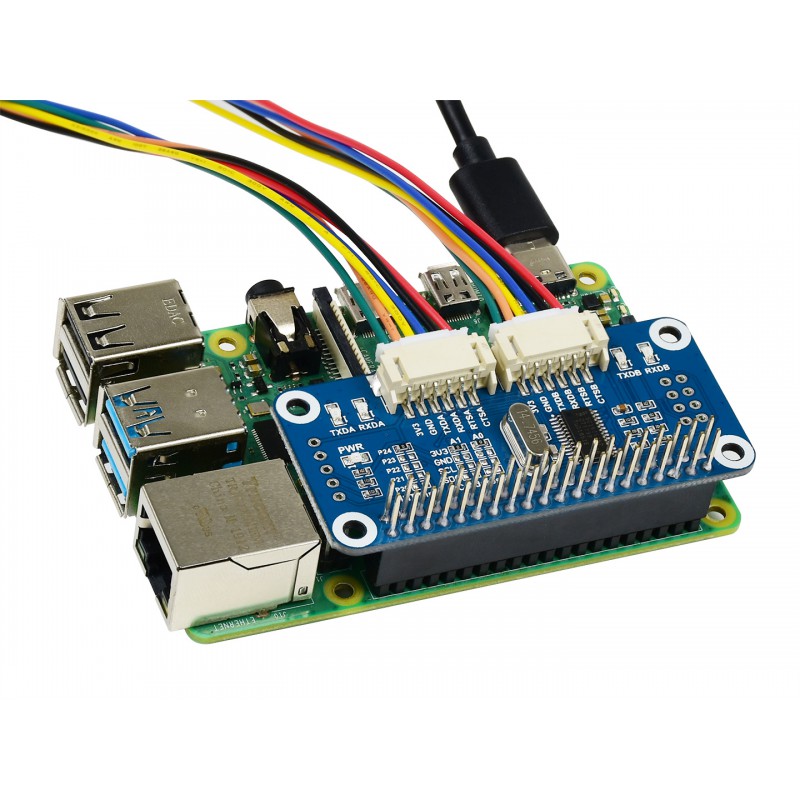

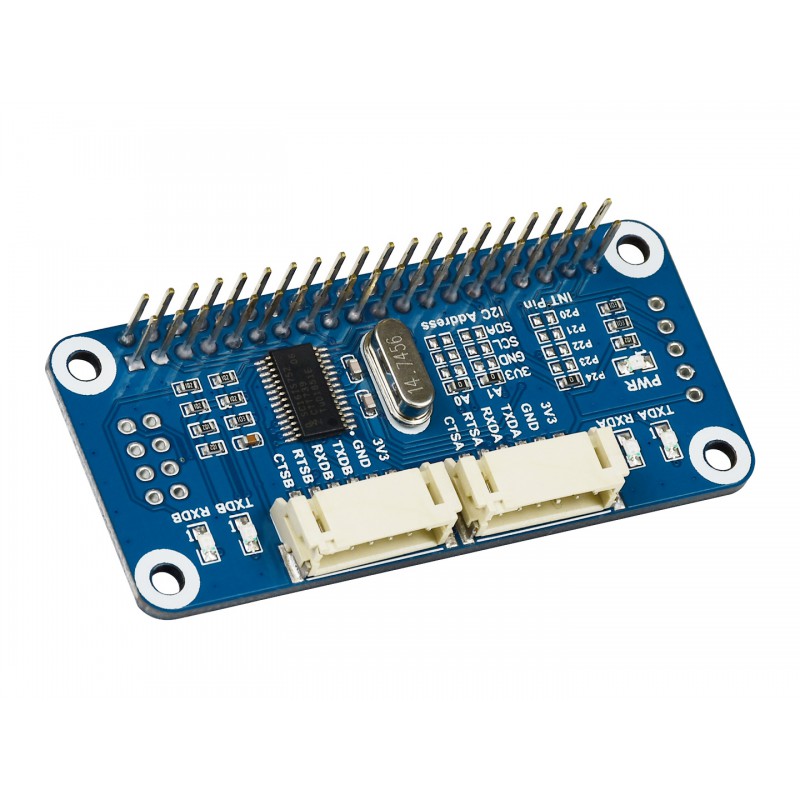

Elecbee Serial Expansion HAT for Raspberry Pi I2C Interface External Expansion 2-ch UART 8 GPIOs
SKU: EB0049506
Favorites
Key Features
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Onboard SC16IS752, expands 2-ch UART and 8 programmable GPIO through I2C, no extra pin required
It is stackable up to 16 this modules by setting the address jumper, that means up to 32-ch UART
Onboard multi LEDs for indicating the UART working status
Reserved I2C control pins, allows to work with other control boards
Comes with development resources and manual (examples in C and python)
Documents:
User Manual
Schematic
Datasheets
Demo Codes
Specifications:
Operating voltage: 3.3V
Expansion chip: SC16IS752
Control interface: I2C

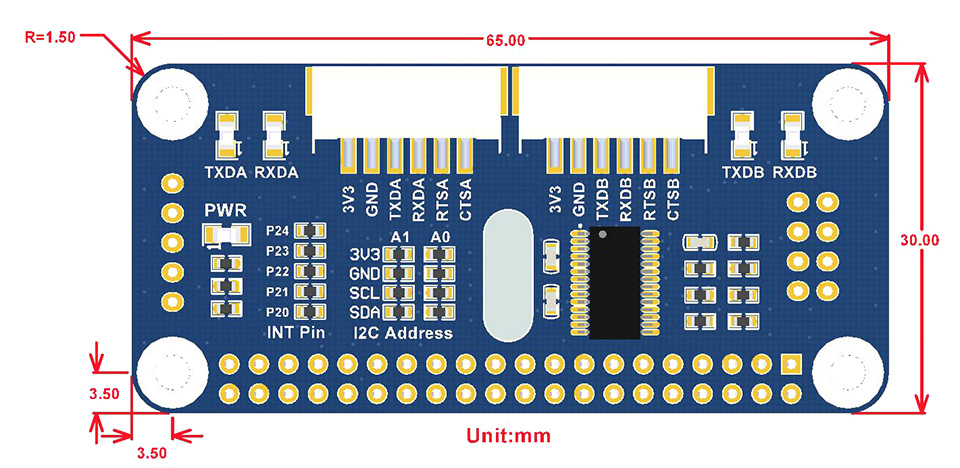

Dimension: 65mm x 30mm
Mounting hole size: 3.0mm
Show More
Datasheet
Description
Overview:
There is only 1-ch UART port on the original Raspberry Pi, once it is used for terminal debugging, no more other serial device is allowed. What a poor situation. Now you have 2-ch extra UART, plus 8 programmable GPIOs, just bring this Serial Expansion HAT.
Serial Expansion HAT x1
RPi screws pack (2pcs) x1
PH2.0 6PIN wire x2
