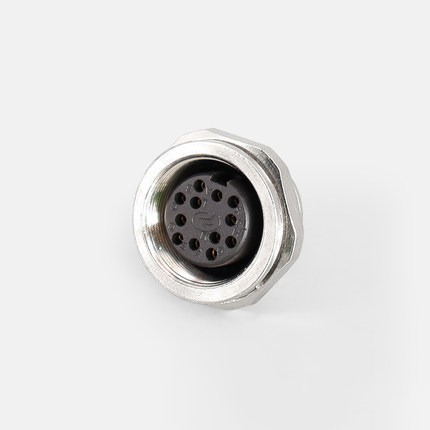

Elecbee Sensor connector M16 waterproof IP65 J09 female socket back mount 12Pin connectors

SKU: EB-400-3107-H
Favorites
Key Features

Features:

  • Connector Series: M16 / J09
  • Standard: IEC 61076-2-101
  • Coding: A
  • Pins: 2 3 4 5 6 7 8 12 14 19 24 Pin
  • Gender: Female
  • Connector Locking System: Fix the screw
  • Ambient Temperature: -25°C~+85°C
  • Connector Body: PA66+GF
  • Contacts: Phosphorus copper with gold plated
  • Screw/Nut: Brass with nickel plated
  • Waterproof 0-ring: FKM
  • Glue: Black epoxy resin

Noted: J09 series connectors. It can be compatible with the Amphenol C091D series, Binder 423 series and 680 series. It is applied to industries such as instrumentation, sensors, automation control and communication.

Show More
Attribute
Value
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Rear Side Nut
Termination
Solder Cup
Contact Type
Female Pin
Shell Finish
Nickel Plated
Number of Positions
12 Pin
Operating Temperature
-20℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67(mated)
Rated Current
3A
Rated Voltage
60V
Connector Series
M16
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
Black
Key
A Code
Wire Gauge
24AWG
Description

Shopping Guide
Shipping
Delivery Period
For in-stock parts, orders are estimated to ship out in 3 days.
Elecbee ships orders once a day at about 5pm except Sunday.
Once shipped, estimated delivery time depends on the below carriers you chose.
DHL Express: 3-7 business days
DHLeCommerce: 12-22 business days
FedEx International Priority: 3-7 business days
EMS: 10-15 business days
Registered Air Mail: 15-30 business days
Shipping RatesShipping rates for your order can be found in the shopping cart.
Shipping OptionsShipping rates for your order can be found in the shopping cart.
Shipping TrackingWe will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/WarrantyReturningReturns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
WarrantyAll Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
OrderingHow to BuyElecbee accepts online orders.
Add to cart > Check out > Submit order > Complete payment > Delivery
PaymentPayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Recommended For You

Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
20%
4 stars
20%
5 stars
60%
D****E
Perfect fit for our industrial sensors. The M16 J09 female socket is solidly built and the IP65 rating keeps moisture out, even in damp environments.
a****s
Good quality connector with reliable back-mount design. Was happy to see it meets IEC 61076-2-101 standard—important for compliance in our setup.
A****R
Used the 12-pin version for a robotics project. The A-coding prevents misconnection, which has been a lifesaver on the assembly line.
S****a
Works as described, but took a bit of force to mate properly. Solid IP65 seal though, no issues with dust or water after installation.
R****u
Exactly what we needed—female M16 with 12 pins and A coding. Mounting was straightforward and the waterproof rating holds up well outdoors.
