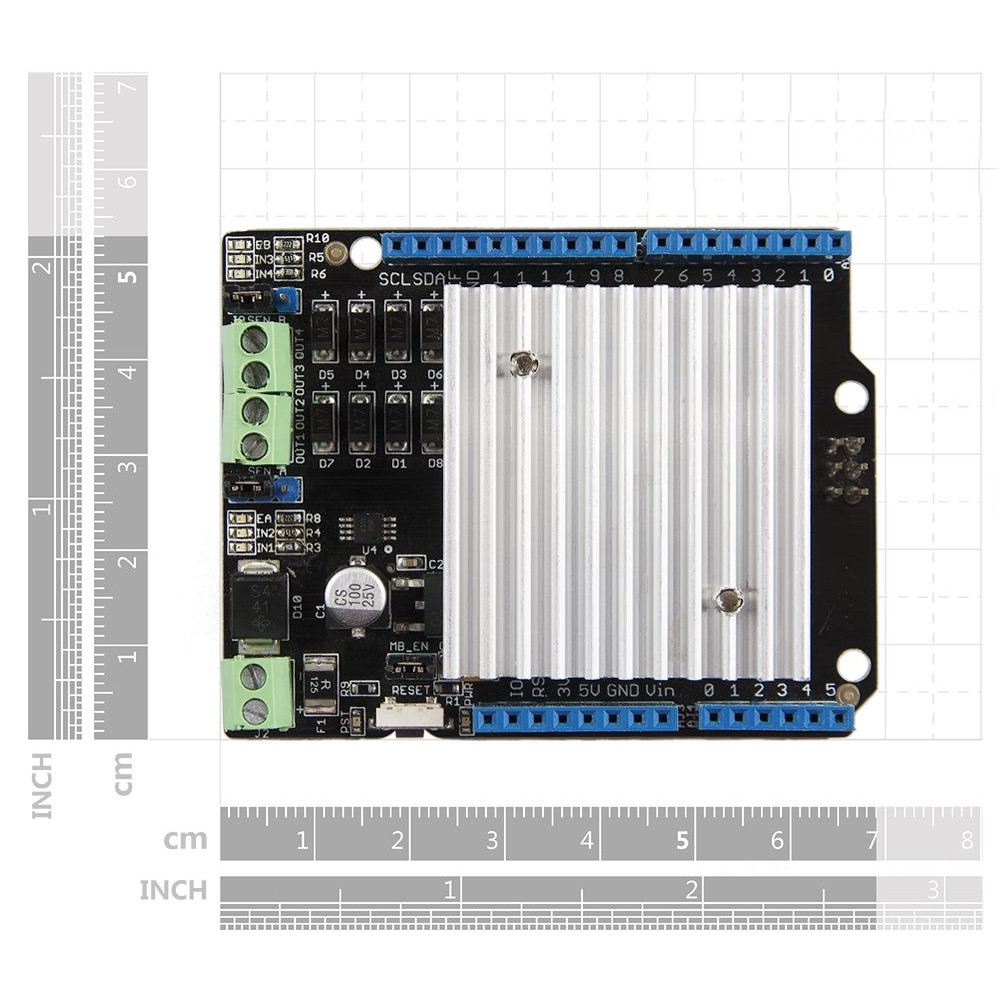

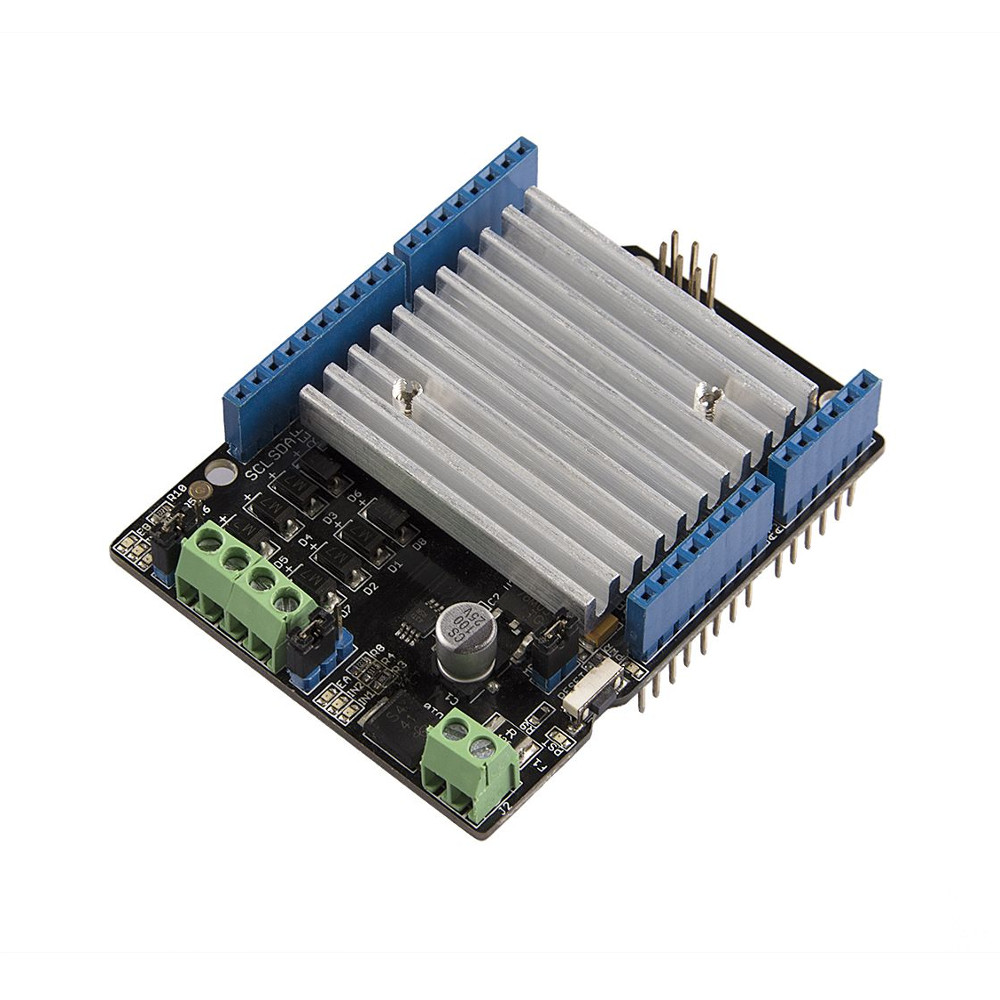

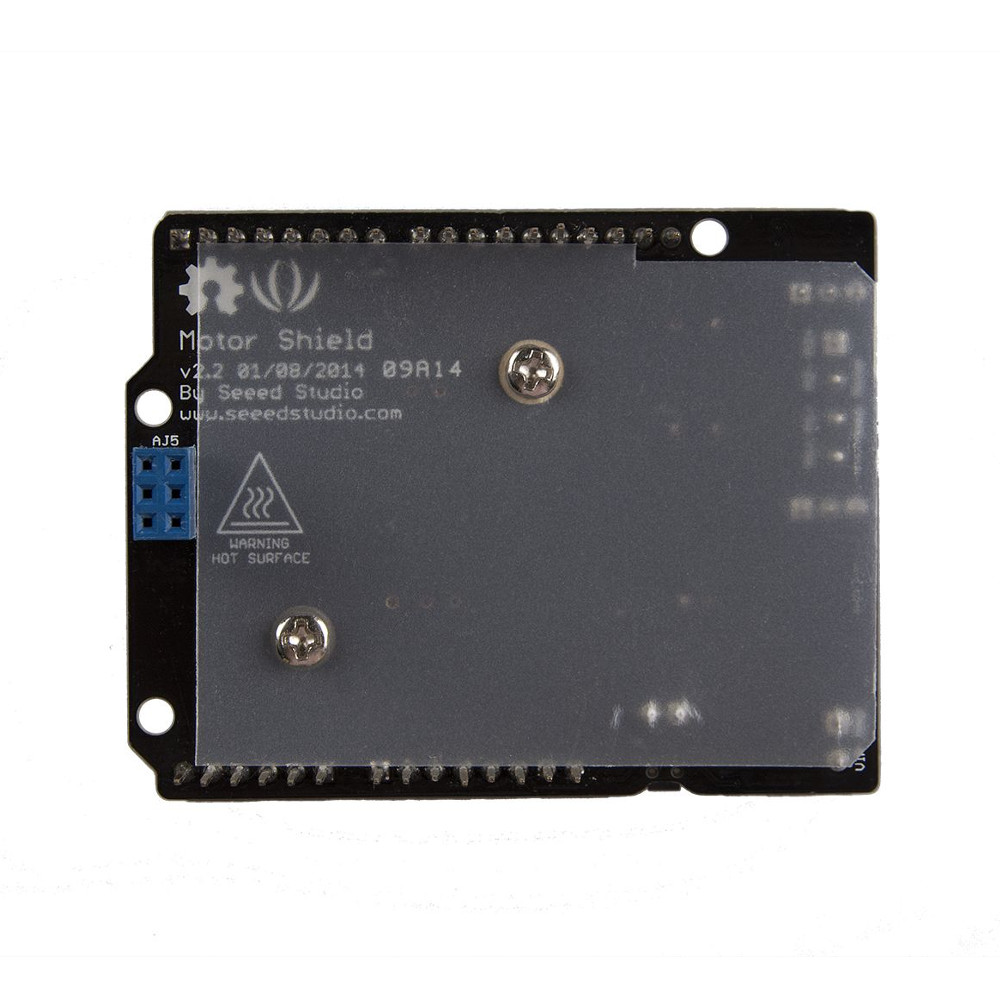

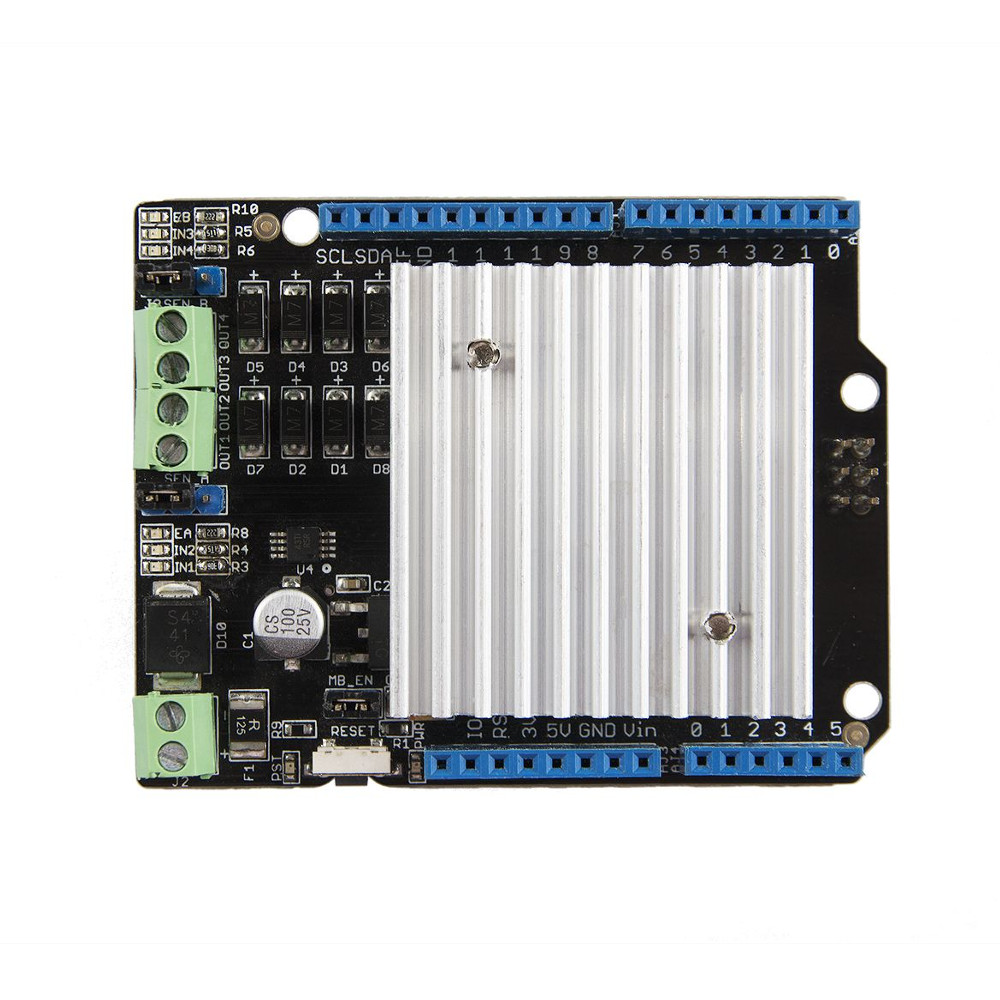

Elecbee Seeeduino Motor Shield V2.0 L298 Motor Driver for Mega UNO
SKU: 1716128
Favorites
Key Features
Features:
ARDUIN0/Seeeduino compatible
Standardized shape design
LED enable indicator
LED rotation direction indicator
Overcurrent turn-off
Built around the dual full-bridge drive chip L298
Overcurrent protection
Dimensions: 100mm x65mm x30mm
Show More
Datasheet
Description
Description:
The Motor Shield is a driver module for motors that allows you to use ARDUIN0 to control the working speed and direction of the motor. Based on the Dual Full-Bridge Drive Chip L298, it is able to drive two DC motors or a step motor. The Motor Shield can either be powered directly by ARDUIN0 or by an external 5V~15V power supply via the DC jack. This module can be used for the development of microrobots and intelligent vehicles, etc.
The defined pins are D8~D13 on the ARDUIN0/Seeeduino board. D8, D11, D12, D13 are 4 output pins for controlling the speed or the direction of the motor. D9, D10 are enabled pins for two channels of the Motor Shield. So mostly you would use these 6 pins for your motor control, and you are able to drive at most two motors from one shield.
The Motor Shield is compatible with many boards, for more details, please click the picture below.
Package includes:
1 x Motor Shield
