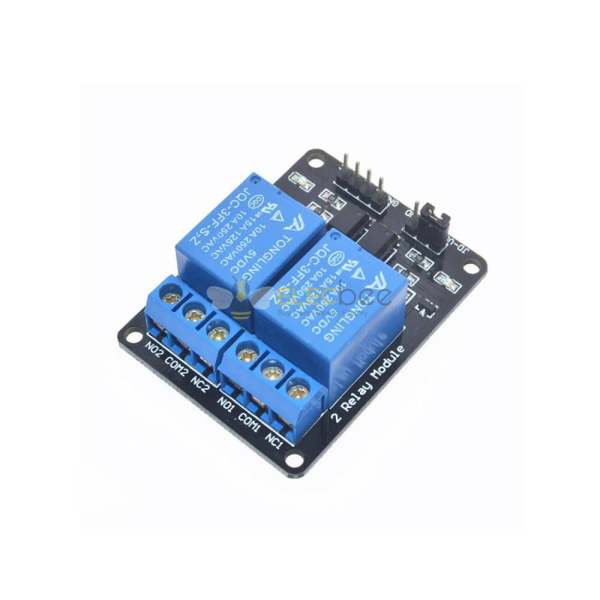

Elecbee 2-Channel 5V Relay Module with Optocoupler Isolation for Arduino
SKU: EB-900-0002-5V
Favorites
Key Features
Enhanced System Protection: Features optocoupler isolation to prevent electrical interference between your microcontroller and high-voltage loads.
SPDT Configuration: Offers versatile switching options with one Common (COM), one Normally Open (NO), and one Normally Closed (NC) terminal.
Clear Status Indicators: Onboard LED lights provide real-time visual feedback for relay trigger status (Active Low).
Configurable Power Input: Flexible power design allows separate VCC/JDVCC rails or shared power via the included jumper cap.
Sturdy Physical Build: Compact 50.6mm x 38.8mm PCB with four 3.1mm mounting holes for reliable chassis or project box integration.
Show More
In-Stock
Qty.
1
Unit Price
$ 2.48$ 2.92
Ext. Price
$ 2.48$ 2.92
$ 2.48$ 2.92
Description
This 2-channel 5V relay module provides a reliable solution for controlling high-power electrical devices using a low-voltage microcontroller, such as an Arduino or Raspberry Pi. By incorporating optocoupler isolation, this board effectively separates the control signal from the load circuit, ensuring the safety of your sensitive microcontrollers from electrical noise and potential surges.
Technical specifications include:
- Switching Capacity: Max 10A at 250V AC or 10A at 30V DC
- Trigger Logic: Low-level trigger (Active Low)
- Dimensions: 50.6mm x 38.8mm x 19.3mm
- Connectivity: Standard VCC/GND/IN1/IN2 interface
The module is designed for ease of use in industrial and hobbyist applications. It features Single Pole Double Throw (SPDT) contacts, allowing for both normally open and normally closed operations. The PCB includes separate power rails for the logic (VCC) and the relay (JDVCC), which can be bridged with the included jumper cap if a single 5V power source is preferred.
