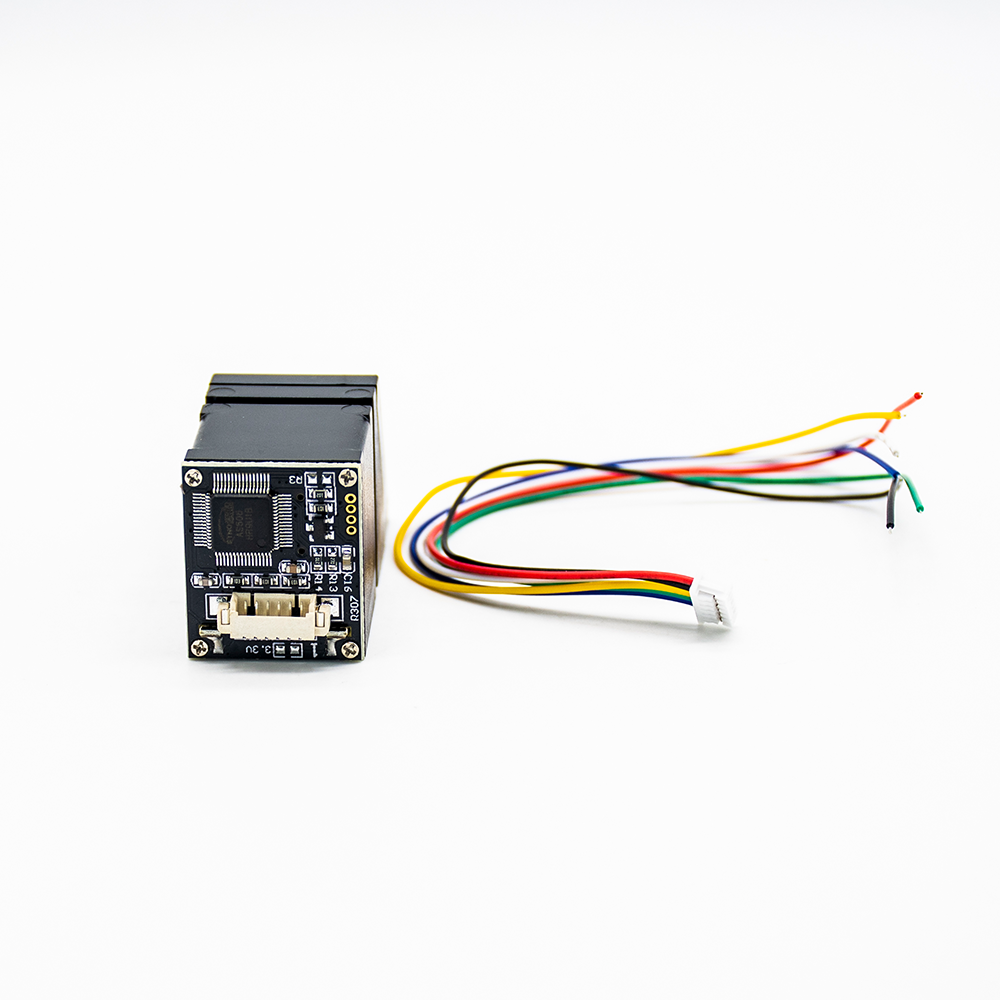

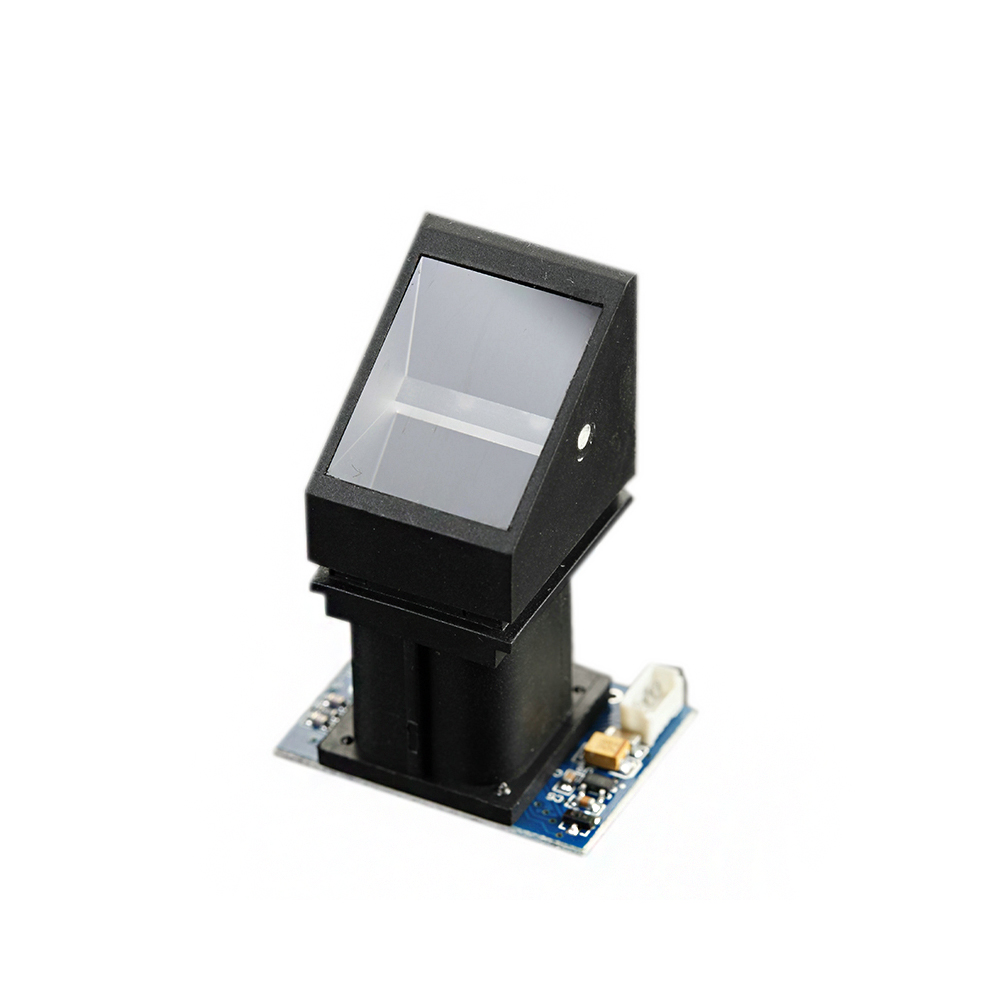

Elecbee R305 Manufacture Optical Biometric Fingerprint Access Control Sensor Module Scanner with 980 Storage Capacity



1. Integrated image collecting and algorithm chip together, ALL-in-One

2. Fingerprint reader can conduct secondary development, can be embedded into a variety of end products

3. Users can conduct secondary development, can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks

4. Low power consumption, low cost, small size, excellent performance

5. Professional optical technology, precise module manufacturing technics

6. Good image processing capabilities, can successfully capture image up to resolution 500 dpi

7. Connect to any microcontroller or system with TTL serial, and send packets of data to take photos, detect prints, hash and search.

8. Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on. We don't provide technical support for development.

9. Provide User Manual .





1. Fingerprint capacity:

The storage capacity of R305 fingerprint module is 980.

2. Description of interface:

R307 fingerprint module has RS232 and USB2.0 at the same time.USB2.0 interface can connect to the computer;RS232 interface is TTL level, and the default baud rate is 57600, which can be changed. Please refer to the communication protocol.It can be connected with microcontroller, such as ARM, DSP and other equipment with serial port, and the microcontroller of 3.3v and 5V can be connected directly.When connecting to the computer, please pay attention to the level conversion, such as the MAX232 circuit.

3. Module detection

After the fingerprint module is powered on, the fingerprint collection window will flash, indicating that the self-test is normal. If it does not flash, please carefully check the power supply, whether it is connected backwards or wrongly.The chip has some heat when working normally, this is normal phenomenon, the product has passed strict test, can rest assured to use.





Model	R305
Type	Optical Fingerprint Module
Interface	USB,UART(RS232 TTL)
Resolution	508 DPI
Voltage	DC 4.2-6V
Fingerprint Capacity	980
Sensing array	300000 pixel
Fingerprint module size	55*32*21.5(mm)
Effective collection area	15 * 18 (mm)
Scanning Speed	< 0.2 second
Verification Speed	< 0.3 second
Matching Method	1:1; 1:N
FRR	≤0.1%
FAR	≤0.001%
Work environment	-20C ---50C
Work Humidity	10-90%
Anti-static capacity	15KV
Abrasive resistance intensity	1 million times
Communications baud rate (UART):	(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)
