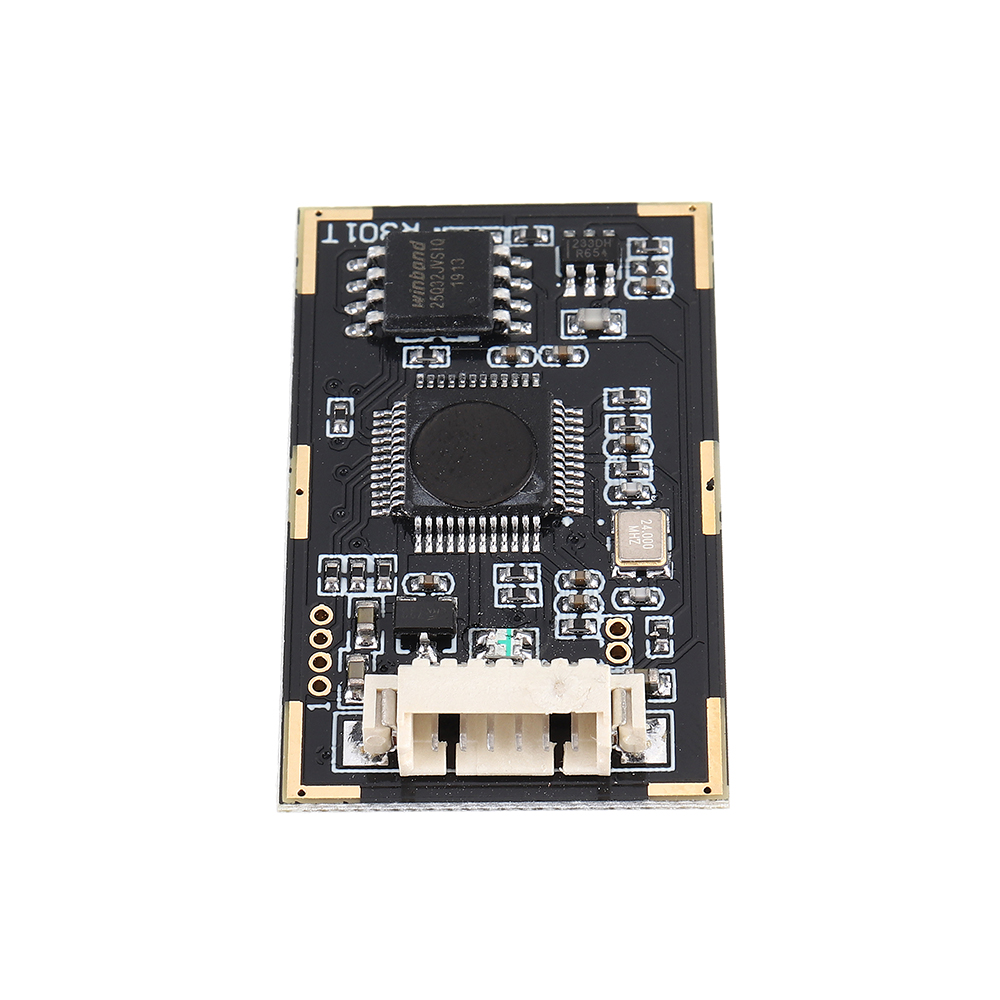

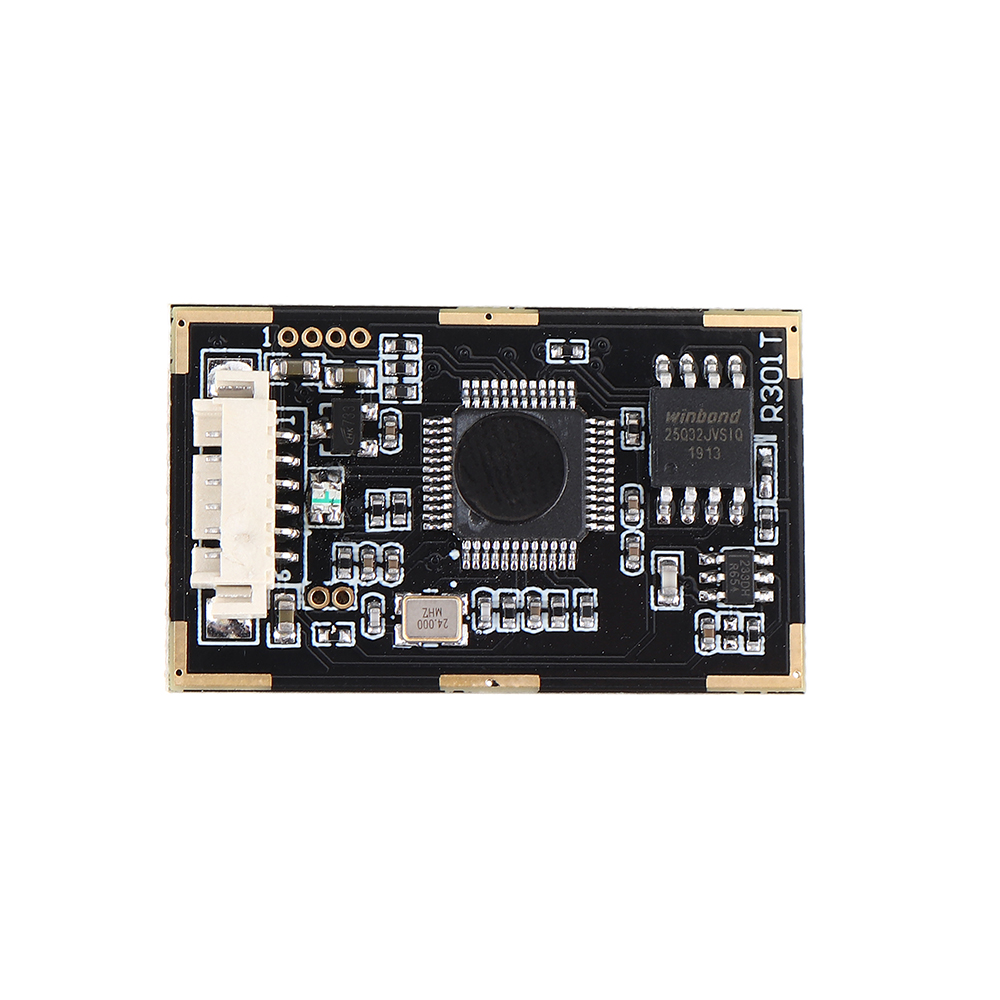

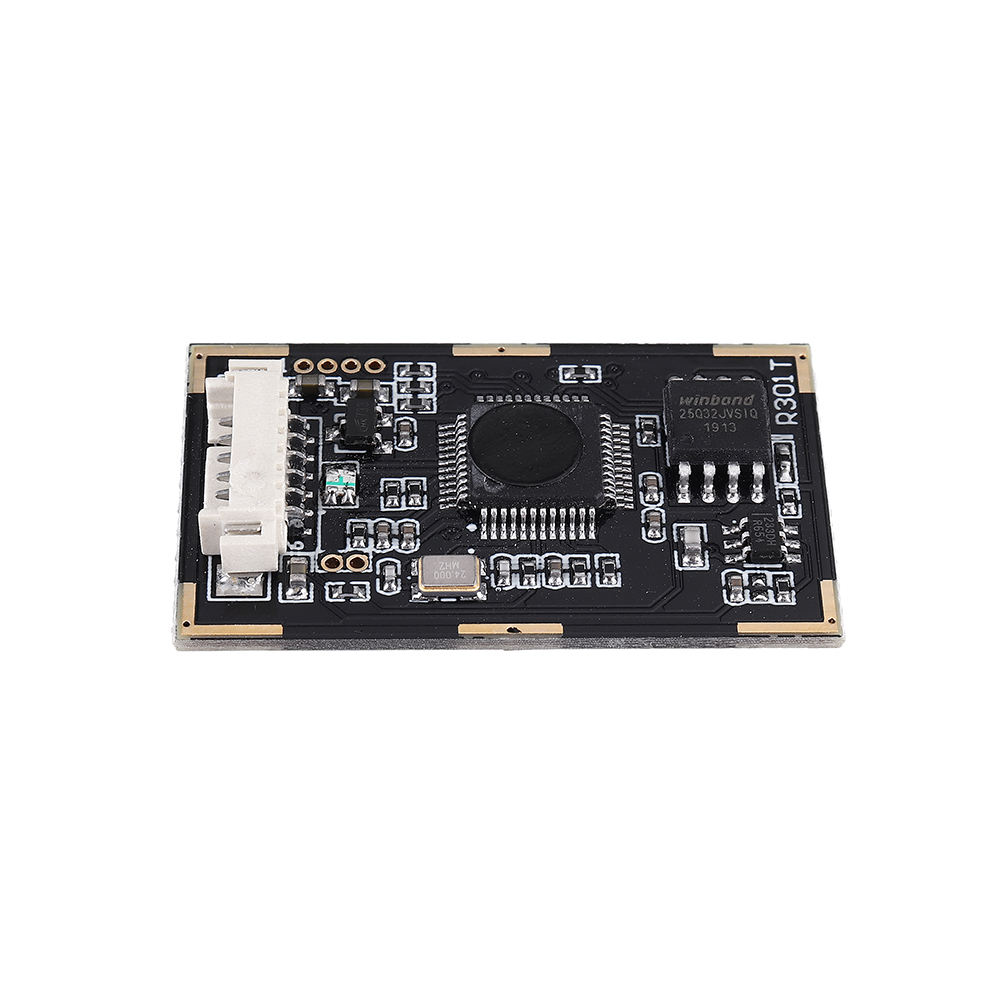

Elecbee R301T Capacitive Fingerprint Reader Access Control Module Sensor Scanner USB UART RS232 TTL 15KV
SKU: EB0046107
Favorites
Key Features
Show More
Description
Overview:
1. R301T capacitive fingerprint module adopts imported capacitor small-surface acquisition chip, integrated fingerprint algorithm chip, with fingerprint input, image processing, feature extraction, template generation, template storage, fingerprint comparison (1:1) or fingerprint search (1) :N) and other functions, suitable for fingerprint locks, fingerprint safes, fingerprint access control and other occasions.
2. In battery-powered applications, the touch-sensing power supply is DC3.3V-5V, and the current is about 5uA. It must be always powered. When there is a finger, it senses a low level, wakes up the MCU and powers up the fingerprint module, thus saving power. the goal of.
3.R301T can be used together with K200,K212,K215,K216 fingerprint control board.
3.R301T can be used together with K200,K212,K215,K216 fingerprint control board.
Specifications:
Supply voltage: DC 4.2--6.0V
Working current: 40mA (typical)
Peak current: 50mA
Fingerprint image entry time: <0.3 seconds

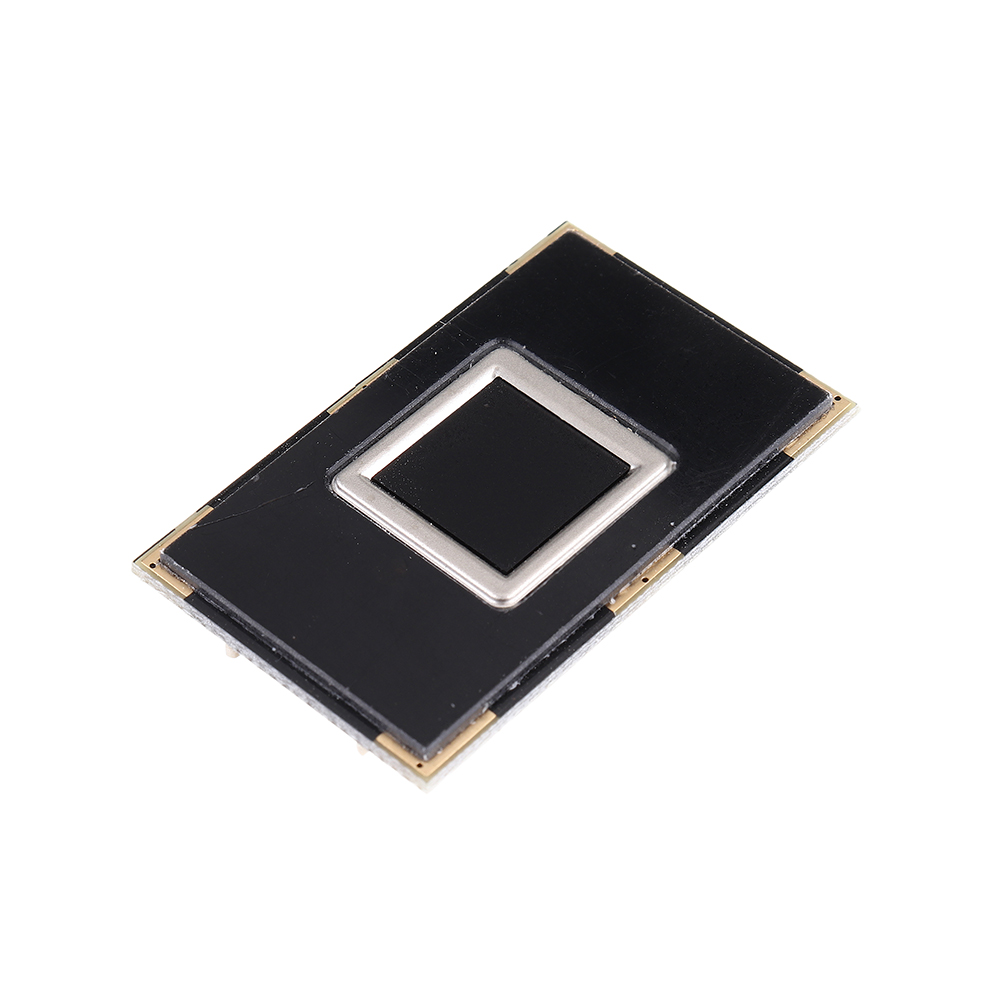

Acquisition window area: 10*10 mm
Image pixel: 192*192 pixel
Image resolution: 508dpi
Board size: 33.4*20.4 board thickness 1.0mm
Matching method:
Comparison method (1:1)
Search method (1:N)
Template file: 496 bytes
Storage capacity: 1700 pieces
Security level: five levels (low to high: 1, 2, 3, 4, 5)
Rejection rate (FRR): <1.0%
Search time: <0.3 seconds (1:1000 hours, mean)
Host computer interface: RS232 (TTL logic level, 3.3V), USB
Communication baud rate: (9600╳N)bps where N=1~12 (default value N=6, ie 57600bps)
working environment:
Temperature: -20 ° C - + 45 ° C
Relative humidity: 10% RH-85% RH (no condensation)
Storage environment:
Temperature: -40 ° C - + 55 ° C
Relative humidity: <85% H (no condensation)
Indicator Description:
When the fingerprint command is sent to the module, the blue light is on, and the acquisition command is continuously sent. The blue light is similar to long light.
Fingerprint entry succeeds or compares, blue light flashes
Fingerprint entry or comparison failed, the red light flashes.

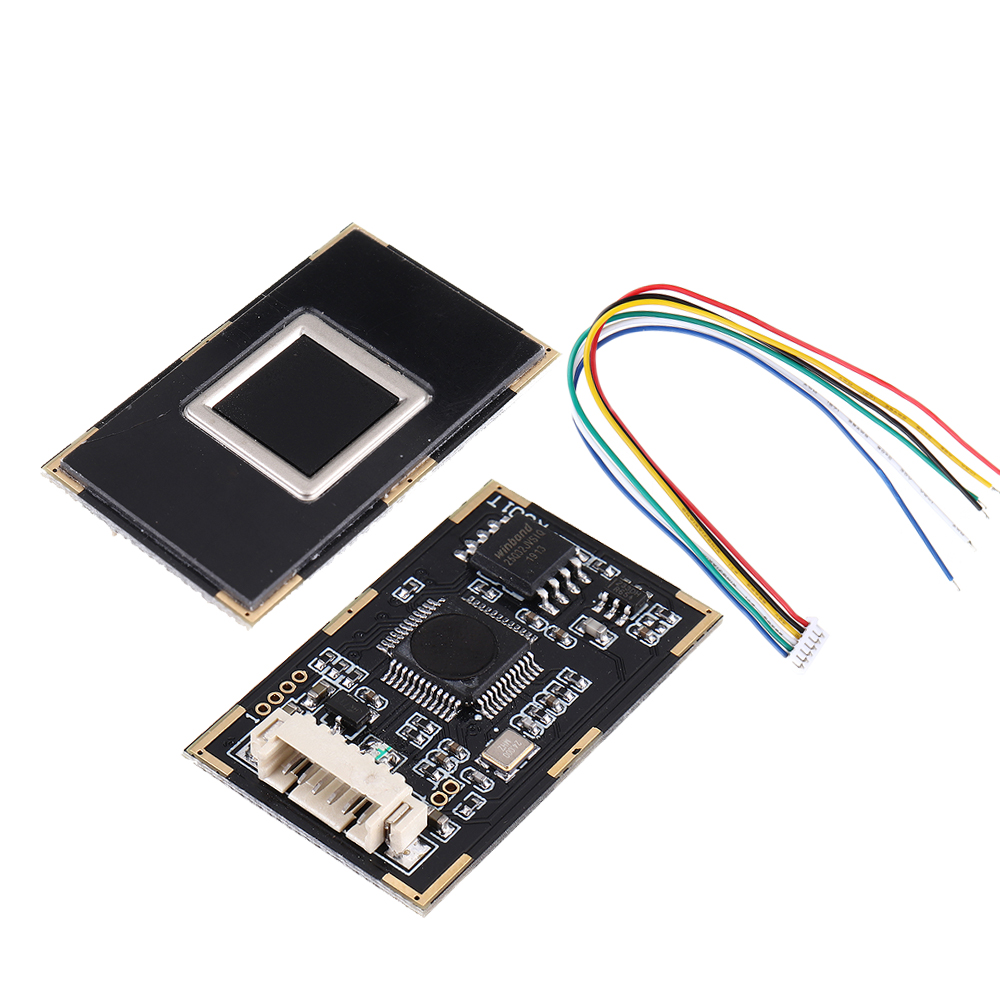

1 x R301T fingerprint module
1 x 6 core connection short line
