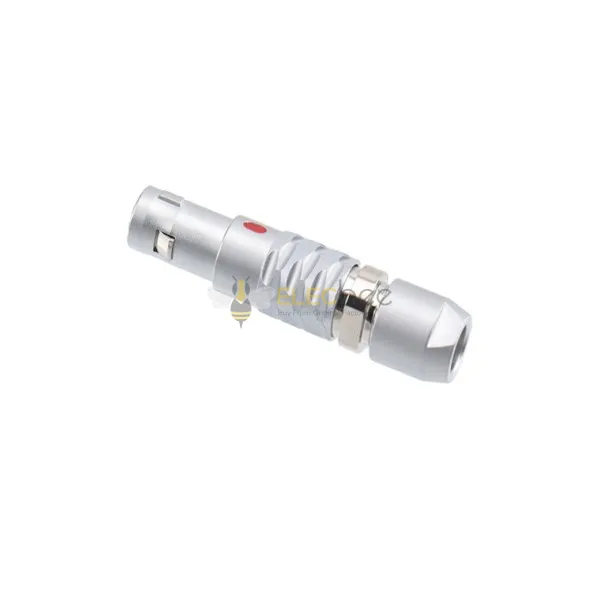

Elecbee Push Pull Self-Locking Connector B Series 1B TGG Straight plug Male 10Pin
SKU: EB-TGG.1B.310.CLAD52
Favorites
Key Features
- Quick push-pull self-locking for secure connections.
- IP50 waterproof rating ensures reliable performance.
- 10-pin 1B series with high-density space-saving design.
- 360° EMC shielding blocks electromagnetic interference.
- Multiple key options prevent incorrect mating.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male Pin
Shell Finish
Nickel Plated
Number of Positions
10 Pin
Operating Temperature
-55℃~+250℃
Shielding
Shielded
Ingress Protection
IP50
Rated Current
3.5A
Features
Waterproof
Connector Series
B
Color
Silver
Fastening Type
Push-on
Orientation
Straight
Shell Material
Copper Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Insulation Color
White
Shopping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
