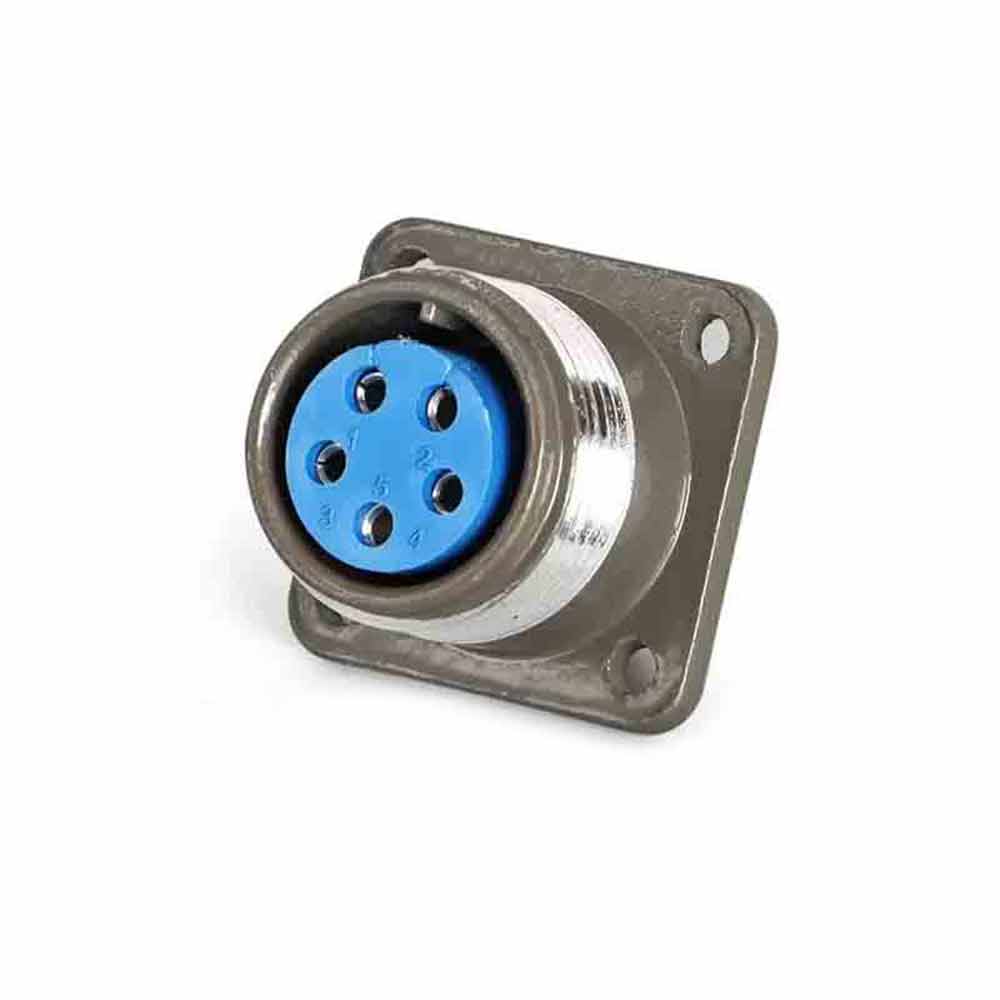

Elecbee P20 5-Core Female Socket Reverse Flange P20K9A Aviation Connector
SKU: EB-401-1047-L
Favorites
Key Features
- With anti-missing design
- good insulation performance
- stable working performance
- Simple structure, convenient user wiring
- Easy installation
- effective cost
Show More
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Female Pin
Shell Finish
Chrome Plated
Number of Positions
5 Pin
Operating Temperature
-20℃~+85℃
Rated Current
10A
Rated Voltage
150VAC
Features
Flange
Connector Series
P20
Color
Taupe
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated, Silver Plated
Insulating Materials
PBT
Cable Diameter
6mm~12.5mm
Shell Size
20
Insulation Color
Blue
