Elecbee Omni Long Antenna Dual Band 50 Ohm (9 dB, SureCall SC-100-L)

Omni Long Antenna covering Dual-Band 800 & 1900 MHz on 50 Ohm systems is an omni-directional antenna. It provides 9 dBi Gain on both 806 to 894 MHz band and 1850 to 1995 MHz frequency bandwidth. SureCall SC-100-L/ Cellphone-Mate CM-100-L purchase includes the mountinghardware for perfect attachment to a mast, antenna or existing pole. UPC: 896831002272.

Mount it upright for the best possible results. Ensure the antenna's chrome tip is pointed upwards while its fibreglass part is mounted unobstructed in virtually every direction atop the roof line. The dual band long antenna has an N-Female connector type, 50 Ohm impedance and weighs 11 oz.

SureCall SC100L or CM100L is a roof or wall mount antenna best for marine, RV or urban building installations. This antenna is omni-directional, a property that gives it an ability to collect signals generally from different sides. Therefore, you need not point it to any particular tower for it to work perfectly. Antenna's range stands at about 50 miles from an unobstructed tower.

For best results mount it upright. SureCall SC100-L or Cellphone-Mate CM100-L is compatible with a number of cables and amplifiers from SureCall, such as 4G boosters, RV boosters, accelerator kits, SOHO series of boosters, low coax cables as well as all in-building series of amplifiers on 50 Ohm system. It is very easy to install. It covers dual band frequencies as stated above. It is weather resistantant. It has an N-Female connector type.

Dual band omni-directional 50 ohm fiberglass antenna provides excellent signal boosting for cellular and wireless connectivity, providing a whopping 9 dB Antenna Reception Gain. Antenna includes a mounting kit, and can be set on walls or roofs. It is ideal for downtown settings, RVs, or marine installations, where signal strength is already reasonable at 3+ bars.

This Omni-directional antenna gathers signal from all sides, and does not need to be pointed at a cellular tower. It is easy to install, and weather resistant. Connectivity begins here. Omni-Directional Antenna - Dual Band Fiberglass Antenna (SureCall SC 100L/ Cellphone-Mate CM 100L).

From the manufacturer:

Summary.

• Outside use.
• Omni-directional.
• 9 dB Gain.
• 2G, 3G.
• Dual Band (800 & 1900 MHz).
• Weather resistant.
• Easy to install.

Overview.

This long omni-directional antenna is the best performing dual band antenna on the market. It is most often used with our dual band in-building amplifiers.

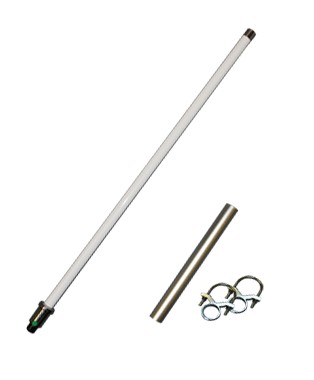

Cellphone-Mate CM100L or SureCall SC100L two band fiber-glass antenna is an omni-directional antenna that gathers signals from all sides and does not need to be pointed toward a cellular tower. Range of antenna is approximately 50 miles to, and from cellular towers (free of obstructions). Besides the antenna itself, parts include mounting equipment for either a flat horizontal surface or a wall. It should be mounted in an upright position for best results.

SureCall SC-100-L Specifications.

SureCall SC-100-L Antenna Set Up Instructions.

Step 1: Slide both mounting brackets over the mounting sleeve leaving them loose for the moment.

Step 2: Remove the plastic thread protector cap from the bottom of the antenna.

Step 3: Slide your coax cable (not included) through the mounting sleeve (with mounting brackets) and snugly hand tighten the coax cable connector onto the threads at the bottom of the antenna.

Step 4: Slip the mounting sleeve over the base of the antenna. Align the hole in the mounting sleeve with the screw hole in the antenna and fasten the two together using a small machine screw and washer.

Step 5: Space the mounting brackets as wide apart as possible on the mounting sleeve and (after ensuring that both brackets are facing the same direction) tighten the brackets using the set screws.

Step 6 (Pole mounting): Mount the entire assembly to a 1" to 2" diameter pole (not included) by placing the U bolts around the pole and tightening them through the holes in the mounting brackets using the nuts and washers. The antenna should be mounted with the chrome tip pointing toward the sky (perpendicular to the ground). For best results, the white fiberglass portion of the antenna should be mounted above the roof line and unobstructed in all directions.

Alternate Step 6 (flat vertical surface mounting): The antenna can be mounted to a flat vertical surface by replacing the U bolts with wood or metal screws (not included). For best results, the white fiberglass portion of the antenna should be mounted above the roof line and unobstructed in all directions. Secure the screws through the mounting brackets directly into the flat vertical mounting surface ensuring that the chrome antenna tip is pointed towards the sky (perpendicular to the ground).
