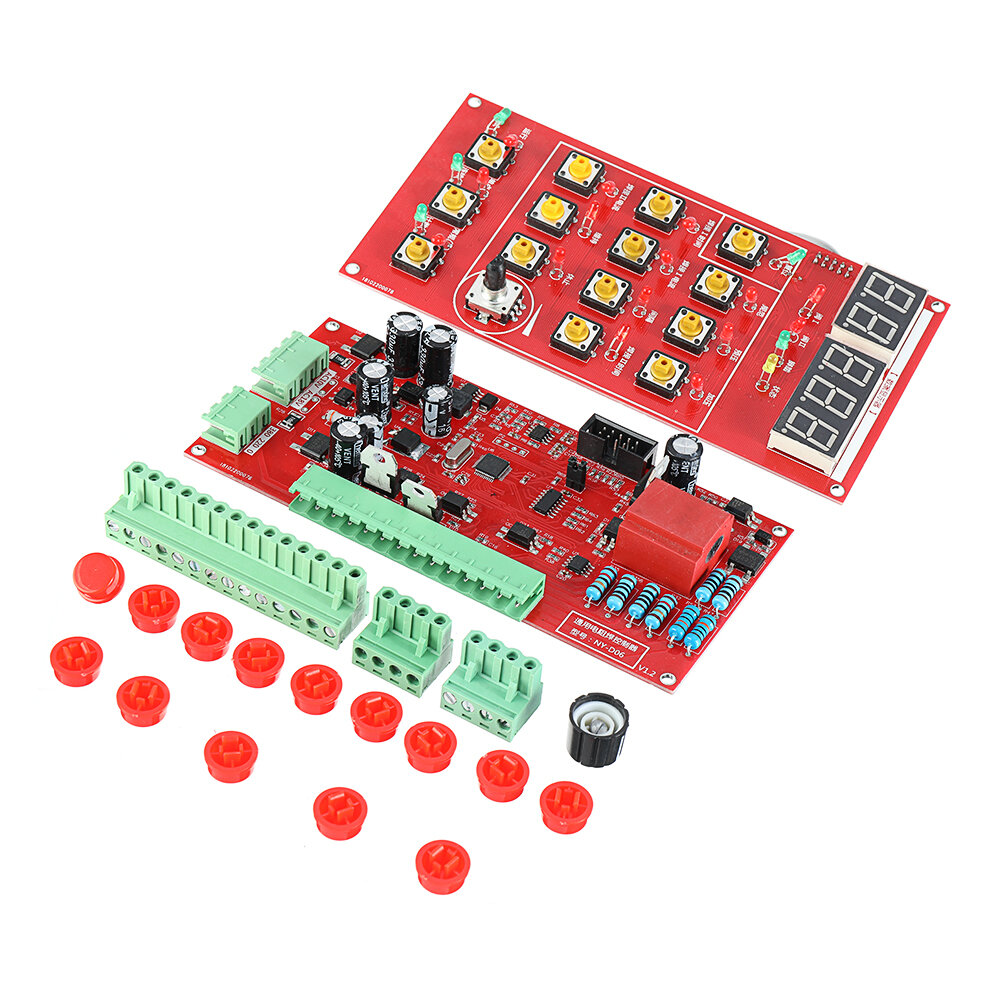

Elecbee NY-D06 Professional Pneumatic Spot-welder Controller Resistance Welding Controller Welding Machine Control

1. Up to 9 welding specifications

2. 9 stages of welding seque: precompression, pressure, welding I, interval, welding II, maintenance, and rest.

3. It has a production and counter with a counting range of 0-9999, which can be used to control production.

4. Voltage compensation, even if there are fluctuations in the power, it can guarantee the stable output of the current.

5. Data protection, once set, can be saved for 10 years.

6. Single spot welding and single bond switching for continuous welding

7. 2-way DC24V solenoid valve output control

8. With mechanical adjustment function, it is more convenient to adjust the machine.

9. All input and output are designed with isolation, strong anti-interference, safe and reliable, and ensure the stable work of the welder.

1. Adopt the net voltage sampling adjustment compensation, when the supply voltage change (-15%~+25%), the current change is less than 2%

2. Controller power consumption 25W

3. Sampling rate 1KHZ

4. Control response speed 1xa0

5. Precompression, pressure, welding I, interval, welding II, maintenance, rest time 0-250 weeks.

6. Welding I, welding II value 300~999,

7. The output accuracy is less than 2%

1. The product is designed for indoor use only, not for rain or splashing.

2. Do not use any metal impurities around the machine.

3. This product should be loaded into the control box.

1. When using this product, please read this manual carefully and operate the controller reasonably, so as to prevent accidental injury.

2. Non-professional personnel can not connect and debug the controller, but can not disassemble the controller and touch the internal circuit board.

3. Safe and reliable grounding of controller

4. When installing and overhauling, the power of the control box must be closed first.

5. When the connection is made, please use the national standard copper wire. No leakage or breakage is allowed. After the connection is finished, the connection parts need to be insulated.

6. Please connect strictly with the wiring diagram of this instruction, otherwise, there will be an unexpected danger.
