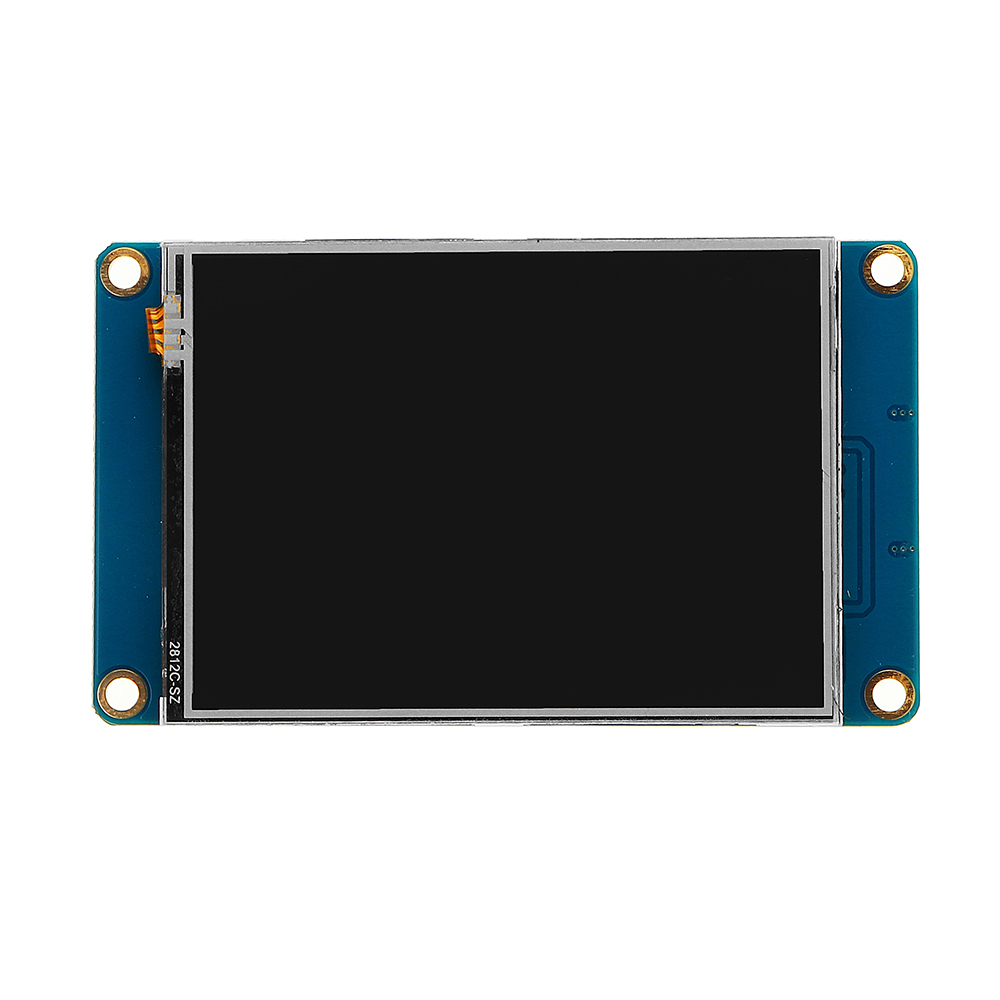

Elecbee NX3224T028 2.8 Inch HMI Intelligent Smart USART UART Serial Touch TFT LCD Screen Module
SKU: EB0050388
Favorites
Key Features
xa0
320 x 240 Resolution
RGB 65K true to life colours
TFT Screen with integrated 4-wire Resistive Touch Panelxa0

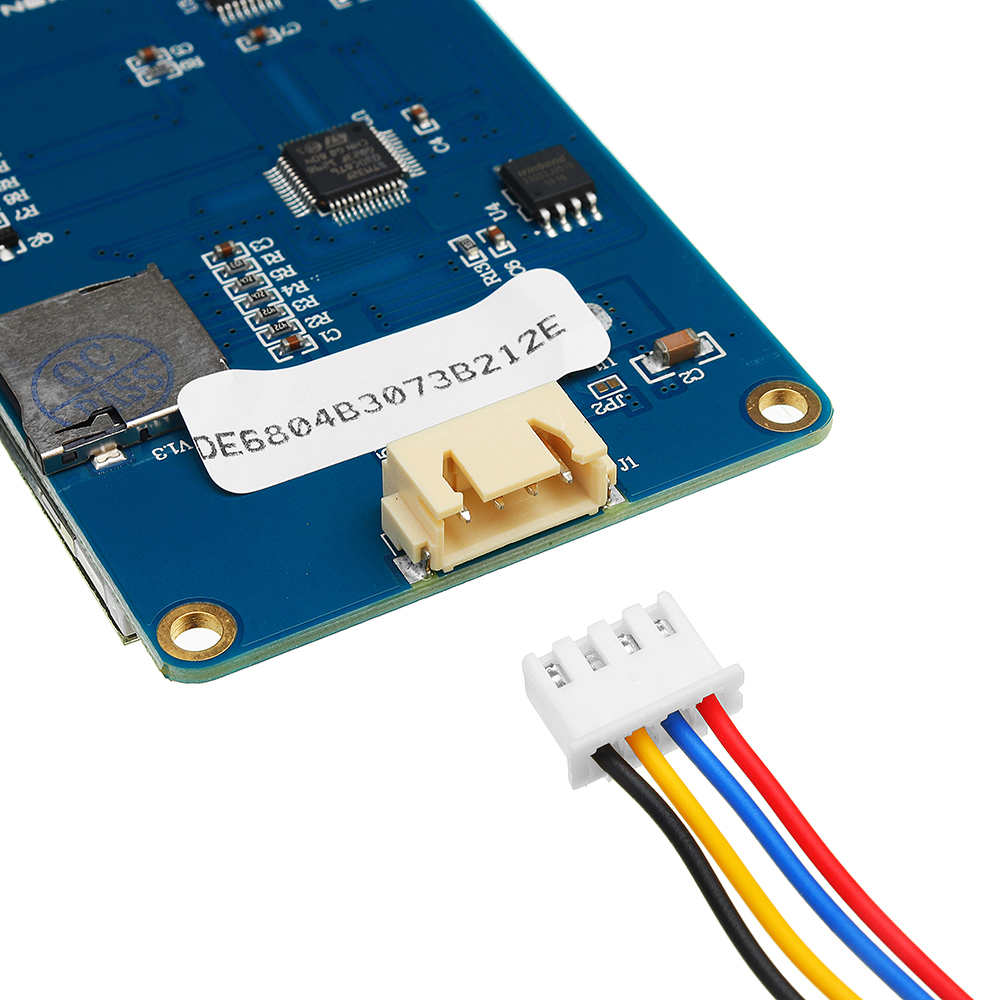

Easy 4 pin interface to any TTL Serial Host
4M Flash memory for User Application Code and Dataxa0
On board micro-SD card for firmware upgradexa0
Visual Area:57.6mm(L)×43.2mm(W)xa0
Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
5V65mA powerxa0consumption
Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2.
Powered directly off the Raspberry Pi, no external power supply is required
Generic using for all or Raspberry Pi project.
| Display Resolution | 320 * 240 |
| Display Interface | Serial |
| Screen Type | Touch Screen |
| Display Controller | No |
| TFT display interface | N/A |
| Display Size | 2.8’’ |

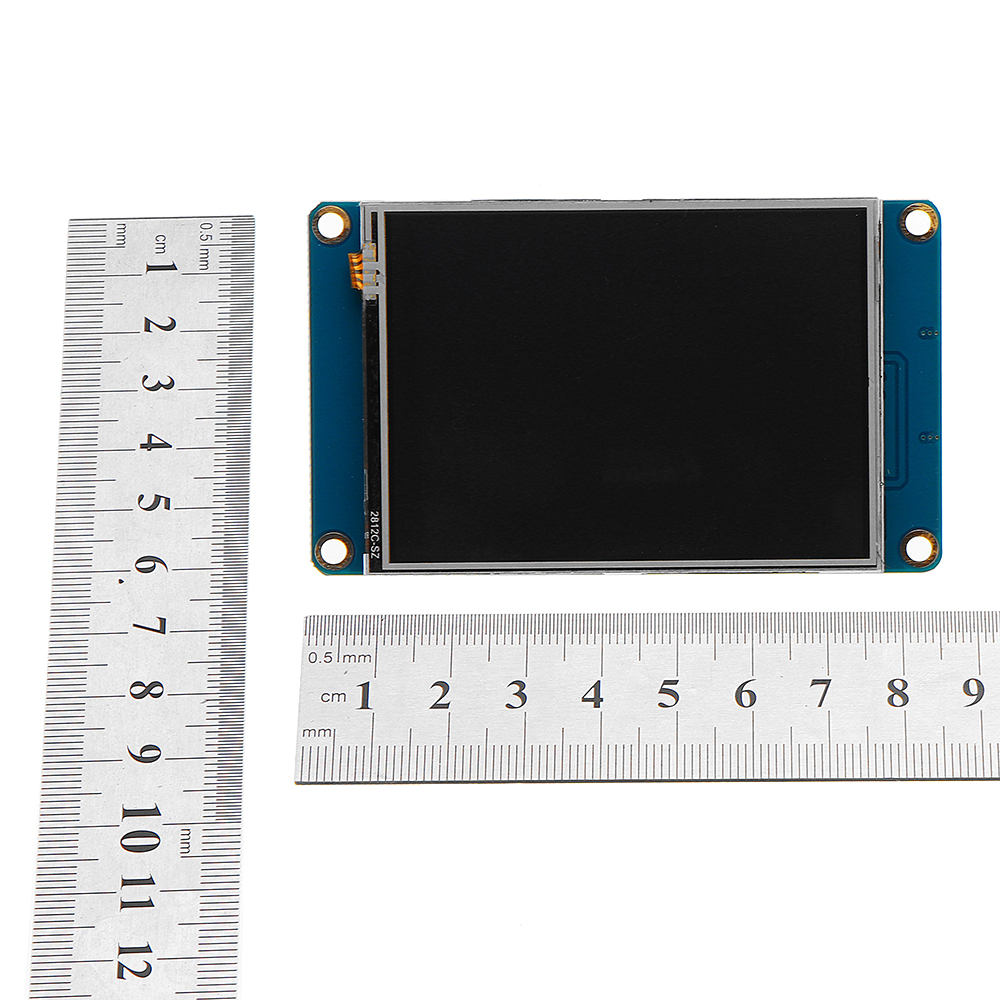

| Board Size | 85mm*49.8mm |
| Expand | SD Card Socket Touch Screen |
| Weight | 71g |

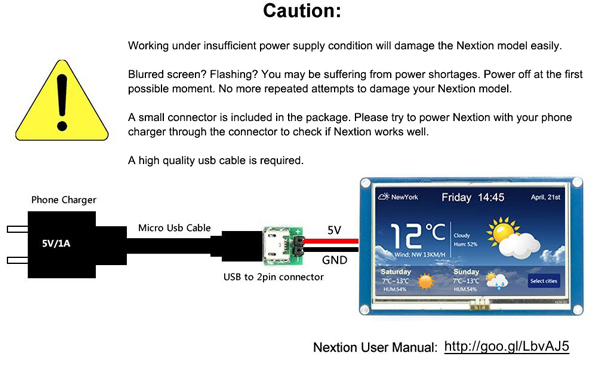

Note:xa0
there are a small power supply test board and a wire for you to test if the electricity supply is enough or not.xa0
Please see below image how to use it.
Show More
Discontinued
Qty.
1
Unit Price
$ 37.99
Ext. Price
$ 37.99
$ 37.99
Qty.
Unit Price
Ext. Price
10+
$36.09
$ 360.90
20+
$34.19
$ 683.80
100+
$30.39
$ 3039.00
Description
Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.
Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.
NX3224T028 is a powerful 2.8'' HMI, which is member of Nextion family. Features include: a 2.8" TFT 320x240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.

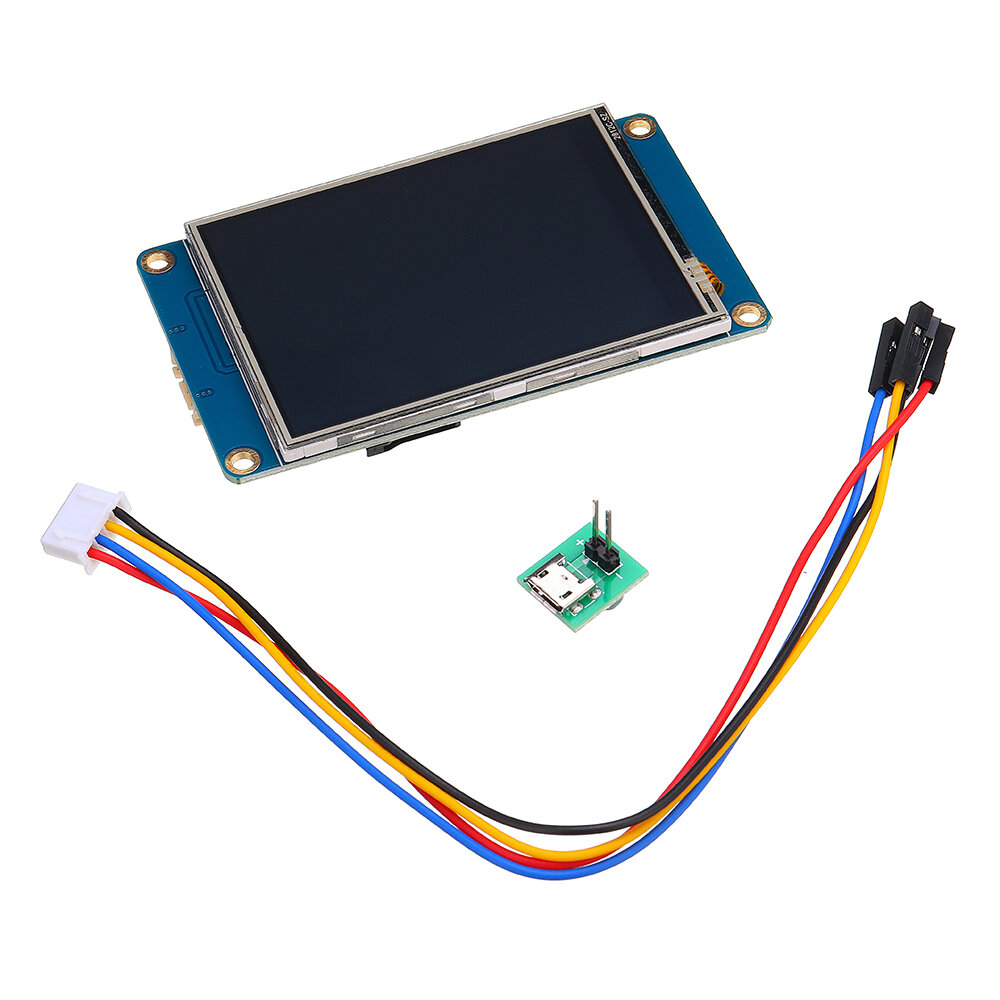

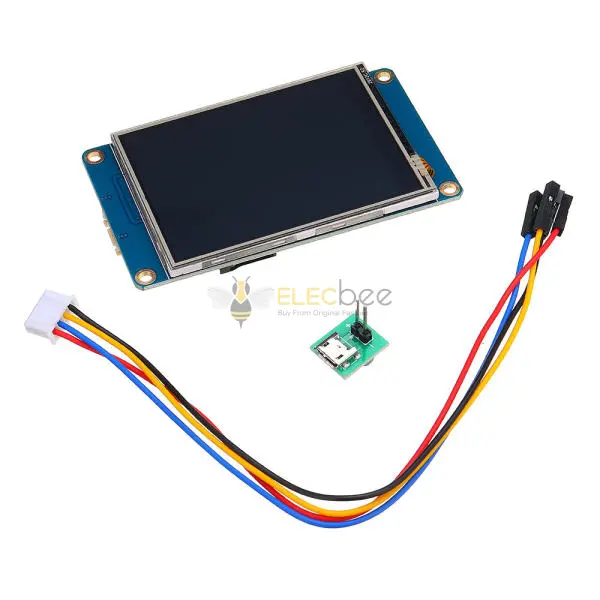

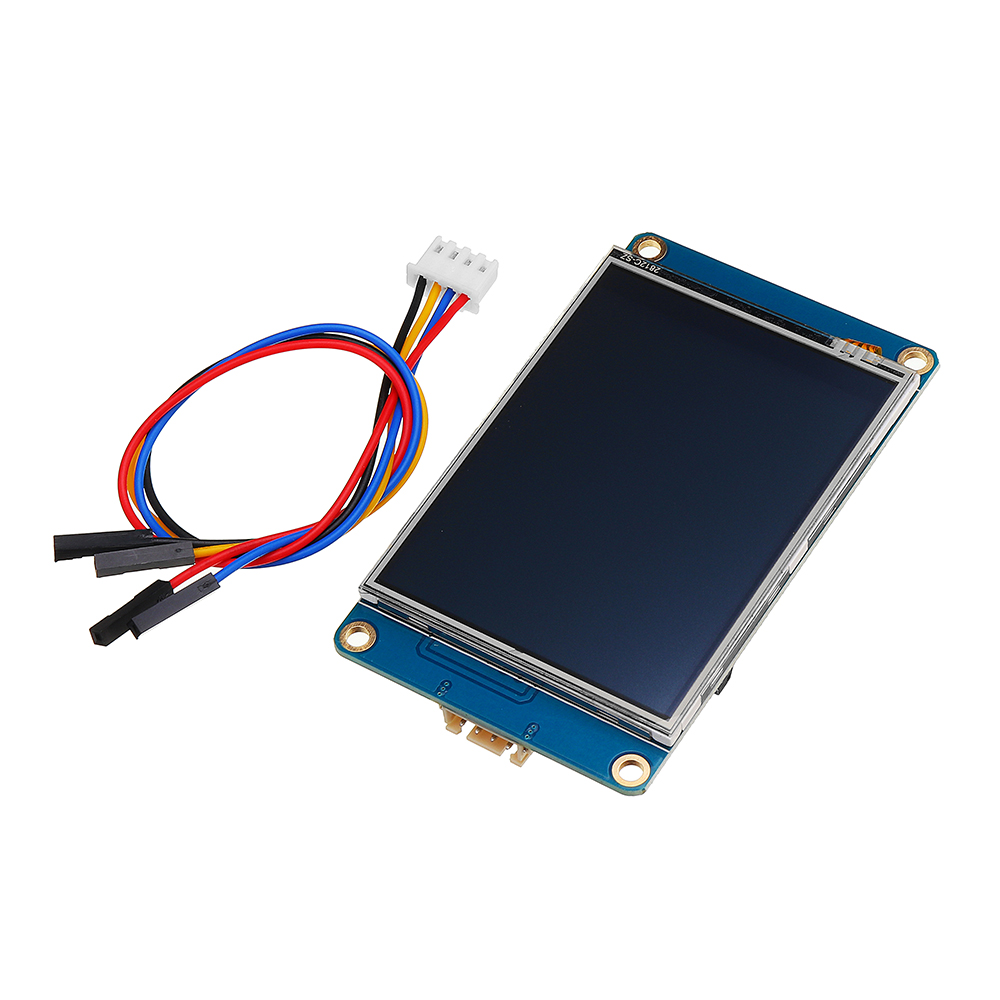

1 x 2.8 Inch Nextion HMI Intelligent Smart USART UART Serial Touch TFT LCD Screen Module For Raspberry Pi Kits
